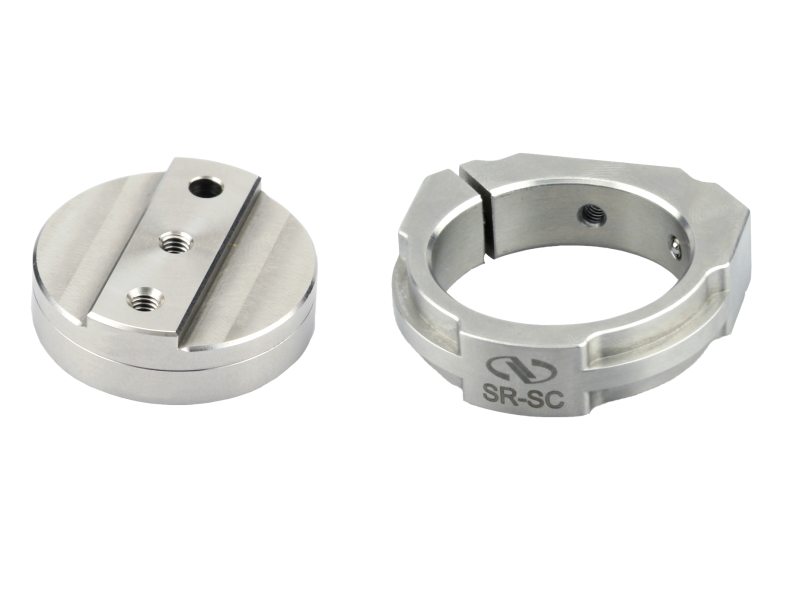

These stainless steel adapters offer options for mounting components onto the top of or along the height of a 1.5 in. (38.1 mm) diameter optical rod. The SR-ADP mirror mount adapter with a counterbored thru hole and threaded mounting holes allows rod-mounting of components at non-standard heights. The SR-SC sliding clamp can mount a mirror mount at any angle and height to a 1.5 in. optical rod, and when used with the "V"-grooved
$74.00
In Stock
Product Series Overview
The (M-) SR-ADP Mirror Mounting Adapter features a 1/4-20 (M6) threaded hole in the center of the bottom and directly mounts to 1.5 in. optical posts or pedestals. Its top side has a counterbored thru hole and two threaded mounting holes accepting opto-mechanical components with threaded (i.e. SN100-F) or thru-holes. The scribed line around the diameter of the adapter is to set height when being used with the Q-XE-RA-1 to center optical axis height of a mirror mount being used within the Q-OC-1 Cube.
