EQ Series Manual Stage 90 Degree Angle Brackets

Products
Features
Contact Us

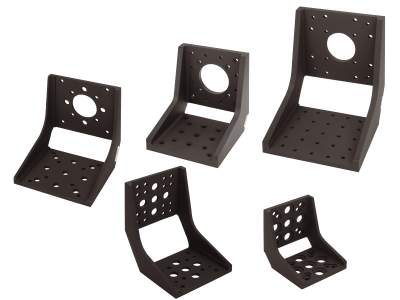

eq series 90 degree angle brackets with multiple angle bracket sizes shown

Overview

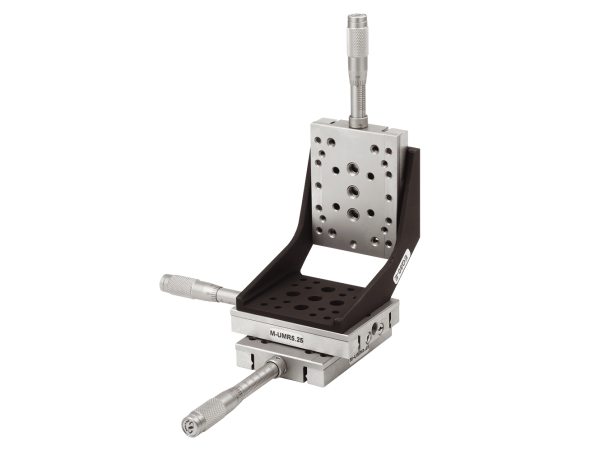

EQ Series Angle Brackets are made with an open-corner design to allow more mounting space, easier access to adjustments, and longer travel ranges for stages. They are compatible with UMR and/or UTR Series stages for assembling multi-axis positioners. These right-angle brackets are available in either an exterior or interior model, for a building X-Z and X-Y-Z motion control in a wider variety of configurations.

Open-corner design allows more mounting space
Two styles available for mounting on exterior or interior of bracket
90° angle brackets for mounting UMR and UTR stages orthogonally

See All Features

Products

Showing 10 of 10 total products

Compatibility:

Show entries

Search:

Compare	Model		Type	Material	Thread Type	Use	Availability	Price	Brand

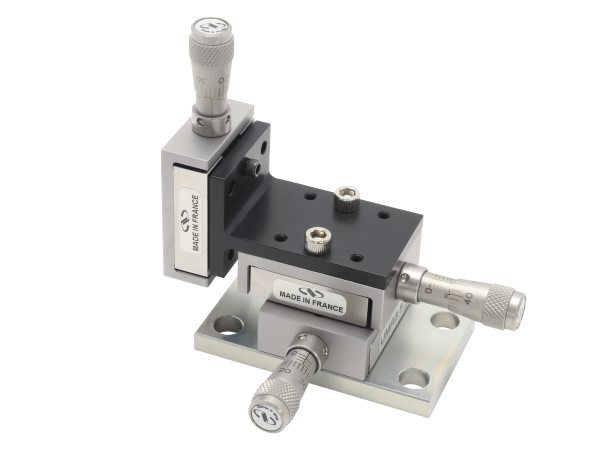

339232 Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01 $116.00 In Stock	339232 Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01	1.0	90° Open Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	In Stock	$116.00	Newport

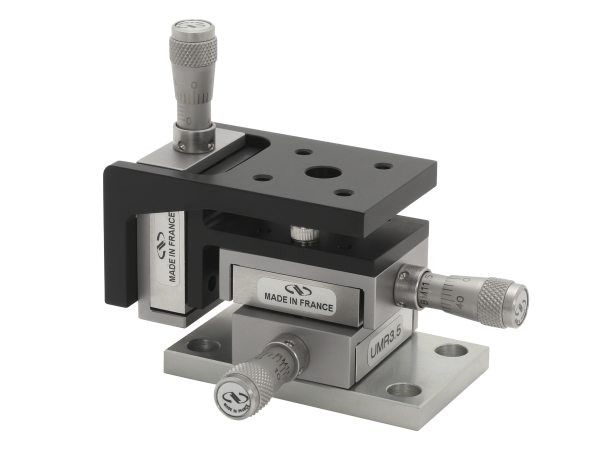

339233 Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02 $104.00 In Stock	339233 Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02	2.0	90° Closed Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	In Stock	$104.00	Newport

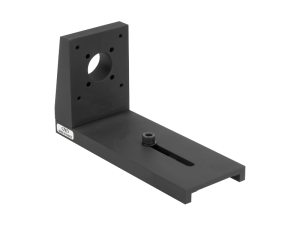

EQ50-E Outer Bracket, Compatible with UMR5 Stages $145.00 In Stock	EQ50-E Outer Bracket, Compatible with UMR5 Stages	3.0	90° Outer Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	In Stock	$145.00	Newport

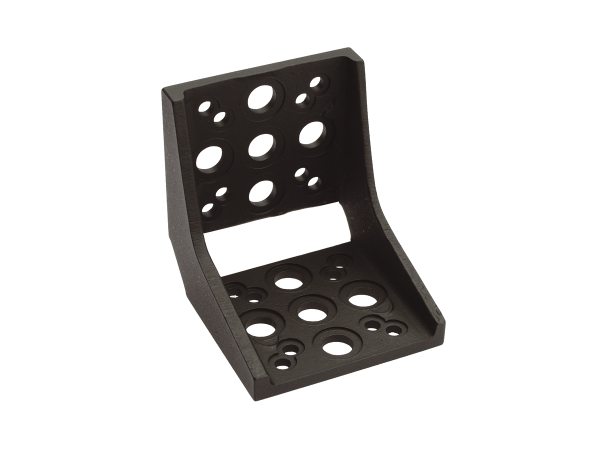

EQ50-I Inner Bracket, Compatible with UMR5 Stages $122.00 In Stock	EQ50-I Inner Bracket, Compatible with UMR5 Stages	4.0	90° Inner Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	In Stock	$122.00	Newport
EQ80-E Outer Bracket, Compatible with 80 mm Stages $165.00 In Stock	EQ80-E Outer Bracket, Compatible with 80 mm Stages	5.0	90° Outer Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	In Stock	$165.00	Newport
EQ80-I Inner Bracket, Compatible with 80 mm Stages $145.00 In Stock	EQ80-I Inner Bracket, Compatible with 80 mm Stages	6.0	90° Inner Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	In Stock	$145.00	Newport
EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages $286.00 In Stock	EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages	7.0	90° Outer Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	In Stock	$286.00	Newport
EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages $221.00 In Stock	EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages	8.0	90° Inner Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	In Stock	$221.00	Newport
M-EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages, Metric $286.00 In Stock	M-EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages, Metric	9.0	90° Outer Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	In Stock	$286.00	Newport
M-EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric $221.00 In Stock	M-EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric	10.0	90° Inner Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	In Stock	$221.00	Newport

Showing 1 to 010 of 10 entries

Previous1Next

Features

Cast Aluminum for Strength & Machined for Accuracy

Each bracket is cast from aluminum and then precision machined to ensure flat interfaces and accurate angles.

Inner or Outer Mounting Configurations

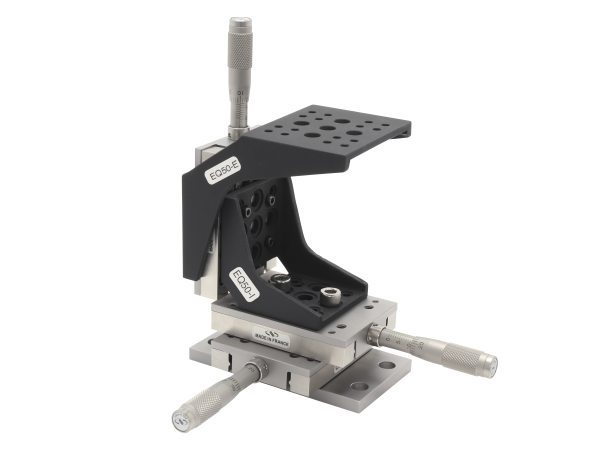

For each of the three sizes of EQ Series Right Angle Brackets available, there are two configurations offered. UMR series stages (UMR5, UMR8 and UMR12) can be vertically mounted either on the inner side of an outer bracket ("-E" models) facing towards the XY stage, or on the outside of an inner bracket ("-I" models) and facing away.
