Overview

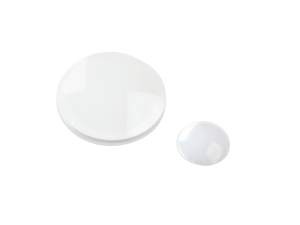

Our 650-1000 nm anti-reflection coated precision polished aspheric lenses are computer-optimized to achieve diffraction limited optical performance over high numerical apertures without requiring multiple elements. This may be used to reduce weight, complexity and cost for optical systems.

650-1000 nm anti-reflection coating
L-BAL 35 (589/611) substrate material
Computer optimized to provide diffraction limited performance
Low f-numbers for optimal light gathering and focusing

See All Features

Products

Showing 16 of 16 total products

Compatibility:

Show entries

Search:

Compare	Model	Lens Shape	Diameter	Effective Focal Length (EFL)	F/#	Availability	Price	Brand
KPA10AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 22.5 mm EFL, 650-1000 nm $378.00 In Stock	KPA10AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 22.5 mm EFL, 650-1000 nm	Plano-Convex Aspheric	15.0 mm	22.5 mm	1.5	In Stock	$378.00	Newport
KPA11AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 18.75 mm EFL, 650-1000 nm $370.00 In Stock	KPA11AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 18.75 mm EFL, 650-1000 nm	Plano-Convex Aspheric	15.0 mm	18.8 mm	1.3	In Stock	$370.00	Newport
KPA12AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 15.0 mm EFL, 650-1000 nm $378.00 In Stock	KPA12AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 15.0 mm EFL, 650-1000 nm	Plano-Convex Aspheric	15.0 mm	15.0 mm	1	In Stock	$378.00	Newport
KPA13AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 11.25 mm EFL, 650-1000 nm $399.00 In Stock	KPA13AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 15 mm, 11.25 mm EFL, 650-1000 nm	Plano-Convex Aspheric	15.0 mm	11.3 mm	0.8	In Stock	$399.00	Newport
KPA14AR.16 Polished Aspheric Lens, Bi-Convex, L-BAL35, 20 mm, 20.0 mm EFL, 650-1000 nm $414.00 In Stock	KPA14AR.16 Polished Aspheric Lens, Bi-Convex, L-BAL35, 20 mm, 20.0 mm EFL, 650-1000 nm	Bi-Convex Aspheric	20.0 mm	20.0 mm	1	In Stock	$414.00	Newport
KPA15AR.16 Polished Aspheric Lens, Bi-Convex, L-BAL35, 20 mm, 15.0 mm EFL, 650-1000 nm $441.00 In Stock	KPA15AR.16 Polished Aspheric Lens, Bi-Convex, L-BAL35, 20 mm, 15.0 mm EFL, 650-1000 nm	Bi-Convex Aspheric	20.0 mm	15.0 mm	0.8	In Stock	$441.00	Newport
KPA16AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 25 mm, 37.5 mm EFL, 650-1000 nm $427.00 In Stock	KPA16AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 25 mm, 37.5 mm EFL, 650-1000 nm	Plano-Convex Aspheric	25.0 mm	37.5 mm	1.5	In Stock	$427.00	Newport
KPA17AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 25 mm, 31.25 mm EFL, 650-1000 nm $425.00 In Stock	KPA17AR.16 Polished Aspheric Lens, Plano-Convex, L-BAL35, 25 mm, 31.25 mm EFL, 650-1000 nm	Plano-Convex Aspheric	25.0 mm	31.3 mm	1.3	In Stock	$425.00	Newport

Showing 1 to 08 of 16 entries

Previous1 2Next

Show All

Specifications

Lens Type

Precision Polished Aspheric Lens
Antireflection Coating

650-1000 nm
Coating Type

NIR Multilayer
Coating Code

AR.16
Damage Threshold

7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Lens Material

L-BAL 35 (589/611)

Surface Quality

60-40 scratch-dig
Surface Accuracy

0.75 µm RMS
Diameter Tolerance

+0.0/-0.1 mm
Center Thickness Tolerance

±0.1 mm
Clear Aperture

90% of central diameter

Features

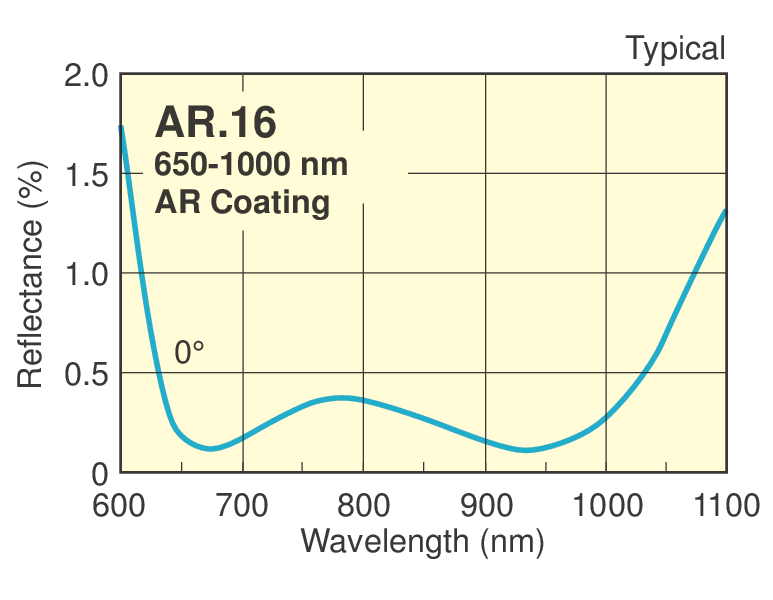

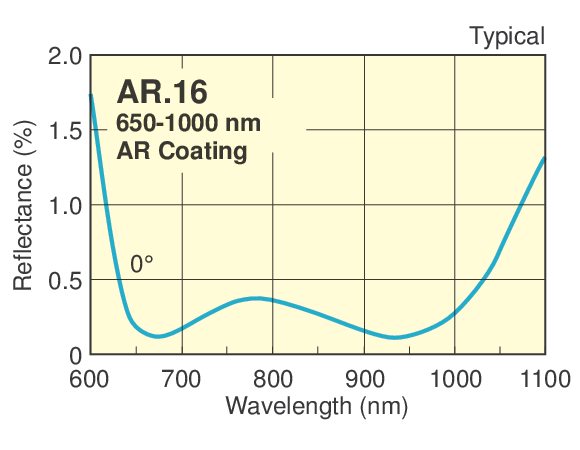

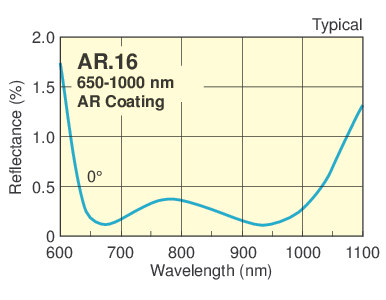

Broadband Multilayer NIR Antireflection Coatings

Our broadband AR.16 antireflection coating improves the transmission efficiency of these lenses by reducing surface reflections over a 650-1000 nm wavelength range. The NIR AR multi-layer coating improves the performance over uncoated surfaces. It features a damage threshold of 7.5 J/cm‌² for 10 ns pulses at 10 Hz and 1064 nm.

Advantages of Aspheric Lenses

In applications that require large acceptance angles, such as light gathering for illumination, spherical lenses are unsuitable due to spherical aberration, or the effect of refractive power of a spherical surface becoming greater with increasing aperture. Aspheric lenses maintain constant focal length or very high NA, avoiding the need for multiple elements to correct spherical aberration. This simplifies system design by reducing weight and component count. It also results in less transmission loss, and less ghosting due to having fewer surfaces. The primary drawback of an aspheric lens is off-axis performance is poor. This is not a problem for coupling to and from optical fibers or collimating light sources, but aspheric lenses are not usable over a wide field of view.

Superior Light Collection

Our Aspheric Condenser Lenses provide higher numerical apertures (NA), larger apertures and lower f# ratios, when compared to standard spherical lenses. They are ideally suited for illumination applications, such as light collection and condensing, projection and detection. Examples include coupling light into and out of optical fibers, efficiently collecting output from optical sources, or focusing beams onto small high-speed detectors.

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
76.2 mm	(M- Model: M-LH-3A Fixed Lens Mount, 3.0 in. (76.2 mm) Diameter, M4 Thread, A-LINE $69.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts ) LH-3A Model: LH-3A Fixed Lens Mount, 3.0 in. (76.2 mm), 8-32 Thread, A-LINE $69.00 1 Week See Full Product Details Product Series Overview A-Line Fixed Lens Mounts	N/A	N/A	N/A
50.8 mm	(M- Model: M-LH-2A Fixed Lens Mount, Ø2.0 in. (50.8 mm), M4 Thread, A-LINE $36.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts ) LH-2A Model: LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE $36.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts LH-2N Model: LH-2N Lens Mount, Insertable, 50.8 mm Diameter, A-LINE $42.00 In Stock See Full Product Details Product Series Overview A-Line™ Insertable Fixed Lens Mounts	LT20-05 Model: LT20-05 Lens Tube, 2 inch LT Series, 1/2 inch length $36.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT20-10 Model: LT20-10 Lens Tube, 2 inch LT Series, 1 inch length $39.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT20-20 Model: LT20-20 Lens Tube, 2 inch LT Series, 2 inch length $42.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT20-30 Model: LT20-30 Lens Tube, 2 inch dia. LT Series, 3 inch length $47.00 In Stock See Full Product Details Product Series Overview Lens Tubes	LP-2A Model: LP-2A Precision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z $1,088.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-2A-XY Model: LP-2A-XY Precision Lens Positioner, 2.0 in. Diameter, 100 TPI XY $702.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-2A-XYZ Model: LP-2A-XYZ Precision Lens Positioner, 2.0 in., 100 TPI XY, 80 TPI Z $785.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners	N/A
38.1 mm	(M- Model: M-LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, M4 Thread, A-LINE $34.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts ) LH-1.5A Model: LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE $34.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts	LT20 lens tube with LH-2R1.5 Model: LH-2R1.5 Lens Adaptor, 2.0 in. Mount to 1.5 in. Diameter Lens, A-LINE $31.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts adapter	LP-2 lens positioner with LPLH-1.5T Model: LPLH-1.5T Optic Holder, 1.5 in. Diameter, 2.063-20 Thread, For LP-2A Series $97.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners adapter	N/A
25.4 mm	(M- Model: M-LH-1A Fixed Lens Mount, Ø1.0 in. (25.4 mm), M4 Thread, A-LINE $20.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts ) LH-1A Model: LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE $20.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts LH-1N Model: LH-1N Lens Mount, Insertable, 25.4 mm Diameter, A-LINE $29.00 In Stock See Full Product Details Product Series Overview A-Line™ Insertable Fixed Lens Mounts LH-1XY Model: LH-1XY XY Lens Mount, Insertable, 25.4 mm, A-LINE $185.00 In Stock See Full Product Details Product Series Overview A-Line Adjustable Optic Mounts LH-1TZ-A Model: LH-1TZ-A Fine Focusing Lens Mount, 1.0 in., Screw Drive, 8-32 and M4, A-LINE $230.00 In Stock See Full Product Details Product Series Overview A-Line Adjustable Optic Mounts LH-1TZ Model: LH-1TZ Fine Focusing Lens Mount, 1.0 in., Micrometer Drive, 8-32 and M4, A-LINE $258.00 In Stock See Full Product Details Product Series Overview A-Line Adjustable Optic Mounts	LT10-05 Model: LT10-05 Lens Tube, 1 inch LT Series, 1/2 inch length $20.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT10-10 Model: LT10-10 Lens Tube, 1 inch LT Series, 1 inch length $23.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT10-20 Model: LT10-20 Lens Tube, 1 inch LT Series, 2 inch length $24.00 In Stock See Full Product Details Product Series Overview Lens Tubes LT10-30 Model: LT10-30 Lens Tube, 1 inch LT Series, 3 inch length $36.00 In Stock See Full Product Details Product Series Overview Lens Tubes	LP-1A Model: LP-05A Precision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z $749.00 1 Week See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-1A-XY Model: LP-1A-XY Precision Lens Positioner, 1.0 in. Diameter, 100 TPI XY $600.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-1A-XYZ Model: LP-1A-XYZ Precision Lens Positioner, 1.0 in., 100 TPI XY, 80 TPI Z $722.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners	OC1-LH1-S Model: OC1-LH1-S Lens Mount, Standard, 1 in. Diameter, Optics Cage Plus $38.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Fixed Optic Mounts OC1-LH1 Model: OC1-LH1 Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus $24.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Fixed Optic Mounts OC1-LH1-TZ Model: OC1-LH1-TZ Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus, Requires OC1-TZ $56.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Adjustable Mounts OC1-LH1-XY Model: OC1-LH1-XY Adjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus $243.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Adjustable Mounts OC1-LH1-XYA Model: OC1-LH1-XYA Adjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus $285.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Adjustable Mounts OC1-LH1-XYC Model: OC1-LH1-XYC Adjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus $100.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Adjustable Mounts OC1-LH1-XYZ Model: OC1-LH1-XYZ Adjustable Lens Mount, Insertable, XYZ Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus $433.00 In Stock See Full Product Details Product Series Overview Optics Cage Plus Adjustable Mounts
12.7 mm	(M- Model: M-LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, M4 Thread, A-LINE $20.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts ) LH-0.5A Model: LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE $20.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts LH-05N Model: LH-05N Lens Mount, Insertable, 12.7 mm Diameter, A-LINE $26.00 In Stock See Full Product Details Product Series Overview A-Line™ Insertable Fixed Lens Mounts	LT05-05 Model: LT05-05 Lens Tube, 1/2 inch diameter lenses, 1/2 inch length $19.40 In Stock See Full Product Details Product Series Overview Lens Tubes LT05-10 Model: LT05-10 Lens Tube, 1/2 inch diameter lenses, 1 inch length $21.00 In Stock See Full Product Details Product Series Overview Lens Tubes	LP-05A Model: LP-05A Precision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z $749.00 1 Week See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-05A-XY Model: LP-05A-XY Precision Lens Positioner, 0.5 in. Diameter, 100 TPI XY $456.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners LP-05A-XYZ Model: LP-05A-XYZ Precision Lens Positioner, 0.5 in., 100 TPI XY, 80 TPI Z $544.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners	N/A
6.35 mm	LH-05DB Model: LH-05DB Mirror Mount, Fixed, 12.7 mm Diameter, 8-32 Thread, A-LINE $20.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Optic Mounts with LH-50R25 Model: LH-50R25 Lens Adaptor, 0.5 in. Mount to 0.25 in. Diameter Lens, A-LINE $23.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts adapter	LT05 lens tube with LH-50R25 Model: LH-50R25 Lens Adaptor, 0.5 in. Mount to 0.25 in. Diameter Lens, A-LINE $23.00 In Stock See Full Product Details Product Series Overview A-Line Fixed Lens Mounts adapter	LP-05 lens positioner with LPLH-25T Model: LPLH-25T Optic Holder, 0.25 in. Diameter, 0.875-20 Thread, For LP-05A Series $43.00 In Stock See Full Product Details Product Series Overview Precision Multi-Axis Lens Positioners adapter	N/A
