| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load |
|
$325.00 |
|
|||
|
BM11.5 Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load |
|
$202.00 |
|
|||
|
BM11.10 Micrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load |
1 Week
|
$219.00 |
|
|||
|
|
BM11.16 Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load |
|
$233.00 |
|
|||
|
BM11.25 Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load |
|
$245.00 |
|
|||
|
BM17.25 Micrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load |
|
$264.00 |
|
|||
|
BM17.51 Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load |
|
$304.00 |
|
|||
|
BM25.40 Micrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load |
|
$488.00 |
|
|||
|
BM25.63 Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load |
|
$617.00 |
|
|||
|
BM30.10 Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load |
|
$327.00 |
|
|||
|
BM32.80 Micrometer Head, Standard Resolution, 80mm Travel, 100 lb. Load |
|
$797.00 |
|

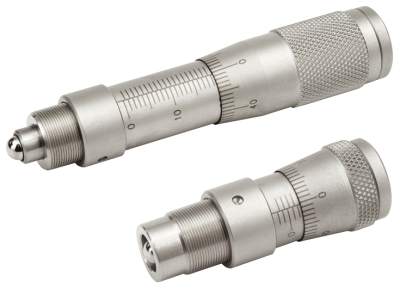

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.
The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.

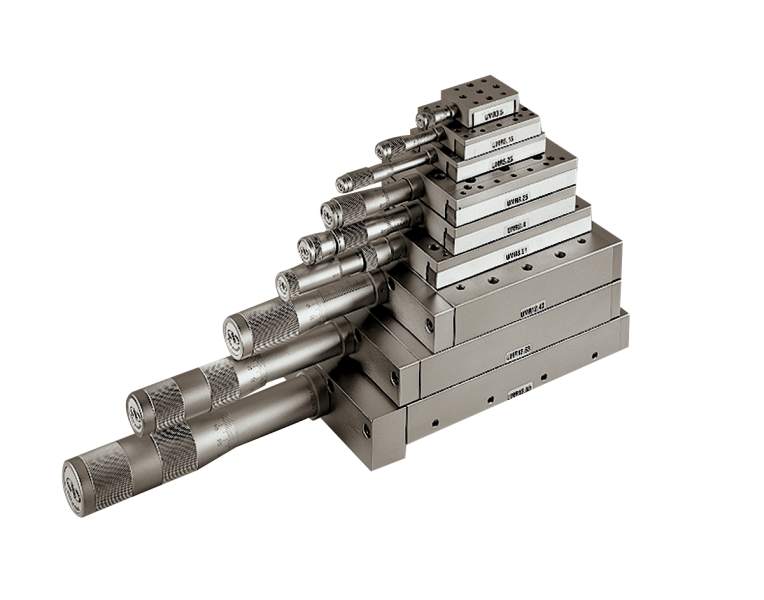

BM Series Micrometers are compatible with the following manual stages and mounts.
