| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
4646 Microlock Insert, Spare |
In Stock
|
$23.00 |
|
|||
|
4647 Microlock Cap, Spare |
In Stock
|
$14.60 |
|
|||
|
6749-1 Microlock Sleeve, 2 in. Thick Optical Breadboards |
3 Weeks
|
$61.00 |
|
|||
|
|
6749-5 Microlock Sleeve, 4 in. Thick Optical Breadboards | $101.00 |
|
||||
|
8673 Adjustment Tool, Microlock |
In Stock
|
$25.00 |
|
|||
|

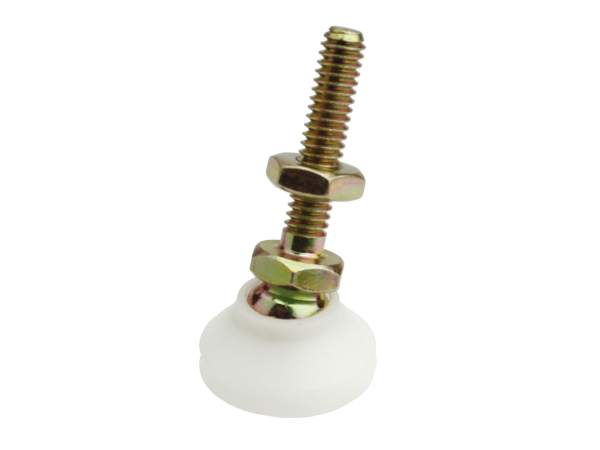

Microlock-FT Leveling Foot, 1/4-20 Thread, Microlock |
In Stock
|
$27.00 |
|

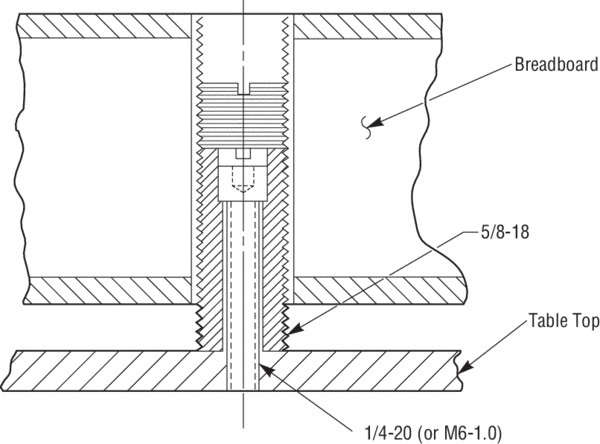

Microlocks are normally positioned 1/6 of the length/width dimension in from the edge of the breadboard, with an additional Microlock in the center of the boards with larger sizes. With metric mounting holes, the Microlock positions are adjusted slightly to place them directly between the ranks of mounting holes. This provides automatic alignment of the Microlocks with the mounting holes in the supporting table when both the breadboard and the table have the same type mounting holes.
Microlock mounting feet are available for free-standing applications. These high-load-capacity feet insert into the Microlocks and prevent the breadboard from scratching or marring the support surface.
