Specifications

  • Apex Angle
    LK10: 63.00°
    SB10: 69.06°
    SF10: 60.60°
  • Antireflection Coating
    Uncoated
  • Surface Quality
    40-20 scratch-dig
  • Surface Flatness
    ≤λ/10 at 632.8 nm over the clear aperture
  • Clear Aperture
    ≥90% of face
  • Size Tolerance
    +0/-0.25 mm
  • Chamfers
    0.5 mm face width
  • Chamfers Angle Tolerance
    45° maximum
  • Cleaning
    See How to Clean Optics

Features

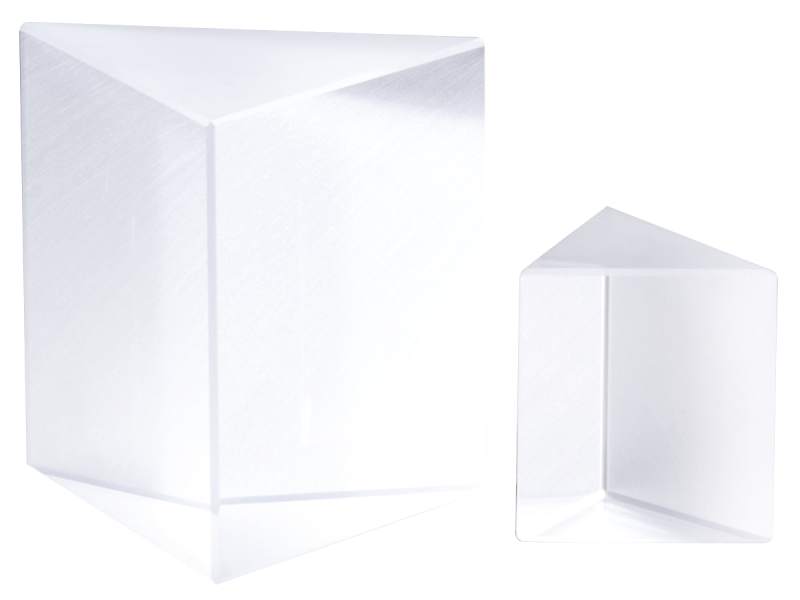

High Quality Brewster's Angle Prisms

The quality of the prism material, accuracy of the angle, and fabrication tolerances ultimately impact ultrafast laser performance. Newport's prisms are made from only precision quality material, with tightly toleranced prism angles, and λ/10 surface flatness. The prism apex angle is precisely fabricated at Brewster’s angle to minimize Fresnel losses.

UV Fused Silica Dispersing Prisms

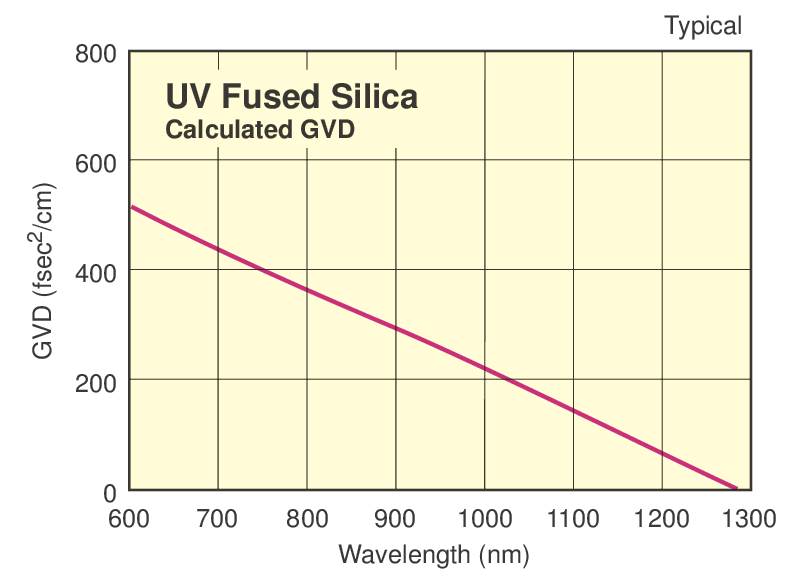

Fused silica prisms provide group velocity dispersion of 360 fsec2/cm at 800 nm.

LaK21 Optical Glass Dispersing Prisms

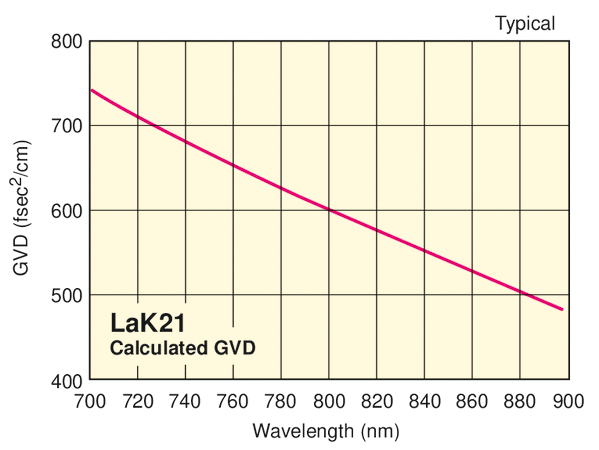

LaK21 glass prisms provide 600 fsec2/cm of second order dispersion at 800 nm.

SF10 Dispersing Prisms

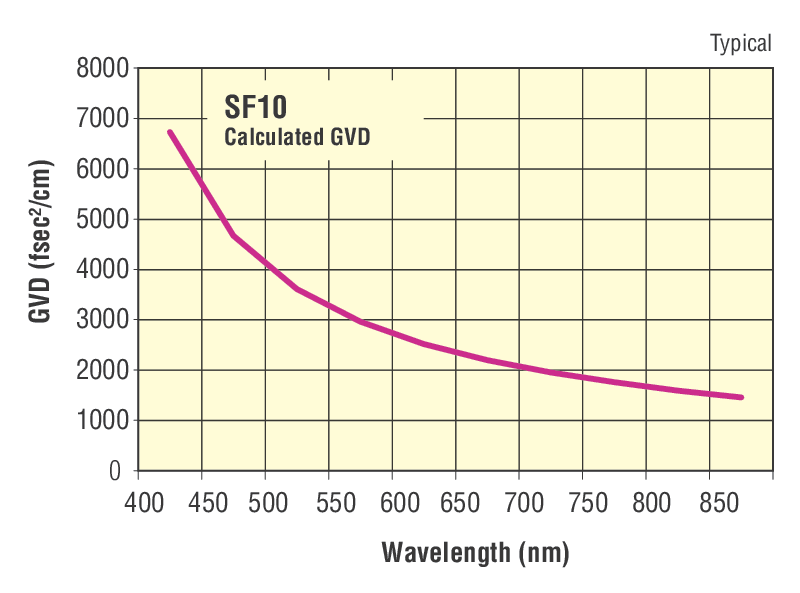

SF10 glass prisms provide group velocity dispersion of 1600 fsec2/cm at 800 nm.

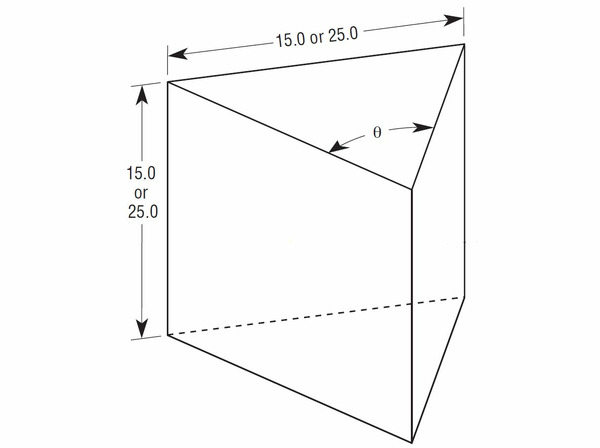

15 mm or 25 mm Sized Brewster Angle Prisms

Two sizes are available in each material: 25 mm and 15 mm. The 25 mm prism provides more material for light to propagate through and hence offers more flexibility when used for beam displacement. The 15 mm prism is ideal in environments with space constraints.

The Brewster Apex angle is dependent on material and is listed below.

Material Apex Angle
Fused Silica 69.06°
N-LaK21 63.00°
N-SF10 60.60°

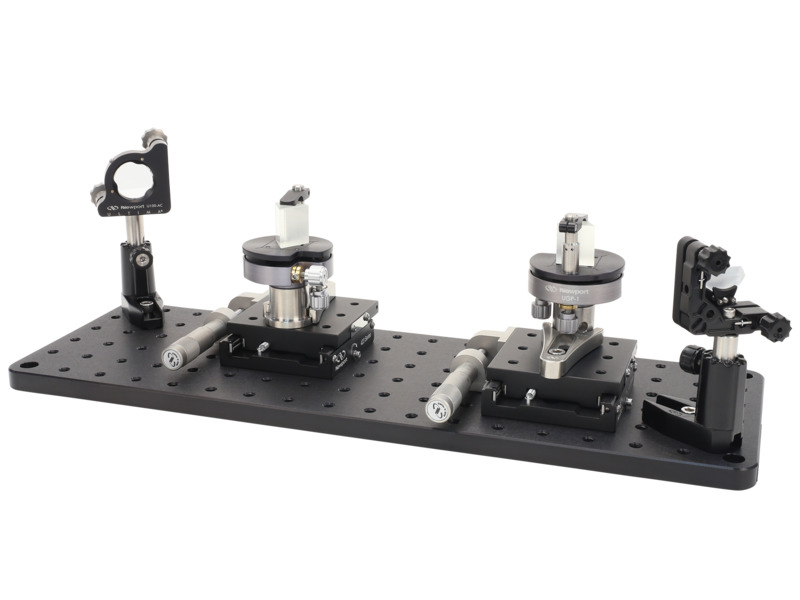

Prism Compressor for Ultrashort Pulses

Two identical Brewster Angle Prisms and a folding mirror are used to create an ultrafast prism compressor. Prisms are the optics of choice for intracavity dispersion compression. For more information on how to select the proper prism material and the associated calculations for compression, please see Application Note 29. See the parts list of the shown setup example below.

Part No Description Quantity
10SB10

Model: 10SB10

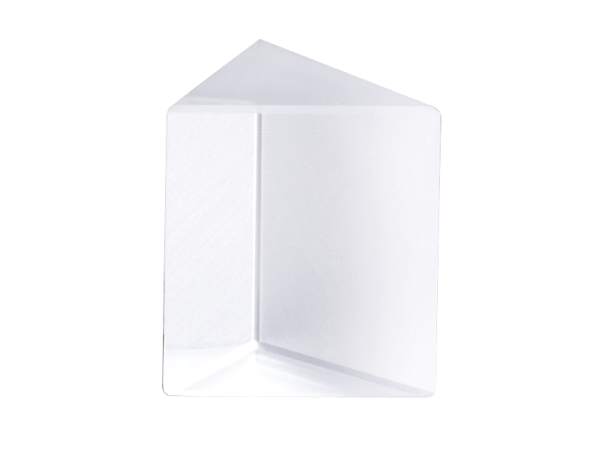

Brewster Angle Dispersing Prism, Ultrafast, UVFS, 25 mm, 185-2100 nm

$484.00
2 Weeks
Product Series Overview
Brewster Angle Dispersing Prisms for Ultrashort Pulses
25 mm UVFS Prism 2
UGP-1

Model: UGP-1

Gimbal Prism Mount, ULTIMA®, 1 in., 100 TPI Adjustment Screws

$448.00
In Stock
Product Series Overview
Gimbaled Three-Axis Optic Tilt Mounts
Ultima Gimbal Mount 2
PS-1

Model: PS-1

Optical Pedestal, 1.0 in. Height, 1.0 in. Diameter, 8-32 Thread

$29.00
In Stock
Product Series Overview
1.0 in. Optical Pedestals, Graduated Diameter
1.0 in. Optical Pedestal 2
PS-F

Model: PS-F

Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot

Sorry, this product is no longer offered for sale. The recommended replacement product is PS-F-1.0.

Product Series Overview
Pedestal Base Clamping Forks
Fork Clamp 2
423

Model: 423

Linear Stage, High-Performance, Low-Profile, 1.0 in. Travel, 1/4-20

$348.00
In Stock
Product Series Overview
Extended Range, Ball Bearing Stages
Linear Stage 2
SM-25

Model: SM-25

Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI

$163.00
Contact Us
Product Series Overview
SM Vernier Micrometer Heads
Vernier Micrometer 2
10D20ER.2

Model: 10D20ER.2

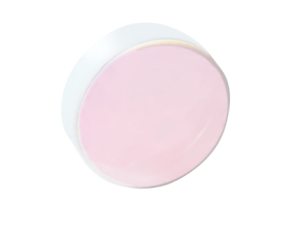

Silver Mirror, Borofloat, 25.4 mm, λ/10, 480-20,000 nm

$103.00
In Stock
Product Series Overview
Standard Borofloat 33 Metallic Mirrors
1.0 in. Silver Mirror 1
U100-A2K

Model: U100-A2K

Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs

$147.00
In Stock
Product Series Overview
ULTIMA® Clear Edge Mirror Mounts
Ultima Mirror Mount 1
10DD20ER.24

Model: 10DD20ER.2

D-shaped Mirror, Silver, Fused Silica, 25.4 mm, λ/10, 480-20,000 nm

$62.00
In Stock
Product Series Overview
D-Shaped Broadband Metallic Mirrors
D Shape Silver Mirror 1
M1-1D

Model: M1-1D

Mirror Mount, Lab Standard, EdgeGrip, 1.0 in., 2 Knob Actuators

$103.00
In Stock
Product Series Overview
M Series Clear Edge Mirror Mounts
Edge Grip Mirror Mount 1
SP-2

Model: SP-2

Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread

$6.20
In Stock
Product Series Overview
0.5 in. Optical Mounting Posts
0.5 in. Optical Post 2
BPH-2

Model: BPH-2

Optical Post Holder, Slotted-Base, 2.0 in. Height, 0.5 in. Posts

$13.50
In Stock
Product Series Overview
Non-Bridging Slotted-Base Optical Post Holders
Slotted Base Post Holder 2
