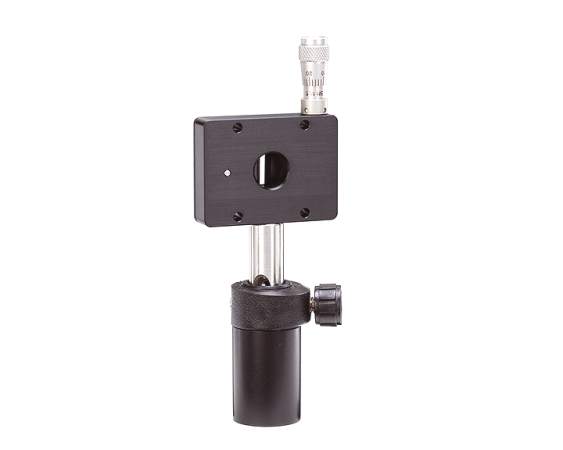

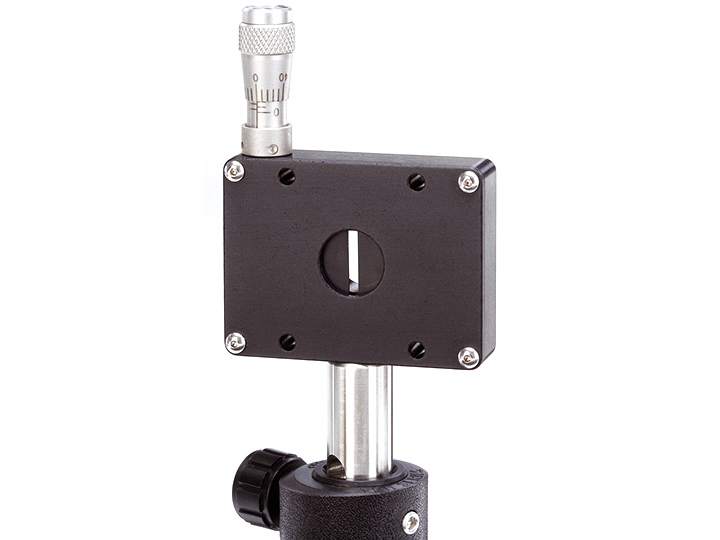

Our compact adjustable width slit provides precise micrometer-driven adjustment of two blades centered equally about a 0.5-inch (12.7 mm) through-hole. The slit width ranges from fully closed to 0.20 inch (5 mm) and is designed so that the micrometer reading corresponds to the actual slit width.
Slit width from fully closed to 0.20 in. (5 mm)
Micrometer reading corresponds to actual slit width
Additional CAD file downloads are not available for this product.
compact-adjustable-width-slit - Drawings
Additional drawings are not available for this product.
Features
Ideal for OEM Optical Assemblies
The slim profile of the mount and four face-plate mounting holes make it ideal for use with compact and OEM optical assemblies. An 8-32 (M4) threaded mounting hole located on the bottom of the unit is compatible with our standard mounting posts and pedestals.
