We’ve incorporated our Picomotor™ actuators with our crossed-roller-bearing translation stages to meet your demanding photonics applications. 0.5 inch travel Crossed-roller-bearing motorized stages provide smooth and accurate positioning for critical optical alignment applications such as fiber alignment and high-stability positioning in laser systems.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9066-X-P Motorized Linear Stage, Crossed-Roller Bearing, 0.5 in., 8-32 & 1/4-20 |
In Stock
|
$1,304.00 |
|
|||
|
9066-XY-PN XY Linear Stage, Crossed-Roller, 0.5 in., X Pico, Y Micro, 8-32, 1/4-20 | $1,759.00 |
|
||||
|
9066-XY-NP XY Linear Stage, Crossed-Roller, 0.5 in., Y Pico, X Micro, 8-32, 1/4-20 | $1,759.00 |
|
||||
|
9066-XY-PP Motorized XY Linear Stage, Crossed Roller Bearing, 0.5 in., 8-32, 1/4-20 | $2,488.00 |
|
||||
|

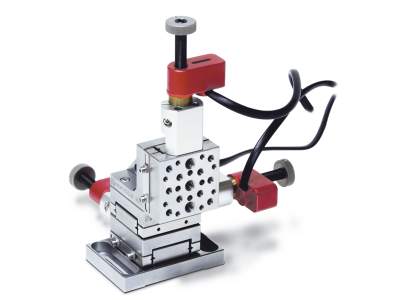

XYZ Linear Stage, Crossed-Roller, 12.7 mm, X Pico, YZ Micro, Imperial
$2,693.00
In Stock
|
9066-XYZ-PNN XYZ Linear Stage, Crossed-Roller, 12.7 mm, X Pico, YZ Micro, Imperial |
In Stock
|
$2,693.00 |
|
||
|
9066-XYZ-NPN XYZ Linear Stage, Crossed-Roller, 12.7 mm, Y Pico, XZ Micro, Imperial | $2,693.00 |
|
||||
|
9066-XYZ-NNP XYZ Linear Stage, Crossed-Roller, 12.7 mm, Z Pico, XY Micro, Imperial | $2,693.00 |
|
||||
|
9066-XYZ-PPN XYZ Linear Stage, Crossed-Roller, 12.7 mm, XY Pico, Z Micro, Imperial | $3,318.00 |
|
The included picomotor is model
$736.00
1 Week
Product Series Overview
The included micrometer is model 9352.
To ensure accurate linear travel, the stages use thermally matched, hardened-steel, crossed-roller bearings and high-precision reference surfaces. The result is a line of translation stages that offers an angular deviation of < 150 µrad in any axis and straight-line accuracy better than 3 microns as well as high load capacity and stiffness. Crossed Roller Bearings offer all of the advantages of ball bearings with higher load capacity and higher stiffness. This is a consequence of replacing the point contact of a ball with the line contact of a roller. Due to the averaging characteristics of line contacts, angular and linear deviations are generally below those found in ball bearings.
Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the crossed-roller bearing linear stage. The step size is dependent on the load with higher loads allowing for smaller minimum incremental motion.
Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.
The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.
