13E20DM.10 Elliptical Dielectric Mirror, 33.02 x 46.7 mm, λ/10, 1030-1090 nm |
In Stock
|
|
||||
|
|
13E20DM.11 Elliptical Mirror, 33.02 x 46.7 mm, 532 nm Dielectric Laser Line |
In Stock
|
|
||||
|
18E20DM.10 Elliptical Mirror, 46.7 x 66.04 mm, 1030-1090 nm Dielectric Laser Line |
In Stock
|
$402.00 |
|
| Models |
Overstock - Save 50%
In Stock
Product Series Overview
|
Overstock - Save 70%
In Stock
Product Series Overview
|
$402.00
In Stock
Product Series Overview
|
|---|---|---|---|
| Wavelength Range | 1030-1090 nm | 532 nm | 1030-1090 nm |
| Mirror Shape | Elliptical | Elliptical | Elliptical |
| Material | Borofloat® 33 | Borofloat® 33 | Borofloat® 33 |
| Surface Flatness | λ/10 at 632.8 nm | λ/10 at 632.8 nm | λ/10 at 632.8 nm |
| Clear Aperture | ≥central 80% of diameter | ≥central 80% of diameter | ≥central 80% of diameter |
| Reflectivity | Rs,Rp>99% @ 1030-1090 nm | Rs, Rp>99% @ 532 nm | Rs,Rp>99% @ 1030-1090 nm |
| Thickness | 9.4 mm | 9.4 mm | 12.5 mm |
| Thickness Tolerance | ±0.25 mm | ±0.25 mm | ±0.25 mm |
| Chamfers | 0.38–1.14 mm face width | 0.38–1.14 mm face width | 0.38–1.14 mm face width |
| Chamfers Angle Tolerance | 45° ±15° | 45° ±15° | 45° ±15° |
| Cleaning | See How to Clean Optics | See How to Clean Optics | See How to Clean Optics |

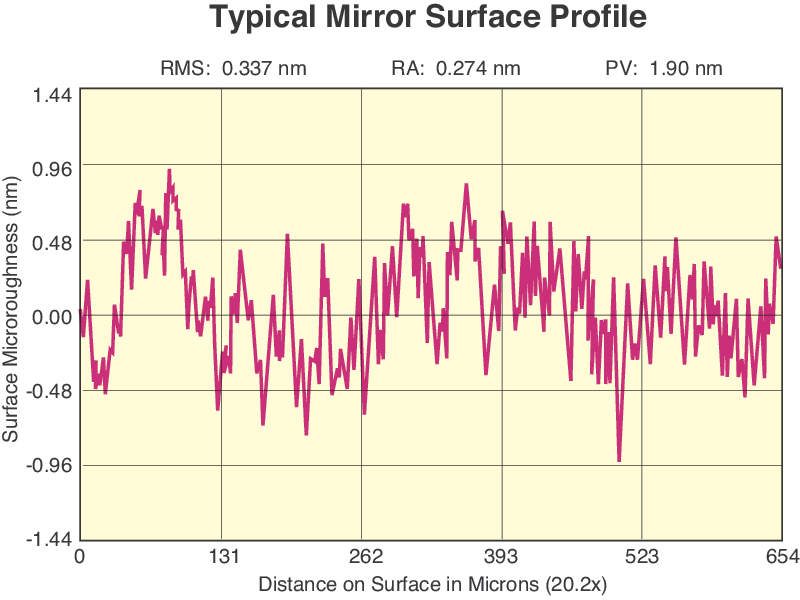

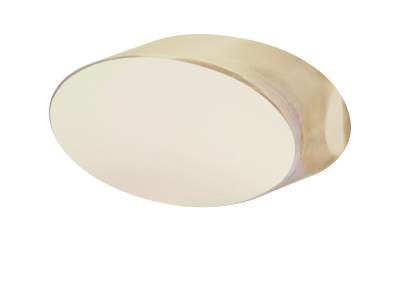

Elliptical mirrors are designed to present a circular mirror profile when mounted at a 45 degree angle. Round mirrors mounted at 45 degrees can't maintain a circular profile and may allow for parts of the beam to not be reflected. As a result elliptical mirrors are ideal for periscopes and other 45 degree beam routing applications.
Our DM.11 multilayer dielectric coating is optimized for the 2nd harmonic 532 nm Nd:YAG laser line. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
Our DM.10 multilayer dielectric coating is optimized for the 1064 nm fundamental harmonic Nd:YAG laser line. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.
All dielectric coating construction is physically more durable than standard metallic coatings. Dielectric mirrors are more resistant to humidity, thermal changes, abrasion and salt exposure. They can also withstand repeated cleaning.
