The F-ILP Series is based on integrating a high PER micro-polarizer in a rugged stainless steel package for high optical performance and stability. These products are designed for fiber optic networks and measurement applications.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
F-ILP-1-F-SP-FA Polarizer, 1310 nm, SM to PM, Pigtailed, FC/APC Connectors | $700.00 |
|
||||
|
|
F-ILP-1-F-SS-FA Polarizer, 1310 nm, SM to SM, Pigtailed, FC/APC Connectors |
In Stock
|
$525.00 |
|
|||
|
|
F-ILP-1-F-SS-FP Polarizer, 1310 nm, SM to SM, Pigtailed, FC/PC Connectors |
In Stock
|
$525.00 |
|
|||
|
Polarizer, 1310 nm, SM to PM, FC/APC Bulkhead Connectors[Discontinued]
$721.00
In Stock
|
F-ILP-1-N-SP-FA Polarizer, 1310 nm, SM to PM, FC/APC Bulkhead Connectors[Discontinued] |
In Stock
|
$721.00 |
|
||
|
|
F-ILP-1-N-SP-FP Polarizer, 1310 nm, SM to PM, FC/PC Bulkhead Connectors |
5 Weeks
|
$577.00 |
|
|||
|
|
F-ILP-2-F-PP-FP Polarizer, 1550 nm, PM to PM, Pigtailed, FC/PC Connectors |
In Stock
|
$840.00 |
|
|||
|
|
F-ILP-2-F-SP-FA Polarizer, 1550 nm, SM to PM, Pigtailed, FC/APC Connectors |
2 Weeks
|
$695.00 |
|
|||
|
|
F-ILP-2-F-SP-FP Polarizer, 1550 nm, SM to PM, Pigtailed, FC/PC Connectors |
In Stock
|
$680.00 |
|
|||
|
|
F-ILP-2-F-SS-FA Polarizer, 1550 nm, SM to SM, Pigtailed, FC/APC Connectors |
In Stock
|
$525.00 |
|
|||
|
|
F-ILP-2-F-SS-FP Polarizer, 1550 nm, SM to SM, Pigtailed, FC/PC Connectors |
In Stock
|
$470.00 |
|

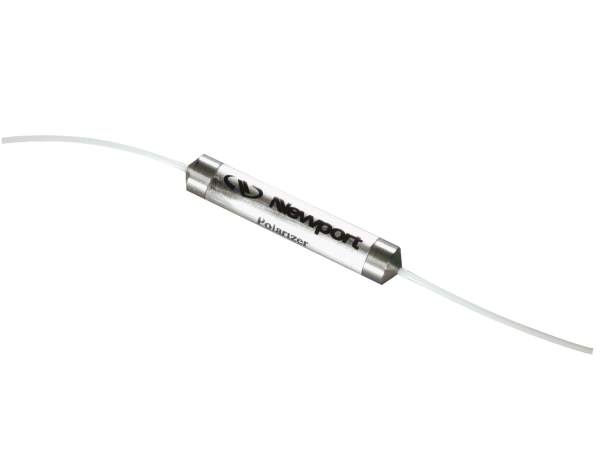

The pigtailed versions come with ~1 m long fiber pigtails with 900 µm loose tube. These devices are more economical and provide the user with added fiber length in a fiber optic system.

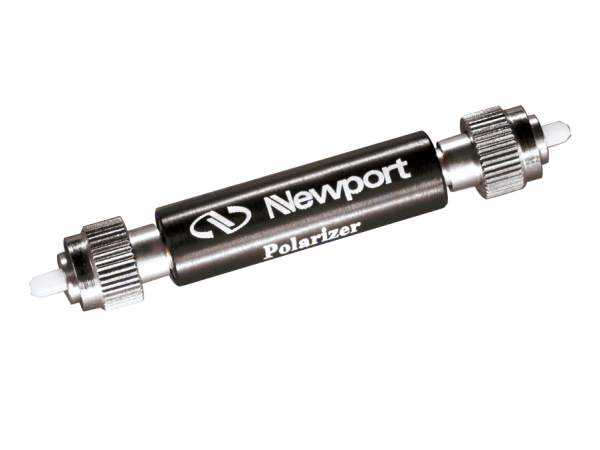

The Bulkhead models are compact, rugged devices designed without fiber pigtails. Without pigtails, these device make handling much easier as users do not need to worry about fragile fibers. These Bulkhead versions have the advantage of eliminating the polarization disturbances caused by fiber pigtails.
These compact devices offer low insertion loss, low back reflection and high extinction ratio.
Users can select a combination of input and output fibers. SM to SM, PM to PM or SM to PM.
Users can select from both FC/PC and FC/APC connectors for both Pigtailed and Bulkhead Fiber Polarizers
When combined with Newport's F-POL Series Manual Polarization Controllers the F-ILP Series can function as a variable fiber optic attenuator.
