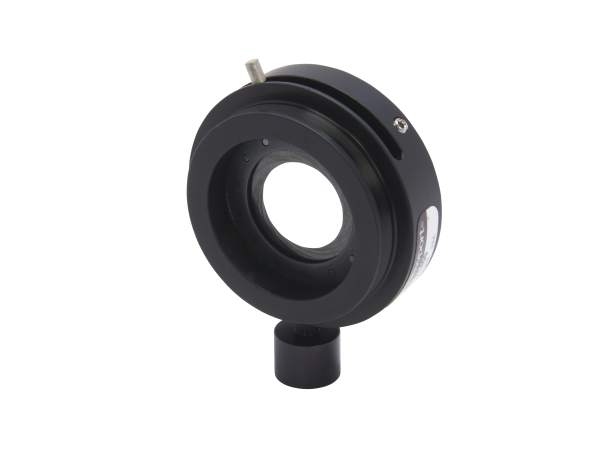

Manually operated iris diaphragms are an inexpensive and excellent option for light attenuation and can act as lens aperture stops as well. They are easily operated by the manual lever at the top of the diaphragm. These irises provide adjustable apertures, as small as 1 mm or as large as 36 mm, and have a standard 1.5 Inch Series flange for simple integration into Oriel® lamp housings or detectors. If rod mounting is preferred, a 1/4-20 tapped hole is located on the bottom.
Useful for light attenuation or as light aperture stops
1.5 inch male and female flanges for simple coupling to Oriel components
Additional CAD file downloads are not available for this product.
flange-mount-iris-diaphragms - Drawings
Additional drawings are not available for this product.
Features
Wide Range of Possible Aperture Sizes
The Flange Mounted Manual Iris Diaphragms feature an easy-to-grip housing and provide continuously variable apertures for a multitude of optical applications, such as beam alignment, light attenuation, or as baffles to block spurious reflections and scattered light. Two models are available with aperture size ranges 2.0mm to 36 mm and 1 mm to 25 mm. Irises have a 1/4-20 threaded hole on the bottom for rod mounting.
Accessories
Flange Couplers and Adapters
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
66292Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female
UNIVERSAL
In Stock
$160.00
66290Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female
UNIVERSAL
In Stock
$500.00
77791Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female
UNIVERSAL
In Stock
$300.00
77792Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male
UNIVERSAL
In Stock
$95.00
77790Flange Converter, Quick Connect, 1.5 Inch Series, Double Female
