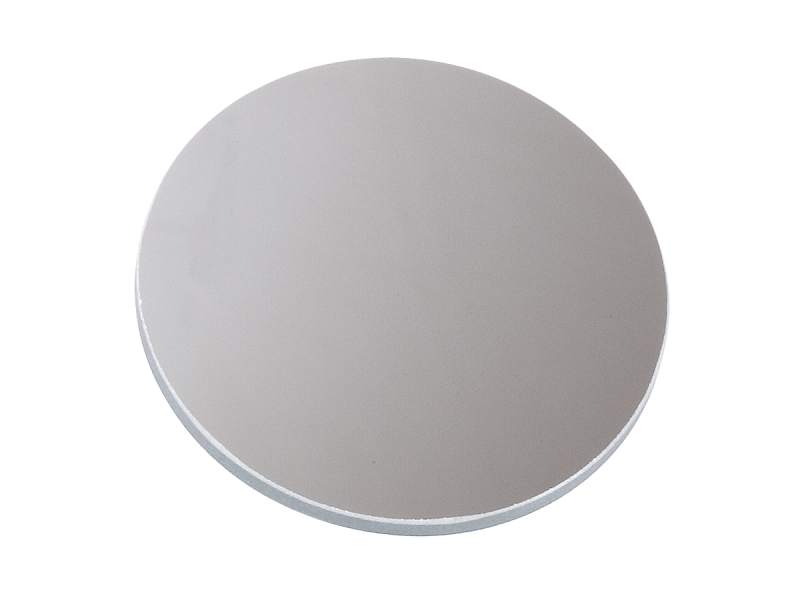

These low cost Float glass 1 and 2 inch diameter mirrors are excellent broadband mirrors for the price. They can be used as a front or back surface reflector.
| Models |
$24.00
In Stock
Product Series Overview
|
$33.00
In Stock
Product Series Overview
|
|---|---|---|
| Wavelength Range | 400-10000 nm | 400-10000 nm |
| Mirror Shape | Round | Round |
| Material | Float Glass | Float Glass |
| Surface Flatness | 5λ at 632.8 nm | 5λ at 632.8 nm |
| Surface Quality | 60-40 scratch-dig | 60-40 scratch-dig |
| Reflectivity | Ravg>90% @ 400-2000 nm | Ravg>90% @ 400-2000 nm |
| Thickness | 3.17 mm | 3.17 mm |
| Thickness Tolerance | ±0.76 mm | ±0.76 mm |
| Diameter | 25.4 mm | 50.8 mm |
| Diameter Tolerance | ±0.25 mm | ±0.25 mm |
| Cleaning | See How to Clean Optics | See How to Clean Optics |
Float glass is made by floating molten glass over a bed of molten metal. While this is a low cost material that is used in commercial windows, the production method yields a very flat surface of uniform thickness making it a good choice for optics. For more information, refer to the optical material technical note.
The front surface is coated with our ER.3 dielectric-enhanced aluminum coating. Average reflectivity is greater than 90% from 400-2000 nm typically.

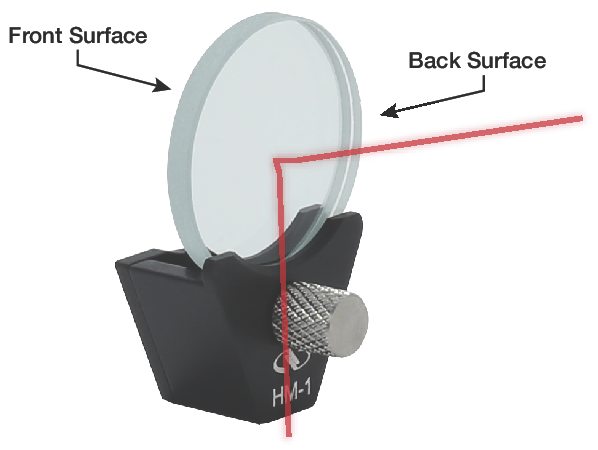

These mirrors can be used as a front or back surface reflector. A removable plastic sheet is attached to the coated surface to protect the mirror surface during shipment and handling. It can be left on if used as a back surface reflector or removed if used as a front surface reflector.
