The 764H Series high-power laser diode mounts use an industrial grade heat sink and cooling fan design to provide an air cooled thermal solution for high power laser diodes and bars. Both free-space and fiber-coupled diode laser bars can be accommodated with the flexible top mounting plate. When connected to Newport's 3700 High Power TEC Controller Model 764H-061 can dissipate up to 61 watts, and model Model 764H-110 can handle up to 110 W of waste heat at 25°C ambient temperature.
| Models |
$2,120.00
In Stock
Product Series Overview
|
$2,545.00
In Stock
Product Series Overview
|
|---|---|---|
| Package Type | CS Bar | CS Bar |
| TE Cooler | Yes | Yes |
| Temperature Range | -10 to 80°C | -10 to 80°C |
| Temperature Sensor | 10 kΩ NTC Thermistor | 10 kΩ NTC Thermistor |
| TEC Controller Connector Type | Pigtailed D-Sub 7W2 Male | Pigtailed D-Sub 7W2 Male |
| Heat Dissipation Capability | 61 W | 110 W |
| Dimensions | 141 x 120 x 200 mm | 197.3 x 143 x 221 mm |
| Weight | 3.7 kg | 5 kg |
An internal series of Peltier Thermoelectric (TE) coolers provide for fine control of the device temperature, enabling wavelength tuning and outstanding stabilization.

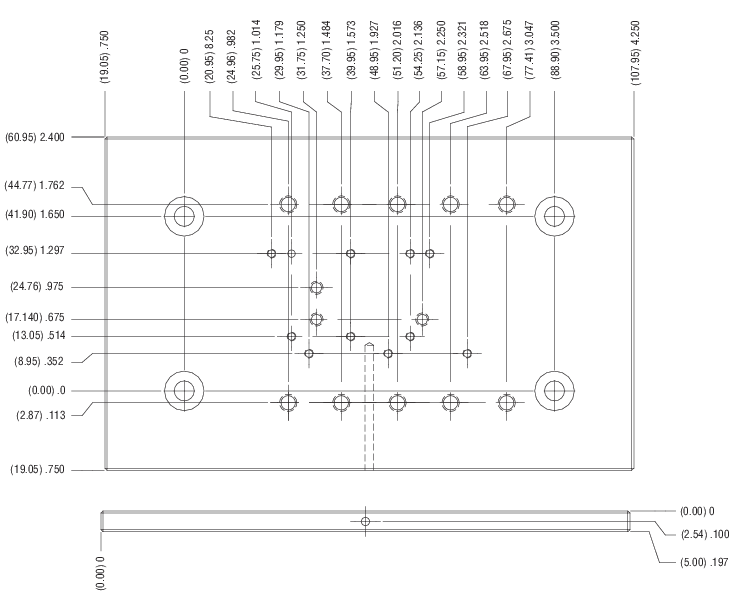

The copper mounting plate offers a range of mounting holes to work with a wide variety of high power laser diodes. -061 is shown. Laser diodes offered by other manufacturers in the market can be accommodated with special hole patters that can be drilled on the copper plate. The top copper plate is also sold separately in case custom hole patterns need to be created. Spare plates can be ordered as required.
