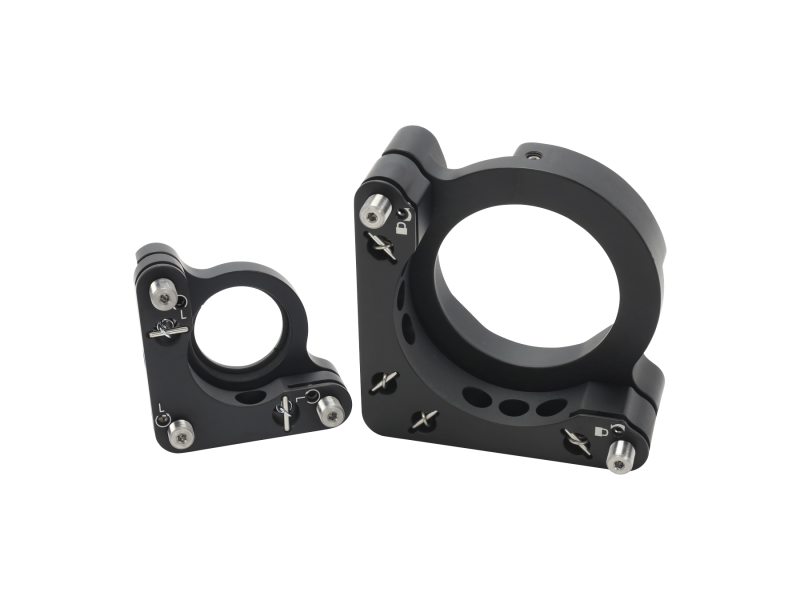

The Newport's Performa-i series Industrial kinematic mounts have been optimized for OEM applications and feature precise angular adjustment, high stability, and "set, lock, & forget" capability.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
P50-AI21 |
In Stock
|
$104.00 |
|
|||
|
P50-At21 |
In Stock
|
$111.00 |
|
|||
|
P100-AI21 |
In Stock
|
$117.00 |
|
|||
|
P100-AI31 |
In Stock
|
$134.00 |
|
|||
|
P100-AI28 |
1 Week
|
$100.00 |
|
|||
|
P100-AI38 |
In Stock
|
$105.00 |
|
|||
|
P100-At28 |
In Stock
|
$101.00 |
|
|||
|
P100-At38 |
In Stock
|
$105.00 |
|
|||
|
P200-AI28 |
In Stock
|
$203.00 |
|
|||
|
P200-At28 |
In Stock
|
$181.00 |
|
The threaded aperture versions are designed to hold thin optics and lenses with threaded retainers. P100-At28 and P100-At38 include not only a threaded retaining ring but also a protective Delrin spacer to prevent scratching the optic's coating or surface as it is secured. P50-At21 and P200-At28 feature a fully threaded design and include two retaining rings for holding the optic. They also allow for mounting of lens tubes or other optical components with matching threads. Vacuum pick-up tools and spanner wrench facilitate installation and removal of the optic.
Performa-i Series industrial mounts feature Allen-key adjustments to save space and prevent unintended adjustment. A flexure lock is built into the mount body and exerts a tangential force on the screw to prevent rotation. Adjustment and locking actions are accomplished using a single tool from the same side of the mount.
The design of the these mounts follows kinematic principles to ensure the highest stability and precision. Each degree of freedom is constrained just once using the Cone, V, and Flat configuration.
The newest and best performing OEM mirror mounts come from Newport. We've focused on incorporating key features for industrial applications into each mount including alignment pin slots, adhesive wells and actuator locks. Click the video link here to see the industry's most cost-effective, compact, and stable mirror mounts.
