The economical FCL Series linear stages feature a built-in, fully integrated, plug-and-play stepper motor controller to provide travel ranges of 50, 100 or 200 mm in a small footprint while maintaining high precision. Users need only plug in the stage's power supply and connect it to a PC with FC Series Controller graphical user interface (GUI) to begin motion.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

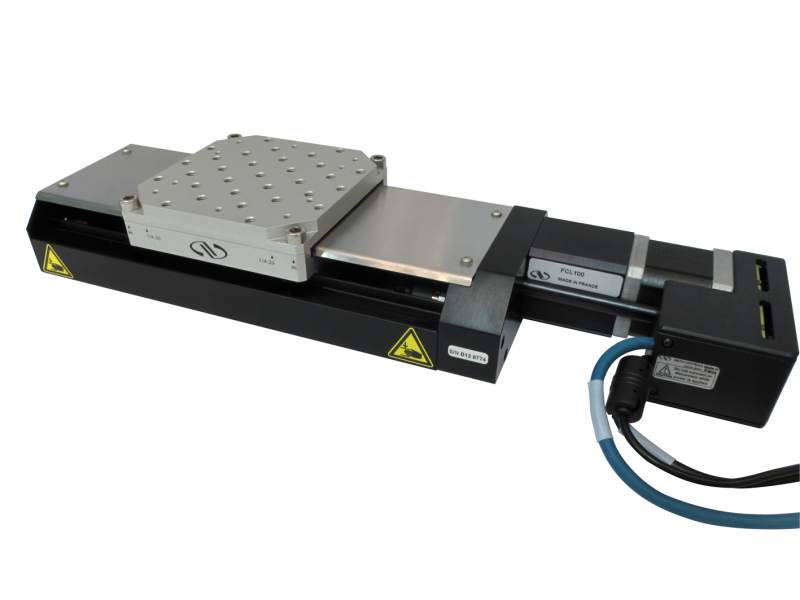

FCL50 Motorized Linear Stage, 50 mm Travel, Integrated Controller, M4 and M6 |
In Stock
|
$5,778.00 |
|
|||
|
FCL100 Motorized Linear Stage, 100 mm Travel, Integrated Controller, M4 and M6 |
In Stock
|
$6,115.00 |
|
|||
|
FCL200 Motorized Linear Stage, 200 mm Travel, Integrated Controller, M4 and M6 |
In Stock
|
$7,197.00 |
|
| Models |
$5,778.00
In Stock
Product Series Overview
|
$6,115.00
In Stock
Product Series Overview
|
$7,197.00
In Stock
Product Series Overview
|

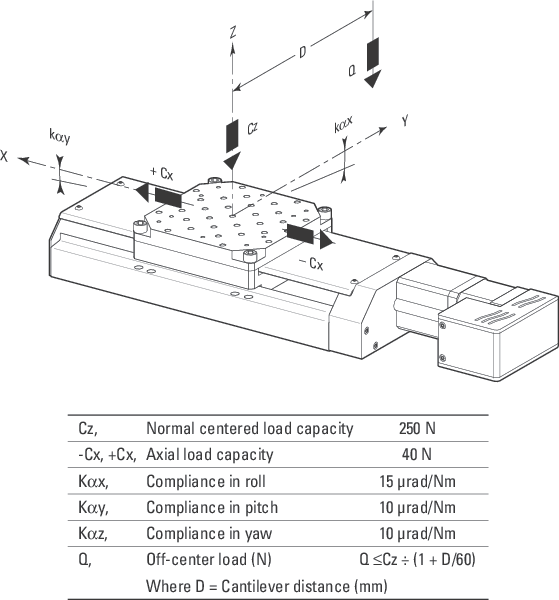

|---|---|---|---|
| Travel Range | 50 mm | 100 mm | 200 mm |
| Minimum Incremental Motion | 150 nm | 150 nm | 150 nm |
| Maximum Speed | 20 mm/s | 20 mm/s | 20 mm/s |
| Accuracy, Typical | ±0.8 µm | ±1.0 µm | ±1.5 µm |
| Accuracy, Guaranteed | ±2.0 µm | ±2.5 µm | ±4.0 µm |
| Bi-directional Repeatability, Guaranteed | ±2.25 µm | ±2.5 µm | ±2.5 µm |
| Bi-directional Repeatability, Typical | ±1 µm | ±1 µm | ±1 µm |
| Centered Load Capacity | 250 N | 250 N | 250 N |
| Pitch, Typical | ±17 µrad | ±15 µrad | ±45 µrad |
| Pitch, Guaranteed | ±25 µrad | ±50 µrad | ±100 µrad |
| Compliance in Pitch | 10 µrad/Nm | 10 µrad/Nm | 10 µrad/Nm |
| Yaw, Typical | ±6 µrad | ±11 µrad | ±20 µrad |
| Yaw, Guaranteed | ±35 µrad | ±50 µrad | ±80 µrad |
| Compliance in Yaw | 10 µrad/Nm | 10 µrad/Nm | 10 µrad/Nm |
| Roll, Typical | ±35 µrad | ±50 µrad | ±50 µrad |
| Compliance in Roll | 15 µrad/Nm | 15 µrad/Nm | 15 µrad/Nm |
| Origin Repeatability | ±2.5 µm | ±2.5 µm | ±2.5 µm |
| Weight | 4.1 kg | 3.3 kg | 3.6 kg |
| MTBF | 20,000 h (25% load, 30% duty cycle) | 20,000 h (25% load, 30% duty cycle) | 20,000 h (25% load, 30% duty cycle) |
The FCL's design brings together a linear stage with a built-in controller and driver for easy integration. Not only is the controller pre-configured with intelligent stepper motor technology, iPP, but the stage is also ready for plug-and-play via USB connection. The built-in controller eliminates the need for an external controller and cables, thus saving work-space and cost.
With an RS-422 interface, the FC series is equipped to easily daisy-chain and synchronize communication with up to 4 stages. All 4 axes can be controlled within one GUI.
The optimized aluminum body allows for extreme stiffness and minimizes bi-metal bending without compromising weight. The rigid body reduces deflection under load.
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
