Specifications

  • Optic Diameter
    25.4 mm
  • Use
    Lens Focusing
  • Adjustments
    Z
  • Adjustment Screw Thread
    80 TPI

Features

High Precision Z Positioning Mount

The LFM-1A lens focusing mount includes two LP-1-RR

Model: LP-1-RR

Retaining Ring, 26.9 mm ID, 1.438-20 Thread

$7.60
In Stock
Product Series Overview
Adaptors and Retaining Rings
Delrin retaining rings for 35 mm and one threaded LPLH-1T

Model: LPLH-1T

Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series

$37.00
In Stock
Product Series Overview
Precision Multi-Axis Lens Positioners
optic holder with a retaining ring for 1.0 in. (25 mm) optics. It is also compatible with PRA-05

Model: PRA-05

Polarizer Adaptor, 12.7 mm Optics to 1.063-20 Threaded Mounts

$42.00
In Stock
Product Series Overview
High Performance Optic Rotation Mounts
0.5 in. optic adapter, LPMH-1

Model: LPMH-1

Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series

$36.00
In Stock
Product Series Overview
Precision Multi-Axis Lens Positioners
 objective lens holder and LP1A-1-32

Model: LP1A-1-32

C-Mount Lens Holder, 1.438-20 Thread, For LP-1A Series

$76.00
In Stock
Product Series Overview
Precision Multi-Axis Lens Positioners
C-Mount Lens Holder. 1 µm sensitivity is provided by an 80 TPI threaded barrel with easy-grip knurled focusing ring.

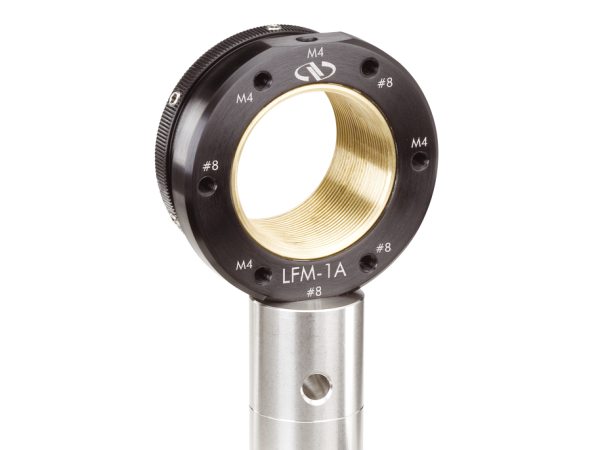

Optical Post Mounting

LFM-1A features M4 top and 8-32 bottom tapped mounting holes for easy attachment to posts or other optical hardware.

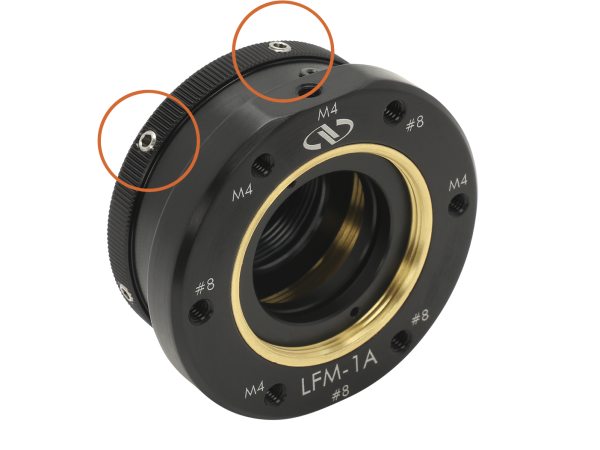

Secure Locking

To secure your focus position, a series of locking screws are conveniently located around the perimeter of the adjustment barrel.
