Lens Tubes

Products
Features
Contact Us

Overview

Newport’s new Lens Tubes allow the combining of several optical components into stable and rigid assemblies. Included in this product family are various lengths of tubes for holding ½, 1 and 2 inch diameter lenses, as well as adaptors for mounting other types of components. Lens tubes can be used to create lens systems such as beam expanders, telescopes, microscopes, or collimators.

Ideal for creating multi-element lens systems
Sizes for 12.7, 25.4 and 50.8 mm diameter lenses
Compatible with Newport optics and mounts

See All Features

Products

Showing 4 of 10 total products Keyword filter: "LT10"

Compatibility:

Show entries

Search:

Compare	Model	ranking	Optic Diameter	Length	Thread Type	Availability	Price	Brand
LT10-05 Lens Tube, 1 inch LT Series, 1/2 inch length $20.00 In Stock	LT10-05 Lens Tube, 1 inch LT Series, 1/2 inch length	0.15267	25.4 mm	12.7 mm	1.035-40	In Stock	$20.00	Newport
LT10-10 Lens Tube, 1 inch LT Series, 1 inch length $23.00 In Stock	LT10-10 Lens Tube, 1 inch LT Series, 1 inch length	0.118576667	25.4 mm	25.4 mm	1.035-40	In Stock	$23.00	Newport
LT10-20 Lens Tube, 1 inch LT Series, 2 inch length $24.00 In Stock	LT10-20 Lens Tube, 1 inch LT Series, 2 inch length	0.084365	25.4 mm	50.8 mm	1.035-40	In Stock	$24.00	Newport
LT10-30 Lens Tube, 1 inch LT Series, 3 inch length $36.00 In Stock	LT10-30 Lens Tube, 1 inch LT Series, 3 inch length	0.059433333	25.4 mm	76.2 mm	1.035-40	In Stock	$36.00	Newport

Showing 1 to 4 of 4 entries (filtered from 10 total entries)

Previous1Next

Features

Ideal for Fast Prototyping of Complex Lens Systems

Lens Tubes allow the combining of several optical components into stable and rigid assemblies and are used to create beam expanders, telescopes, microscopes, collimators and more.

Endless Optical Configurations

LT-series Lens Tubes provide a means to mount multiple lenses into a single holder. Each lens tube has an internal thread on one end and a mating external thread on the other. This allows them to be connected together end-to-end to provide endless configurations. Lenses are held in place with threaded retaining rings and one ring is included with each lens tube.

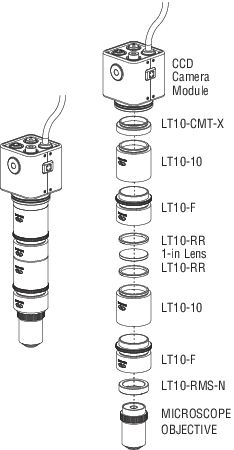

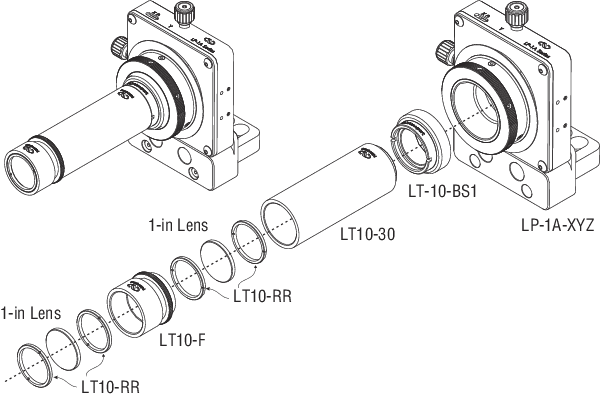

Example Lens Tube Assembly #1

Example Lens Tube Assembly #2

Example Lens Tube Assembly #3

Example Lens Tube Assembly #4

Accessory	0.5 in. Lens Tubes	1.0 in. Lens Tubes	2 in. Lens Tubes
Tube Coupler	LT05-LX Model: LT05-LX Lens Tube Coupler, 0.5 in Lens Tubes, 0.535-40 External Thread $28.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters LT05-LN Model: LT05-LN Lens Tube Coupler, 0.5 in. Lens Tubes, 0.535-40 Internal Thread $14.40 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	LT10-LX Model: LT10-LX Lens Tube Coupler, 1.0 in. Lens Tubes, 1.035-40 External Thread $29.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters LT10-LN Model: LT10-LN Lens Tube Coupler, 1.0 in. Lens Tubes, 1.035-40 Internal Thread $15.60 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	LT20-LX Model: LT20-LX Lens Tube Coupler, 2.0 in. Lens Tubes, 2.035-40 External Thread $48.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters LT20-LN Model: LT20-LN Lens Tube Coupler, 2.0 in. Lens Tubes, 2.035-40 Internal Thread $24.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters
Step-Up Adapter	LT-S-05E10N Model: LT-S-05E10N Step Adaptor, 0.5 to 1.0 in. Lens Tubes, 0.535-40 to 1.035-40 $29.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	LT-S-10E20N Model: LT-S-10E20N Step Adaptor, 1.0 to 2.0 in. Lens Tubes,1.035-40 to 2.035-40 Thread $36.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	N/A
Focusing Tube	LT05-F Model: LT05-F Focusing Lens Tube, 1/2 inch diameter lenses $42.00 In Stock See Full Product Details Product Series Overview Focusing and Extension Lens Tubes	LT10-F Model: LT10-F Focusing Lens Tube, 1 inch diameter lenses $42.00 In Stock See Full Product Details Product Series Overview Focusing and Extension Lens Tubes	LT20-F Model: LT20-F Focusing Lens Tube, 2 inch diameter lenses $73.00 In Stock See Full Product Details Product Series Overview Focusing and Extension Lens Tubes
Extension Tube	LT05-EX Model: LT05-EX Extension, Lens Tube, 0.5 inch LT Series, 6 in. Length $74.00 In Stock See Full Product Details Product Series Overview Focusing and Extension Lens Tubes	LT10-EX Model: LT10-EX Extension, Lens Tube, 1 inch LT Series, 6 in. Length $66.00 4 Weeks See Full Product Details Product Series Overview Focusing and Extension Lens Tubes	LT20-EX Model: LT20-EX Extension Lens Tube, 2 inch LT Series, 6 in. Length $89.00 In Stock See Full Product Details Product Series Overview Focusing and Extension Lens Tubes
Post Mounting Ring	LT05-PR Model: LT05-PR Post Mounting Ring, 1/2 inch LT Series Lens Tubes $28.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories	LT10-PR Model: LT10-PR Post Mounting Ring, 1 inch LT Series Lens Tubes $36.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories	LT20-PR Model: LT20-PR Post Mounting Ring, 2 inch LT Series Lens Tubes $42.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories
End Cover	LT05-C Model: LT05-C End Cover, Lens Tube, 0.5 inch LT Series $21.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories	LT10-C Model: LT10-C End Cover, Lens Tube, 1 inch LT Series $27.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories	LT20-C Model: LT20-C End Cover, Lens Tube, 2 inch LT Series $29.00 In Stock See Full Product Details Product Series Overview Lens Tube Accessories
Alignment Target	N/A	AT-SM1 Model: AT-SM1 Alignment Target, SM1 Thread, A-Line & Lens Tube $24.00 In Stock See Full Product Details Product Series Overview Alignment Targets	N/A
Objective Adapter	N/A	LT10-RMS-N Model: LT10-RMS-N Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread $24.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	N/A
C-Mount Adapter	N/A	LT10-CMT-X Model: LT10-CMT-X Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.000-32 External C-Mount Thread $28.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters LT10-CMT-N Model: LT10-CMT-N Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.000-32 Internal C-Mount Thread $28.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	N/A
Thread Adapter	N/A	LT-10-BS1 Model: LT-10-BS1 Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.438-20 Thread $42.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters LT10-NP1 Model: LT10-NP1 Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.063-20 Mount Thread $17.40 In Stock See Full Product Details Product Series Overview Lens Tube Adapters	LT-20-BS1 Model: LT-20-BS1 Thread Adaptor, 2.0 in. Lens Tubes, 2.035-40 to 2.063-20 Thread $42.00 In Stock See Full Product Details Product Series Overview Lens Tube Adapters
Iris Diaphragm	N/A	ID-0112SM1 Model: ID-0112SM1 SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range $89.00 3 Weeks See Full Product Details Product Series Overview Ring Actuated Threaded Iris Diaphragms ID-0112SM1G Model: ID-0112SM1G SM1 Threaded Iris Diaphragm, Ring-Actuated, Graduated, 1-12 mm Aperture Range $135.00 Contact Us See Full Product Details Product Series Overview Ring Actuated Threaded Iris Diaphragms	ID-0125SM2 Model: ID-0125SM2 SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range $108.00 3 Weeks See Full Product Details Product Series Overview Ring Actuated Threaded Iris Diaphragms
Retaining Ring	LT05-RR Model: LT05-RR Retaining Ring, 10.9 mm ID, 0.535-40 Thread $6.50 In Stock See Full Product Details Product Series Overview Adaptors and Retaining Rings	LT10-RR Model: LT10-RR Retaining Ring, 22.9 mm ID, 1.035-40 Thread $7.60 5 Weeks See Full Product Details Product Series Overview Adaptors and Retaining Rings	LT20-RR Model: LT20-RR Retaining Ring, 47.5 mm ID, 2.035-40 Thread $10.70 In Stock See Full Product Details Product Series Overview Adaptors and Retaining Rings
Spanner Wrench	LT05-WR Model: LT05-WR Spanner Wrench, 1/2 inch LT Series Lens Tubes $24.00 In Stock See Full Product Details Product Series Overview Spanner Wrench	LT10-WR Model: LT10-WR Spanner Wrench, 1 inch LT Series Lens Tubes $31.00 In Stock See Full Product Details Product Series Overview Spanner Wrench	LT20-WR Model: LT20-WR Spanner Wrench, 2.0 inch LT Series Lens Tubes $43.00 In Stock See Full Product Details Product Series Overview Spanner Wrench
Oriel^® Flange Adapter	N/A	LT10-UADPT Model: LT10-UADPT Adapter, Oriel^® 1.5-Inch Series Flange to Newport 1-Inch LT Series $105.00 In Stock See Full Product Details Product Series Overview Flange Couplers & Adapters	LT20-UADPT Model: LT20-UADPT Adapter, Oriel^® 1.5-Inch Series Flange to Newport 2-Inch LT Series $365.00 In Stock See Full Product Details Product Series Overview Flange Couplers & Adapters
Aegis Qube™ Adapter	N/A	Q-BT-LT-A Model: Q-BT-LT-A Beam Tube Adaptor, LT10 Lens Tube, Aegis Qube™ Series $24.00 In Stock See Full Product Details Product Series Overview Beam Tubes, Aegis Qube Q-XE-LT10-A Model: Q-XE-LT10-A Adaptor Plate, LT10 Lens Tube, Aegis Qube $27.00 In Stock See Full Product Details Product Series Overview Adapter Plates, Aegis Qube	N/A
