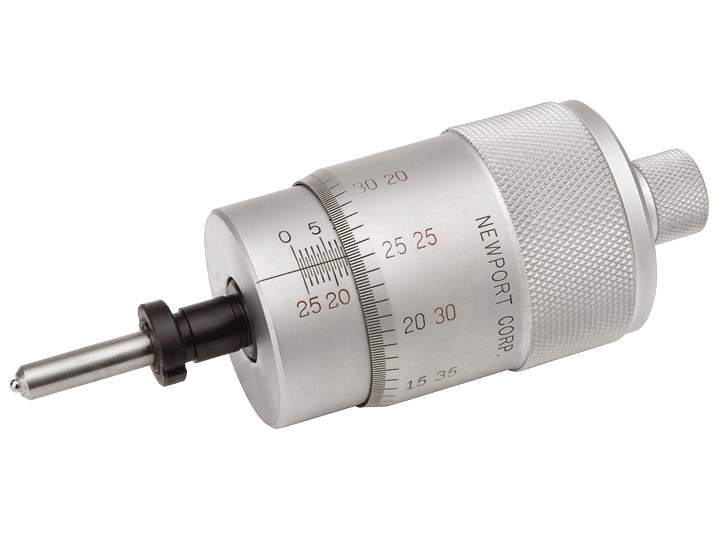

Our Long-travel, high-resolution micrometer has a sensitivity that is 4x better than most standard micrometers. Its engraved scale reads directly in units of 2 µm, and its large knob allows exceptionally sensitive position adjustment.
Large diameter knob enables 0.25 µm sensitivity over 25 mm travel
Additional drawings are not available for this product.
Specifications
Travel Range
25.4 mm
Adjustment Screw Thread
50 TPI
Drive Type
Knob
Graduations
2 µm
Axial Load Capacity
49 N
Sensitivity
0.1 µm
Drive Screw Pitch
0.5 mm
Mounting Threads
M9.5 x 0.5
Mounting
9.5 mm Shank
Features
Large Knob For Finer Adjustments

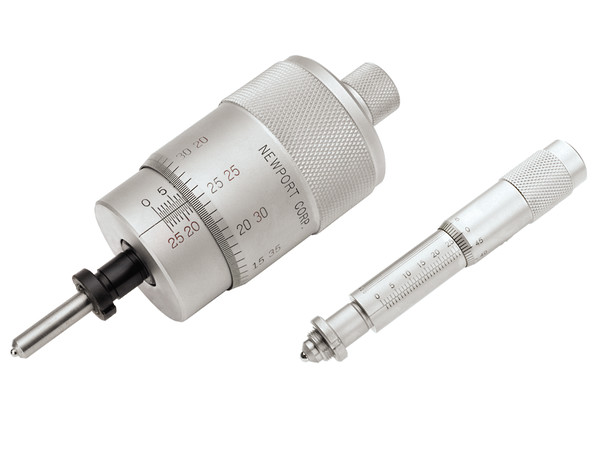

Compared to standard micrometers, the HR-1 has an extra-large diameter knob which provides 4x superior adjustment sensitivity. For fast coarse adjustments use the smaller diameter knob at the end of the screw.
High-Resolution Engraving
The engraved scale of the HR-1 allows position readings directly in units of 2 µm. This is 5-times higher resolution than most standard micrometers.
Mechanical Compatibility

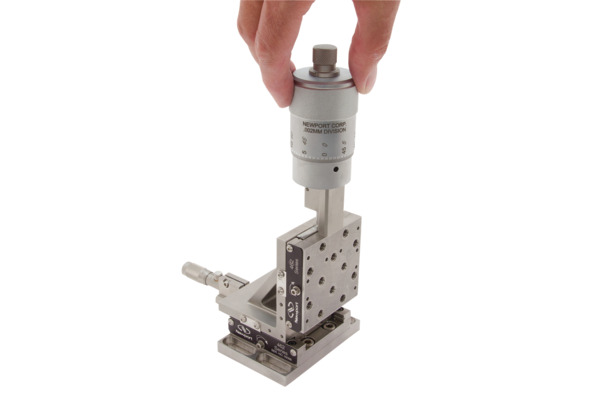

The HR-1 micrometer, shown mounted to the 462-XZ linear stage, has an industry-standard Ø3/8 inch (9.5 mm) mounting barrel. The large diameter knob, however, restricts compatibility with some of our stages. For any questions about mechanical compatibility, please contact Newport.
