| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
MRP3-0.125 |
In Stock
|
$58.00 |
|
|||
|
MRP3-0.25 |
In Stock
|
$93.00 |
|
|||
|
MRP3-0.5 |
In Stock
|
$106.00 |
|
|||
|
MRP3-1 |
In Stock
|
$129.00 |
|
|||
|
MRP4-0.125 |
In Stock
|
$87.00 |
|
|||
|
MRP4-0.25 |
In Stock
|
$106.00 |
|
|||
|
MRP4-0.5 |
In Stock
|
$122.00 |
|
|||
|
MRP4-1 |
In Stock
|
$129.00 |
|
|||
|
M-MRP3-0.125 |
In Stock
|
$58.00 |
|
|||
|
M-MRP3-0.25 |
In Stock
|
$93.00 |
|
|||
|
M-MRP3-0.5 |
In Stock
|
$106.00 |
|
|||
|
M-MRP3-1 |
In Stock
|
$129.00 |
|
|||
|
M-MRP4-0.125 |
In Stock
|
$87.00 |
|
|||
|
M-MRP4-0.25 |
In Stock
|
$106.00 |
|
|||
|
M-MRP4-0.5 |
In Stock
|
$122.00 |
|
|||
|
M-MRP4-1 |
In Stock
|
$129.00 |
|

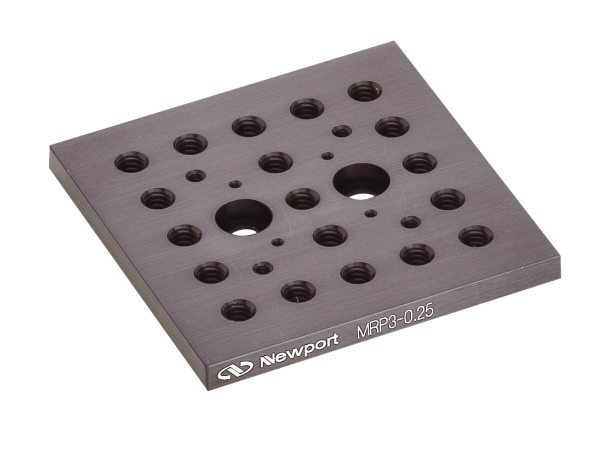

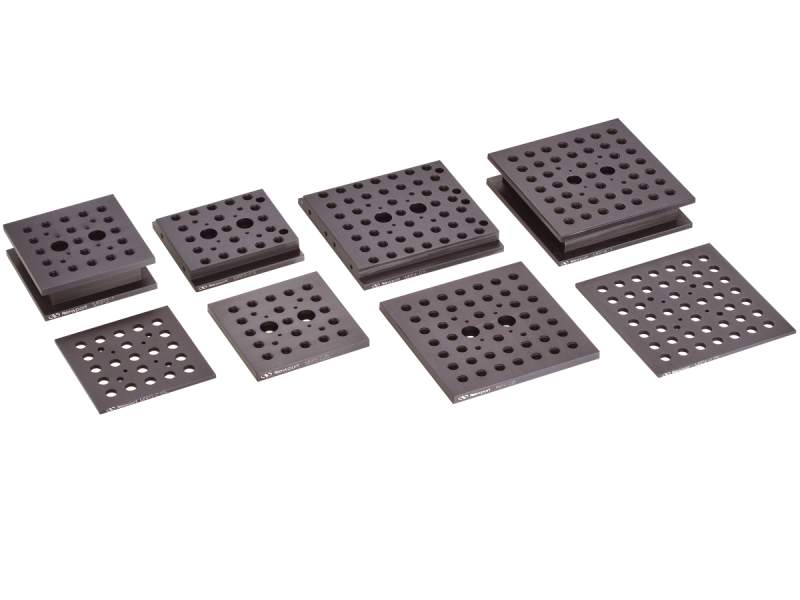

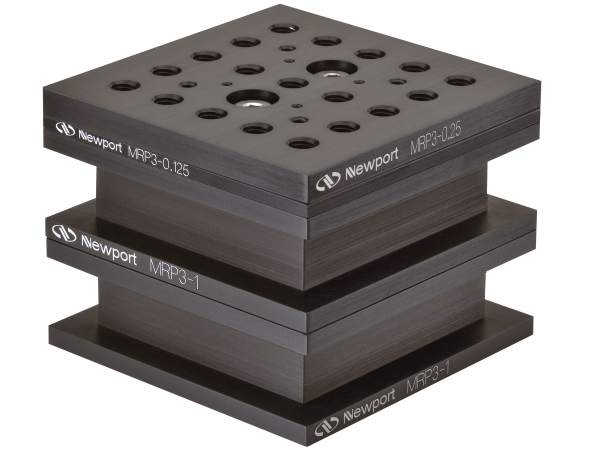

Modular Riser Plates are available in four heights and can be stacked to achieve any height in 0.125 in. (3.175 mm) increments. For each height, risers are offered with a mounting area of either 3.0 in x 3.0 in (76.2 mm x 76.2 mm) or 4.0 in. x 4.0 in. (101.6 mm x 101.6 mm) and feature a full array of 1/4-20 (M6) threaded and through holes for mounting.
Through holes on these riser plates can be used to mount plates directly to surfaces, or alternatively can be secured using additional base clamps. The 0.5 in. and 1.0 in. (12.7 mm and 25.4 mm) tall risers include specialized grooves around the base mounting with clamps while maintaining a minimal footprint.

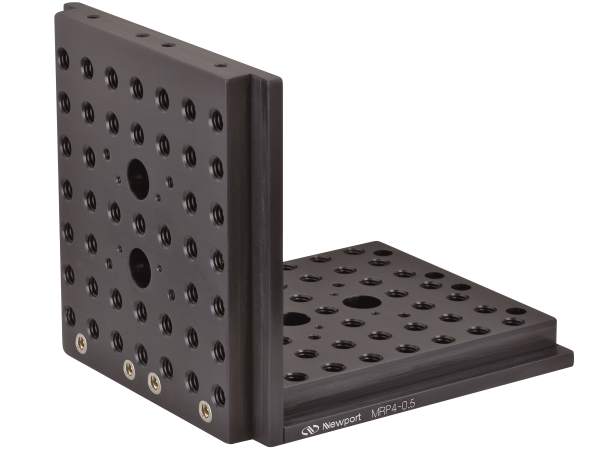

0.5 in. (12.7 mm) thick plates can be bolted together to create an angle bracket for a vertical mounting surface.
