| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
MT-X Manual Linear Stage, Compact, Dovetail, 0.375 in. Travel, 9.6 lb., 8-32 |
In Stock
|
$107.00 |
|
|||
|
MT-XY XY Linear Stage, Compact, Dovetail, 0.375 in. Travel, 9.6 lb., 8-32 |
In Stock
|
$244.00 |
|
|||
|
MT-XYZ XYZ Linear Stage, Compact, Dovetail, 0.375 in. Travel, 3 lb., 8-32 |
In Stock
|
$406.00 |
|
|||
|
|
M-MT-X Manual Linear Stage, Compact, Dovetail, 9.5 mm Travel, 43 N Load, M4 |
In Stock
|
$107.00 |
|
|||
|
|
M-MT-XY XY Linear Stage, Compact, Dovetail, 9.5 mm Travel, 43 N Load, M4 |
In Stock
|
$244.00 |
|
|||
|
M-MT-XYZ XYZ Linear Stage, Compact, Dovetail, 9.5 mm Travel, 13.3 N Load, M4 |
In Stock
|
$406.00 |
|
80 TPI adjustment screws are included with these stages.

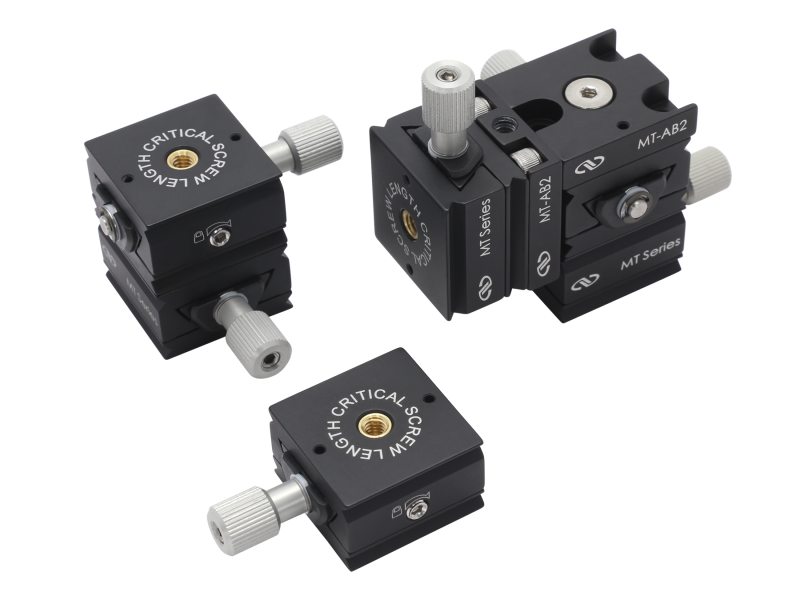

Dovetail stages are ideal for small, controlled travel to eventually remain locked in place for long time periods. These stages do not employ typical roller bearings of cylindrical rails, which makes them less susceptible to shock and vibration. These DS series dovetail stages slide along precision preloaded dovetail slides, whose unique shape ensures accurate, repeatable motion. These stages are most notably compact, measuring just 1-in. (25.4 mm) along each of its square sides. A 8-32 or M4 threaded brass insert on each stage allows the easy attachment of any MPH Post Holder.
Each stage come equipped with an 80 TPI drive screw for precision positioning of 1 µm. The motion can then be locked in place using a hex set screw controlled locking mechanism that insures placement over long times. Despite their small dimensions, these dovetail stages can translate appreciable mass, with a center load capacity of just less than 10 lbs (43 N max).
These linear stages are compatible with MT Series Rotation Mounts. They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. In the shown image, the MT-RS rotation mount is mounted to our MT-X manual stage using one side of the
