New ODiate^® Fluorescence Filter Sets

Products
Features
Set Components
Resources
Contact Us

Overview

ODiate^® Fluorescence Filter Sets utilize a dense sputtering process to meet the highest demands for fluorescence and microscopy applications including exceptionally high passband transmission, maximized out-of-band blocking ≥ OD8, extremely steep slopes, and spectral specifications illuminating fluorescence chemistries to provide maximum image brightness. Discover how ODiate fluorescence filters can differentiate the performance of your life and health science applications, medical instrumentation, and chemical or material analyses.

Maximize signal quality
Improve system sensitivity
Enhance imaging throughput
Tailored to key fluorescence chemistries
≥ OD10 avg, over Excitation/Emission passband (verified as ≥ OD8 avg)

See All Features

Products

Show entries

Search:

Compare	Model		Fluorophores	Availability	Featured Item	Price	Brand
New OD8-FFS2005 Fluorescence Filter Set, ODiate®, DAPI Fluorophore $885.00 In Stock	New OD8-FFS2005 Fluorescence Filter Set, ODiate®, DAPI Fluorophore	1.0	DAPI	In Stock	New	$885.00	Newport
New OD8-FFS2010 Fluorescence Filter Set, ODiate®, GFP Fluorophore $885.00 In Stock	New OD8-FFS2010 Fluorescence Filter Set, ODiate®, GFP Fluorophore	2.0	GFP	In Stock	New	$885.00	Newport
New OD8-FFS2015 Fluorescence Filter Set, ODiate®, FITC Fluorophore $885.00 In Stock	New OD8-FFS2015 Fluorescence Filter Set, ODiate®, FITC Fluorophore	3.0	FITC	In Stock	New	$885.00	Newport
New OD8-FFS2020 Fluorescence Filter Set, ODiate®, TRITC Fluorophore $885.00 In Stock	New OD8-FFS2020 Fluorescence Filter Set, ODiate®, TRITC Fluorophore	4.0	TRITC	In Stock	New	$885.00	Newport
New OD8-FFS2025 Fluorescence Filter Set, ODiate®, mCherry & TexasRed Fluorophores $885.00 In Stock	New OD8-FFS2025 Fluorescence Filter Set, ODiate®, mCherry & TexasRed Fluorophores	5.0	mCherry & TexasRed	In Stock	New	$885.00	Newport
New OD8-FFS2030 Fluorescence Filter Set, ODiate®, Cy5™ Fluorophore $885.00 In Stock	New OD8-FFS2030 Fluorescence Filter Set, ODiate®, Cy5™ Fluorophore	6.0	Cy5™	In Stock	New	$885.00	Newport

Showing 1 to 6 of 6 entries

Previous1Next

Specifications

Transmission

Excitation & Emission Filters: Tavg ≥ 96% over passband
Reflection

Dichroic Beamsplitters: Ravg ≥ 98% over Excitation passband
Blocking

ODavg ≥ 6 out of band, 300 – 900 nm ODavg ≥ 10 over corresponding EX/EM passband (verified to OD8 avg as a paired set) ODabs ≥ 4 EX/EM crossover ODavg ≥ 3 over 900 – 1100 nm
Angle of Incidence

Excitation & Emission Filters: 0-5°
Dichroic Beamsplitters: 45±1.5°

Parallelism

Excitation & Emission Filters: ≤ 10 arcseconds
Dichroic Beamsplitters: ≤ 5 arcsecond
Material

Excitation & Emission Filters: BOROFLOAT® 33
Dichroic Beamsplitters: Fused Silica
Dimensions

Excitation & Emission Filters: 25 mm
Dichroic Beamsplitters: 25.2 x 35.6 mm
Surface Quality

60-40 over clear aperture

Features

ODiate Filter Manufacturing & Metrology

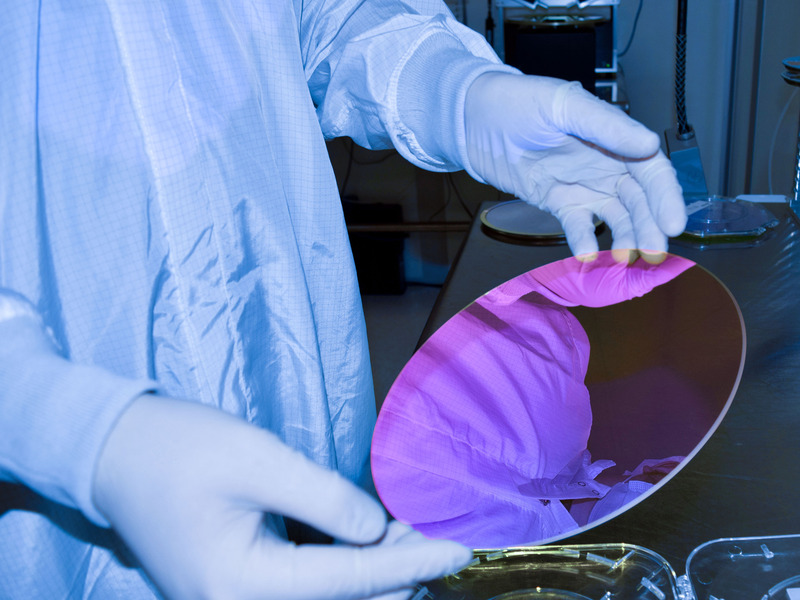

ODiate Fluorescence Filter Sets are manufactured using advanced thin-film deposition systems ensures optical filters achieve excellent transmission and reflection accuracy. ODiate filter specifications are verified utilizing commercial spectrophotometric tools in addition to Newport’s proprietary custom in-house tools to measure edge steepness resolution, and deep blocking to optical density 8 [-log10(T)].

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

Set Components

Each ODiate^® Fluorescence Filter Set contains one each of the filters shown in the table below. Please see the individual filter pages for complete specifications and a list of other Fluorophores covered by the filter set.

Set	Primary Fluorophore	Excitation Filter	Dichroic Beamsplitter	Emission Filter
OD8-FFS2005 Model: OD8-FFS2005 NEW Fluorescence Filter Set, ODiate®, DAPI Fluorophore $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	DAPI	379.5 nm Model: OD8-EX380-59-B NEW ODiate® Excitation Filter, 25.0 mm, 380 nm CWL, 59 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	414 nm Model: OD8-DCL414-D NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 414 nm, 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	450 nm Model: OD8-EM450-64-B NEW ODiate® Emission Filter, 25.0 mm, 450 nm CWL, 64 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
OD8-FFS2010 Model: OD8-FFS2010 NEW Fluorescence Filter Set, ODiate®, GFP Fluorophore $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	GFP	474 nm Model: OD8-EX474-37-B NEW ODiate® Excitation Filter, 25.0 mm, 474 nm CWL, 37 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	498 nm Model: OD8-DCL498-D NEW ODiate® Dichroic Beamsplitter, 25.2 x 35.6 mm, 498 nm 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	523 nm Model: OD8-EM523-41-B NEW ODiate® Emission Filter, 25.0 mm, 523 nm CWL, 41 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
OD8-FFS2015 Model: OD8-FFS2015 NEW Fluorescence Filter Set, ODiate®, FITC Fluorophore $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	FITC	482.5 nm Model: OD8-EX483-41-B NEW ODiate® Excitation Filter, 25.0 mm, 483 nm CWL, 41 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	508.5 nm Model: OD8-DCL509-D NEW ODiate® Dichroic Beamsplitter, 25.2 x 35.6 mm, 509 nm 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	537 nm Model: OD8-EM537-46-B NEW ODiate® Emission Filter, 25.0 mm, 537 nm CWL, 46 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
OD8-FFS2020 Model: OD8-FFS2020 NEW Fluorescence Filter Set, ODiate®, TRITC Fluorophore $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	TRITC	539 nm Model: OD8-EX539-31-B NEW ODiate® Excitation Filter, 25.0 mm, 539 nm CWL, 31 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	560.5 nm Model: OD8-DCL561-D NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 561 nm 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	593 nm Model: OD8-EM593-54-B NEW ODiate® Emission Filter, 25.0 mm, 593 nm CWL, 54 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
OD8-FFS2025 Model: OD8-FFS2025 NEW Fluorescence Filter Set, ODiate®, mCherry & TexasRed Fluorophores $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	mCherry & TexasRed	564.5 nm Model: OD8-EX565-49-B NEW ODiate® Excitation Filter, 25.0 mm, 564.5 nm CWL, 48.6 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	596 nm Model: OD8-DCL596-D NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 596 nm 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	629 nm Model: OD8-EM629-52-B NEW ODiate® Emission Filter, 25.0 mm, 629 nm CWL, 52 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
OD8-FFS2030 Model: OD8-FFS2030 NEW Fluorescence Filter Set, ODiate®, Cy5™ Fluorophore $885.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Filter Sets	Cy5™	626 nm Model: OD8-EX626-52-B NEW ODiate® Excitation Filter, 25.0 mm, 626 nm CWL, 52 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Excitation Filters Center	658.5 nm Model: OD8-DCL659-D NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 659 nm 50% Cut-on Edge Wavelength $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Dichroic Beamsplitters Cut-on	692.5 nm Model: OD8-EM693-56-B NEW ODiate® Emission Filter, 25.0 mm, 693 nm CWL, 56 nm FWHM $295.00 In Stock See Full Product Details Product Series Overview ODiate^® Fluorescence Emission Filters Center
