| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

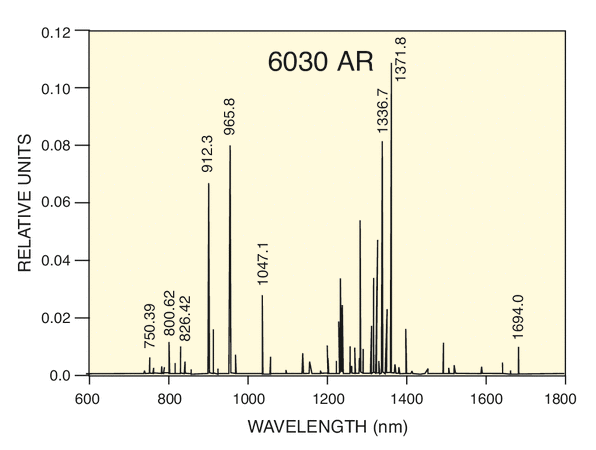

6030 Spectral Calibration Lamp, Argon, 10 mA, 500 Hour Rated Life |
In Stock
|
$290.00 |
|
|||
|
|
6031 Spectral Calibration Lamp, Krypton, 10 ±4 mA, 1000 Hour Rated Life |
In Stock
|
$290.00 |
|
|||
|
|
6032 Spectral Calibration Lamp, Neon, 10 ±4 mA, 250 Hour Rated Life |
In Stock
|
$340.00 |
|
|||
|
|
6033 Spectral Calibration Lamp, Xenon, 6 ±3 mA, 250 Hour Rated Life |
In Stock
|
$350.00 |
|
|||
|
|
6034 Spectral Calibration Lamp, Hg (Ne), 18, ±5 mA, 500 Hour Rated Life |
In Stock
|
$330.00 |
|
|||
|
|

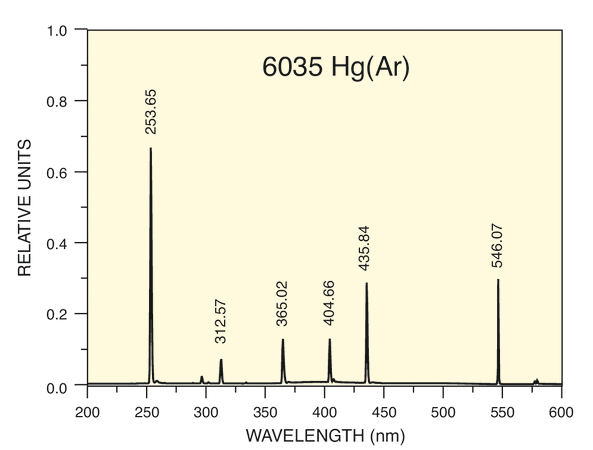

6035 Spectral Calibration Lamp, Hg (Ar), 18±5 mA, 5000 Hour Rated Life |
In Stock
|
$260.00 |
|
|||
|
78812 HgAr Calibration Set, 230 VAC |
4 Weeks
|
$860.00 |
|
|||
|
78822 HgAr Calibration Set, 115 VAC |
6 Weeks
|
$860.00 |
|
We offer AC power supplies specifically designed for pencil style calibration lamps. These power supplies are required for proper operation of the calibration lamps. AC power supplies have the benefit of being CE compliant and prolonging lamp life, as they operate lamps with small variations in output intensity. There are two models for each lamp type based on geographic location and AC power requirements of that region.

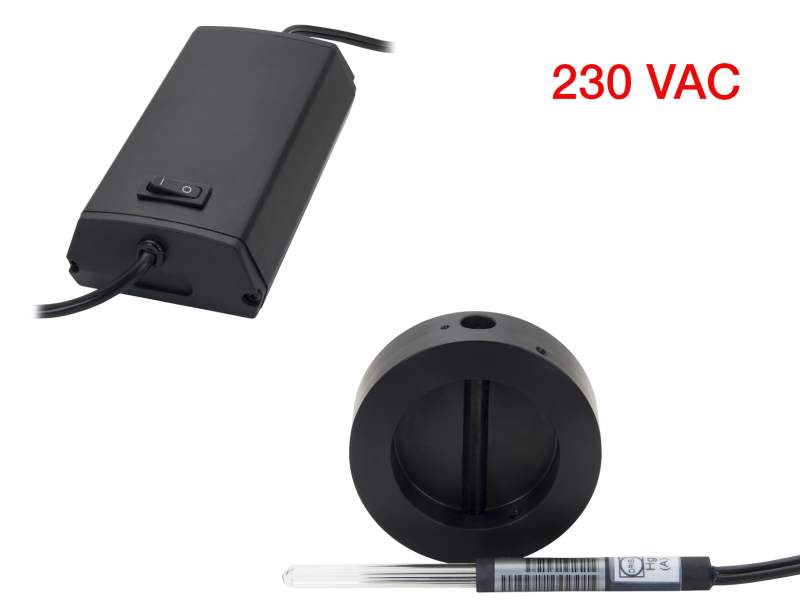

For users seeking a complete calibration set for their Oriel monochromator or spectrograph, the 78812 and 78822 Calibration Sets are available. When performing calibration, a light source with at least two spectral lines within the wavelength region of interest is required for proper instrument calibration. Calibration is also required when using the 78855 LineSpec CCD detector and its included Oriel LineSpec software. Each calibration set includes: 6035 HgAr Pencil Calibration Lamp, 6047 (included with 78822) or 6048 (included with 78812) Power Supply for 115 or 230 VAC operation respectively, as well as 78819 Spectral Calibration Lamp Mount.
When only certain portions of the lamp's output are required, three different filters are offered to block out the undesired spectral lines. Like the aperture shields, these filters simply slide over the lamp.
The
$185.00
In Stock
Product Series Overview
The model
$235.00
In Stock
Product Series Overview
When the radiation area of the lamp must be limited, Oriel offers three aperture. These aperture shields simply slide over the pencil calibration lamp and limit the lamp's output with the following aperture dimensions:
Pencil style calibration lamps may emit dangerous UV radiation depending on their source type. Ensure that only authorized personnel are in the vicinity of the source, and that they are wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves.
