Quartz Tungsten Halogen (QTH) lamps are a popular alternative to arc lamps. By comparison, QTH lamps have better output stability, do not produce strong UV light emission, do not have intense spectral emission lines in their output, and do not produce toxic ozone. These advantages over traditional arc lamps make QTH lamps preferable for radiometric and photometric applications as well as excitation sources of visible to NIR light.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
63350 Calibrated Source Lamp, Quartz Tungsten Halogen, 1000 W, 250-2400 nm |
5 Weeks
|
$6,265.00 |
|
|||
|
63355 Calibrated Source Lamp, Quartz Tungsten Halogen, 200 W, 300-2400 nm |
In Stock
|
$6,060.00 |
|
|||
|
|
63358 Calibrated Source Lamp, Quartz Tungsten Halogen, 45 W, 300-2400 nm |
In Stock
|
$5,860.00 |
|
|||
|
6319 Quartz Tungsten Halogen Lamp, 20 W |
In Stock
|
$35.00 |
|
|||
|
6337 Quartz Tungsten Halogen Lamp, 50 W |
In Stock
|
$45.00 |
|
|||
|
6332 Quartz Tungsten Halogen Lamp, 50 W |
In Stock
|
$40.00 |
|
|||
|
6333 Quartz Tungsten Halogen Lamp, 100 W |
In Stock
|
$45.00 |
|
|||
|
6335 Quartz Tungsten Halogen Lamp, 250 W, Long Lifetime |
In Stock
|
$60.00 |
|
|||
|
|
6334NS Quartz Tungsten Halogen Lamp, 250 W |
In Stock
|
$45.00 |
|
|||
|
6336 Quartz Tungsten Halogen Lamp, 600 W |
In Stock
|
$60.00 |
|
|||
|
6315 Quartz Tungsten Halogen Lamp, 1000 W |
In Stock
|
$105.00 |
|
|||
|
6317 Quartz Tungsten Halogen Lamp, 1000 W |
In Stock
|
$105.00 |
|
|||
|
6346 Quartz Tungsten Halogen Lamp, 150 W, Integrated Full Reflector |
In Stock
|
$105.00 |
|
|||
|
|
63360 Quartz Tungsten Halogen Lamp, 45 W, Non-Calibrated Source |
1 Week
|
$860.00 |
|
|||
|
63368 Quartz Tungsten Halogen Lamp, 200 W, Non-Calibrated Source |
3 Weeks
|
$1,045.00 |
|

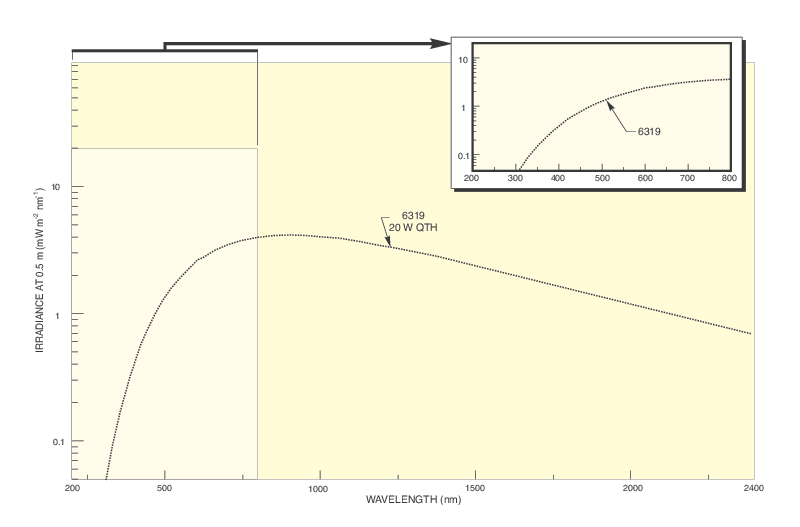

For users and applications that do not need the high intensity spectral output of larger QTH lamps, the 6319 is a low wattage alternative.

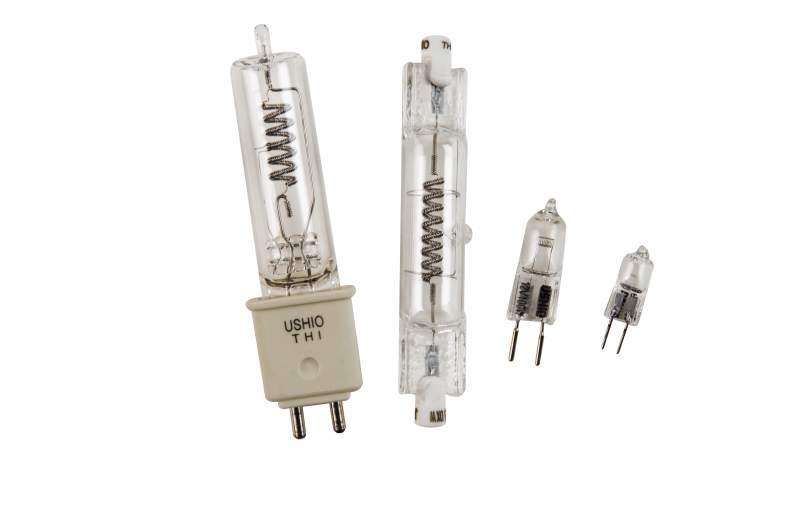

Two different 50 W QTH lamps are offered. The 6332 is a short filament type QTH lamp. Short filament QTH lamps have better shock and vibration due to their compact construction and can be more useful for reimaging the filament onto a small input slit of a monochromator, for example. The 6337 is a long filament type QTH lamp. Long filament QTH lamps have an extended average lifetime.

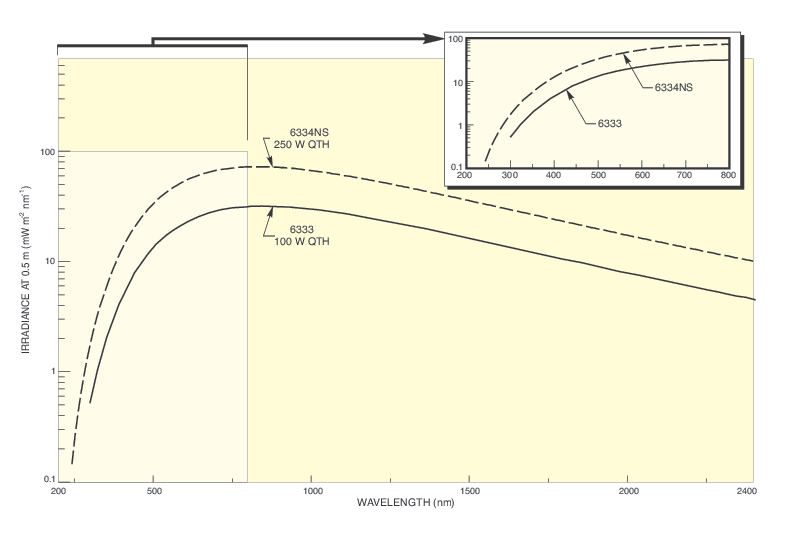

The 6333 is a 100 W QTH lamp for users that require a larger filament size and additional light output intensity.
The 6346 is a 150 W QTH lamp for use in the fiber optic illuminator models 66088 and IQE-LIGHT-BIAS. It is the only QTH lamp offering with an integrated reflector, which makes it truly drop-in replaceable with no lamp alignment necessary.
The 6334NS is a 250 W QTH lamp for use in the Tunable Light Sources and compatible with most Research QTH Lamp Housings. Due to its large power rating, this model cannot be used in the Q Series housings.

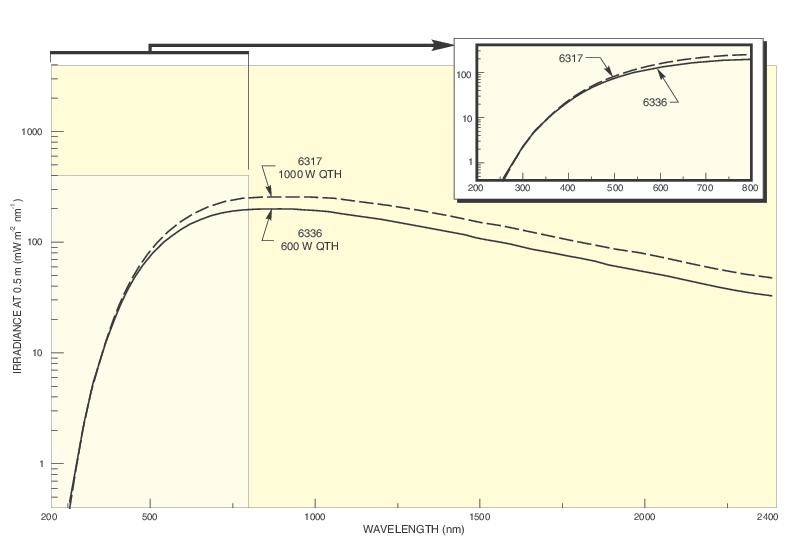

The 6336 600 W and 6317 1000 W QTH lamps are used with the high power Research QTH Sources and with lamp socket adapter 6392NS.

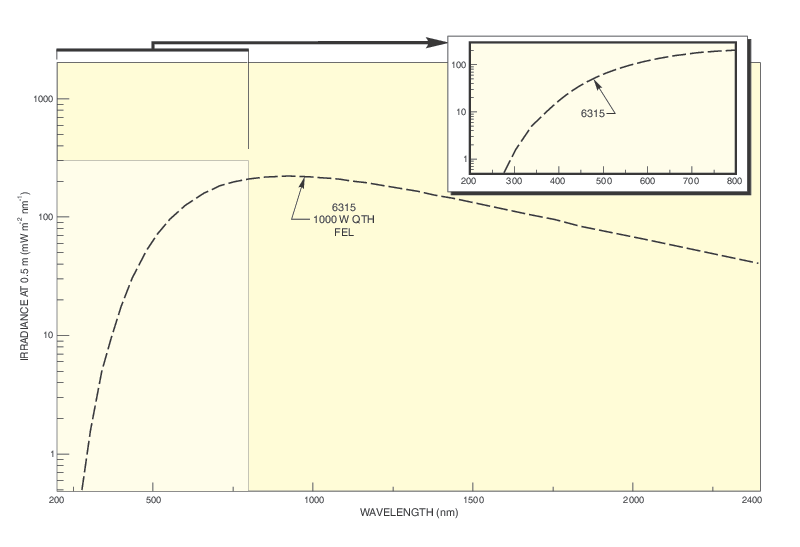

An FEL lamp is an ANSI standard 1000 W QTH lamp with a two pin base. The 6315 lamp is categorized as an FEL type.

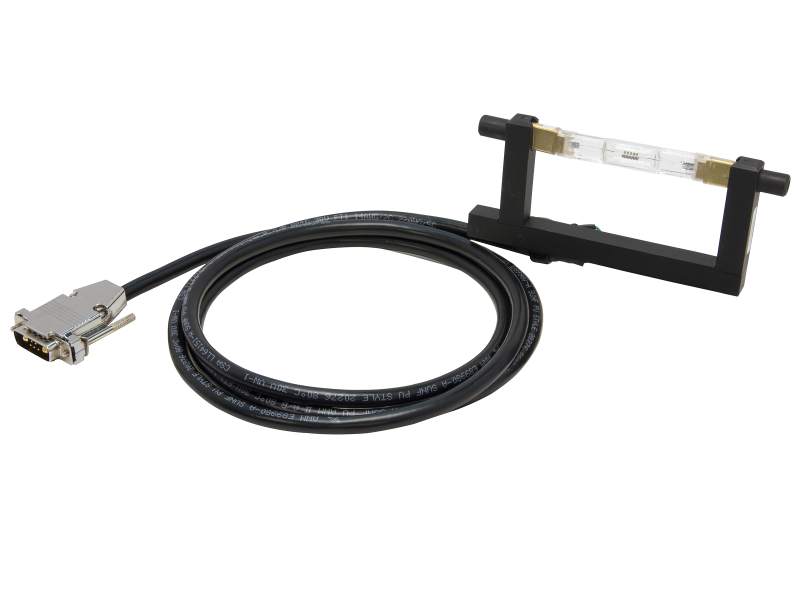

For particular QTH lamps, rod mounting is available instead of mounting inside the usual lamp housing setup. Rod mounts are open-air holders that provide a low cost alternative to lamp housings. Additional benefits when using a rod mount include the ability to place the lamp closer to the sample or desired area of illumination and the option of mounting the lamp horizontally () or vertically (). Users that need to collimate and focus the light output of the QTH lamp can select the appropriate lens setup from Newport's line of Lenses.
We offer complete light source systems as well as components for you to easily build your own systems.

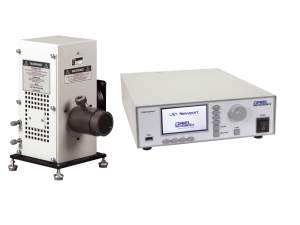

When used with a Q Series lamp housing, the system will need the following components:
| Lamp Housing | Lamp Model | Lamp Socket Adapter Options | Condensing Lens Assembly Options | Rear Reflector | Interface Kit | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|---|---|---|
$2,160.00
In Stock
Product Series Overview
|
Product Series Overview
|
$200.00
4 Weeks
Product Series Overview
$270.00
Product Series Overview
$170.00
5 Weeks
Product Series Overview
|
$415.00
1 Week
Product Series Overview
$570.00
4 Weeks
Product Series Overview
$730.00
1 Week
Product Series Overview
$1,095.00
Product Series Overview
|
$510.00
1 Week
Product Series Overview
|
$495.00
Product Series Overview
|
$3,125.00
In Stock
Product Series Overview
|
$170.00
In Stock
Product Series Overview
|
Low Power Q Series QTH |
Product Series Overview
|
||||||||
Product Series Overview
|
||||||||
Product Series Overview
|
$2,185.00
In Stock
Product Series Overview
|
- | ||||||
| * Cable is included in interface kit. | ||||||||
When used with a Research Series lamp housing, the system will need the following components:
| Lamp Housing Options | Lamp Model | Lamp Socket Adapter | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|
|
10-250 W
$3,475.00
4 Weeks
Product Series Overview
$3,930.00
6 Weeks
Product Series Overview
$4,215.00
In Stock
Product Series Overview
$4,255.00
3 Weeks
Product Series Overview
|
Product Series Overview
|
$200.00
4 Weeks
Product Series Overview
|
$3,125.00
In Stock
Product Series Overview
|
$170.00
In Stock
Product Series Overview
|
Low - Medium Power QTH |
|
Product Series Overview
|
|||||
|
Product Series Overview
|
|||||
Product Series Overview
|
|||||
|
$60.00
In Stock
Product Series Overview
|
- | ||||
|
600-1000 W
$4,195.00
4 Weeks
Product Series Overview
|
Product Series Overview
|
$365.00
Product Series Overview
|
$4,630.00
In Stock
Product Series Overview
|
High Power QTH | |
Product Series Overview
|
|||||
Product Series Overview
|
Product Series Overview
|
||||
| *Cable is included in the QTH housing. | |||||
When used with an open air rod mount, the system will need the following components:
| Lamp Mount | Lamp Model | Power Supply | Complete system |
|---|---|---|---|
Product Series Overview
|
$860.00
1 Week
Product Series Overview
|
$3,125.00
In Stock
Product Series Overview
|
Open Air QTH |
$1,045.00
3 Weeks
Product Series Overview
|
|||
Product Series Overview
|
$880.00
1 Week
Product Series Overview
|
$4,630.00
In Stock
Product Series Overview
|
