Overview

These patented prism mounts provide clear access to all four beam paths making them ideal for creating interferometers.

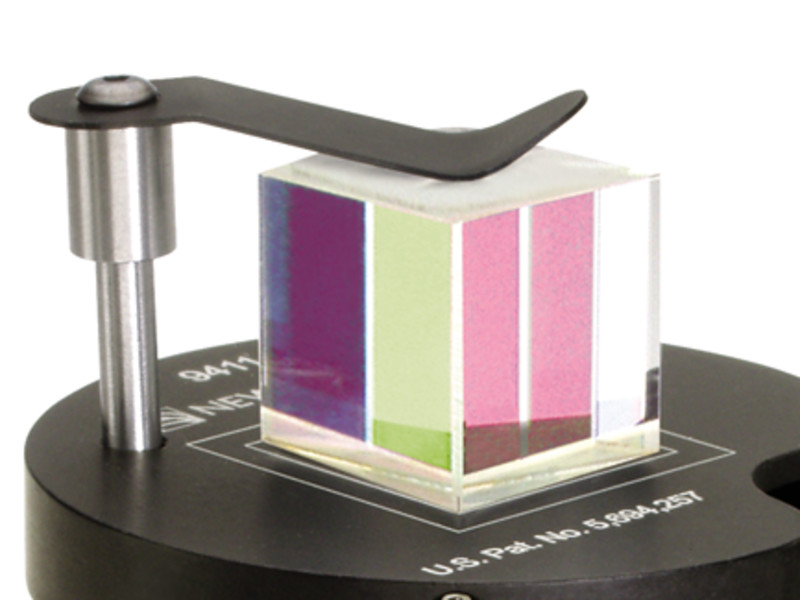

Corner clamp allows quad-path beam access
Full range of motion in all three axes available simultaneously
Press-ﬁt clamp means optic mounting without tools
Intuitive and affordable design
Hold 0.25 to 1.0 inch prisms

See All Features

Products

Showing 4 of 4 total products

Compatibility:

Show entries

Search:

Compare	Model	Angular Range	Sensitivity	Load Capacity	Mounting	Availability	Price	Brand
9411 Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32 $494.00 In Stock	9411 Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32	±5°	9 arc sec	7 N	8-32 Thd.	In Stock	$494.00	New Focus
9411-M Prism Mount, 0.25 to 1.00 in., ±5 °, M4 $494.00 In Stock	9411-M Prism Mount, 0.25 to 1.00 in., ±5 °, M4	±5°	9 arc sec	7 N	M4 Thd.	In Stock	$494.00	New Focus
9481 Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32 $488.00 In Stock	9481 Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32	±3.5°	12 arc sec	4 N	8-32 Thd.	In Stock	$488.00	New Focus
9481-M Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4 $488.00 In Stock	9481-M Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4	±3.5°	12 arc sec	4 N	M4 Thd.	In Stock	$488.00	New Focus

Showing 1 to 4 of 4 entries

Previous1Next

Features

Standard and Pint-Sized Versions

We offer both a standard version and a compact pint-sized version with less adjustment range. Both can be used with 0.25 to 1.0 inch prisms.

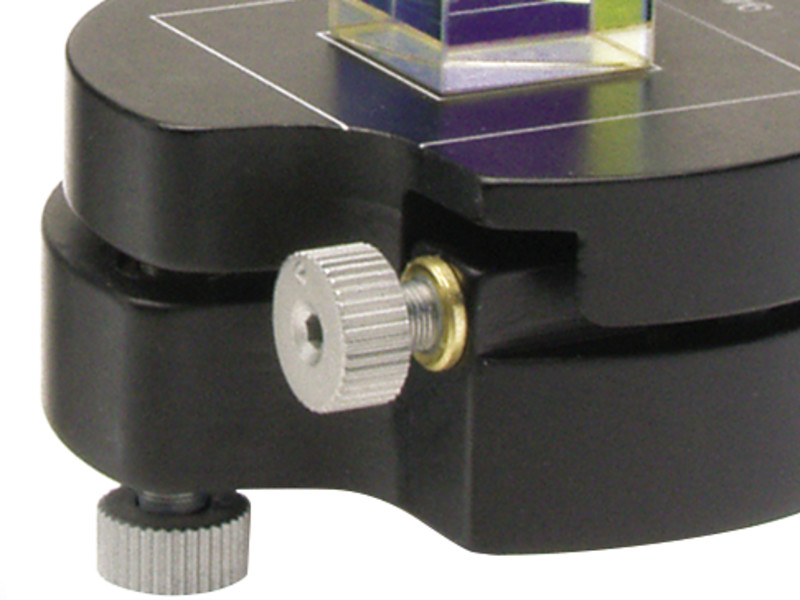

Thread-matched Adjustment Screws

The adjustment screws used on the Quad-Path prism mounts are matched screw/bushing sets to ensure alignments that are stable, even after being adjusted.
