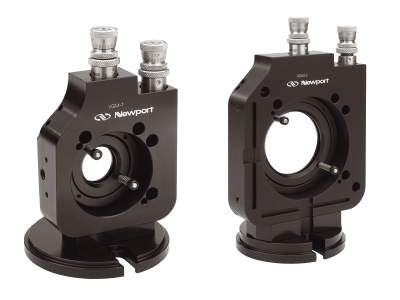

Top Adjust Gimbal Mirror Mounts

Show entries

Search:

Compare	Model		Optic Diameter	Drive Type	Adjustment Screw Thread	Sensitivity	Availability	Price	Brand
VGM-1N Gimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators $770.00 In Stock	VGM-1N Gimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators	1.0	25.4 mm	Not Included			In Stock	$770.00	Newport
VGM-1AJS Gimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws $830.00 In Stock	VGM-1AJS Gimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws	2.0	25.4 mm	Knob, locking	100 TPI	4.9 arc sec	In Stock	$830.00	Newport
VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers $1,373.00 In Stock	VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers	3.0	25.4 mm	Micrometer	51 TPI	9.7 arc sec	In Stock	$1,373.00	Newport
VGM-2N Gimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators $936.00 In Stock	VGM-2N Gimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators	4.0	50.8 mm	Not Included			In Stock	$936.00	Newport
VGM-2AJS Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws $993.00 In Stock	VGM-2AJS Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws	5.0	50.8 mm	Knob, locking	100 TPI	3.3 arc sec	In Stock	$993.00	Newport
VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers $1,530.00 In Stock	VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers	6.0	50.8 mm	Micrometer	51 TPI	6.5 arc sec	In Stock	$1,530.00	Newport

Showing 1 to 6 of 6 entries

Previous1Next

Features

Keep Your Hands Out of Harms Way

Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.

Your Choice of Actuator - Or Not

VGM series Top-Adjust Gimbal Mounts are offered in three choices. For applications requiring a user-supplied actuator, VGM mounts can be ordered without actuators.

Model	Included Actuators
-AJS	AJS100-0.5
-BM	BM17.04N
-N	N/A

Description	Compatibility	Avail.	Price
BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load	UNIVERSAL	In Stock	$325.00
BHC17.04 Adjustment Screw, Hex, M12 x 0.50, 4mm Travel, BHC Series	UNIVERSAL	In Stock	$181.00
BD17.04 Differential Micrometer Head, 4.3 mm Coarse, 0.3 mm Fine, 11 lb. Load	UNIVERSAL	In Stock	$425.00
DM17-4 Differential Micrometer Head, 4.1 mm Coarse, 0.1 mm Fine, 11 lb. Load	UNIVERSAL	In Stock	$594.00
AJS170-0.5K-NL Adjustment Screw, 170 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	In Stock	$75.00
AJS254-0.5K-NL Adjustment Screw, 254 TPI, 12.7 mm, 280 nm Sensitivity, Large Knob	UNIVERSAL	In Stock	$93.00

Description	Compatibility	Avail.	Price
UPA-SMA Fiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick	UNIVERSAL	2 Weeks	$43.00
UPA-FC Fiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts	UNIVERSAL	In Stock	$27.00
UPA2-OAP Mounting Adapter, Off-Axis Parabolic Mirror, for 2 in. Mounts	UNIVERSAL	In Stock	$55.00
LH-2R1 Lens Adaptor, 2.0 in. Mount to 1.0 in. Diameter Lens, A-LINE	UNIVERSAL	In Stock	$31.00
LH-2R1.5 Lens Adaptor, 2.0 in. Mount to 1.5 in. Diameter Lens, A-LINE	UNIVERSAL	In Stock	$31.00

Description	Compatibility	Avail.	Price
SR-0.125-S Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	In Stock	$15.60
SR-0.063-S Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	In Stock	$14.40
SR-0.25-S Pedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	In Stock	$17.40
PS-0.125-T Pedestal Spacer, 0.125 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	In Stock	$10.40
PS-0.063-T Pedestal Spacer, 0.0625 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	In Stock	$9.10
PS-0.031-T Pedestal Spacer, 0.0313 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	In Stock	$9.10
PS-0.25-T Pedestal Spacer, 0.25 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	In Stock	$10.40

Description	Compatibility	Avail.	Price
HVM-05r Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys	UNIVERSAL	Contact Us	$209.00
HVM-1i Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32	IMPERIAL	In Stock	$199.00
9810-3 Mirror Mount, Stability, Top Adjust, 0.5 in., 2 Knobs	UNIVERSAL	In Stock	$424.00
9814-6 Mirror Mount, Stability, Top Adjust, 1.0 in., 2 Knobs	UNIVERSAL	In Stock	$505.00
