Many common spectroscopic measurements require coordinated operation of a detection instrument and light source, as well as data acquisition and mathematical operations. Not all users have the time to program custom routines to fit their applications, so TracQ Basic™ provides the solution: combining customizable instrument control, data acquisition and processing in a user-friendly software package. TracQ Basic is compatible with Oriel® monochromators and many common detection instruments.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
TRACQ-BASIC Spectroscopy Software, TracQ Basic, Version 6.9 |
6 Weeks
|
$1,045.00 |
|

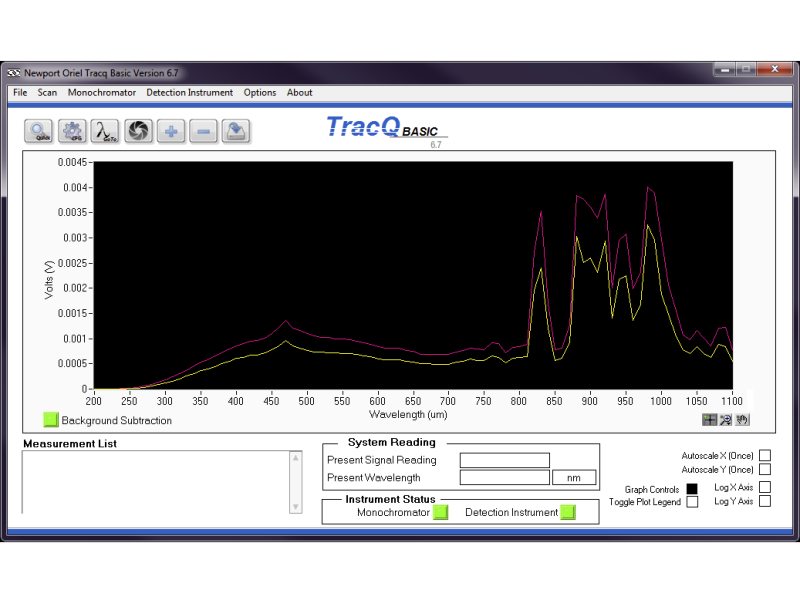

TracQ Basic integrates Oriel monochromators and spectrographs with various detection instruments. Software prompts guide users through the measurement process. Instruments are controlled and scan parameters are set up through simple, intuitive dialog boxes. The front panel of the software allows users to monitor the instrument status, present wavelength, signal reading and the selected wavelength units. The Oriel TracQ Basic software is an instrument control package that includes data acquisition and processing. TracQ Basic allows users to acquire spectroscopic measurement data quickly and easily, without requiring any programming knowledge. TracQ Basic is true radiometry software, which enables users to acquire basic signal vs. wavelength measurements or use the built-in algorithms for spectroscopic measurements. Data acquisition and processing occur in real time. TracQ Basic includes many features, such as:

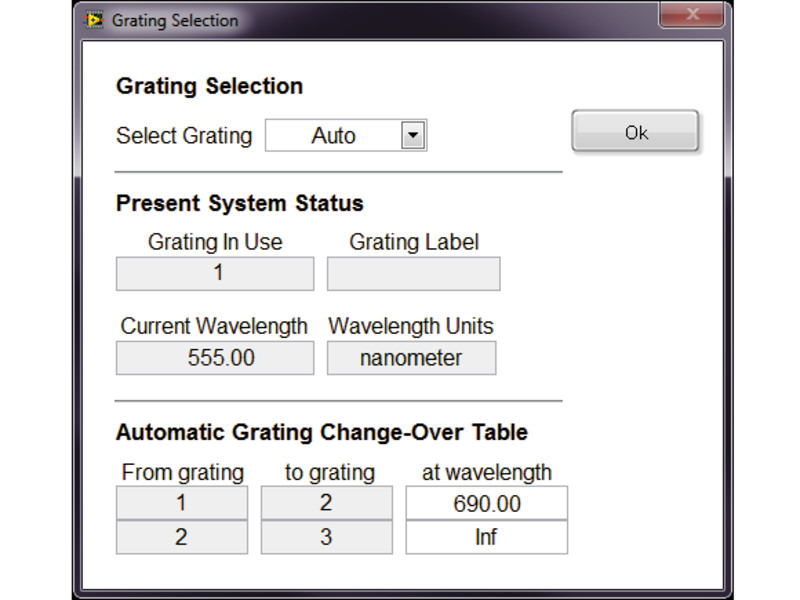

TracQ Basic works with compatible detection systems and Oriel monochromators/spectrographs via their USB, RS232 or IEEE-488 (GPIB) interfaces to automate the data acquisition process. The software commands switch gratings, filters and output ports at specified wavelengths or adjust motorized slit widths at each port, for instruments equipped with these features. Various detection instrument parameters, such as filtering, measurement mode, auto range, time constant and more are also controlled by TracQ Basic. The following is a list of measurements performed by TracQ Basic and some typical applications:
