| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
561-FH Bare Fiber Holder, 125 µm Fibers, 561 Series |
1 Week
|
$385.00 |
|
|||
|
561-FC Fiber Chuck Holder, 0.25 inch, 561 Series |
In Stock
|
$171.00 |
|
|||
|
561-RFC Fiber Chuck Rotation Mount, 561 Series |
In Stock
|
$157.00 |
|
|||
|
561-GM Gimbal Fiber Chuck Positioner, 561 Series, 3 Rotation Axis |
1 Week
|
$726.00 |
|
|||
|
561-FCH Connectorized Fiber Holder, FC, 561 Series |
In Stock
|
$238.00 |
|
|||
|
561-SCH Connectorized Fiber Holder, SC, 561 Series |
In Stock
|
$238.00 |
|
|||
|
561-LCH Connectorized Fiber Holder, LC, 561 Series |
In Stock
|
$239.00 |
|
|||
|
561-FCA3 Connectorized Fiber Holder, SMA, Rotation, 561 Series |
In Stock
|
$424.00 |
|
|||
|
561-FCA4 Connectorized Fiber Holder, FC, Rotation, 561 Series |
In Stock
|
$424.00 |
|
|||
|
561-FCA6 Connectorized Fiber Holder, ST, Rotation, 561 Series | $424.00 |
|
Our bare fiber holder 561-FH offers an improved design for 125 µm diameter bare fibers. The fiber is gently held in precision V-groove.
Our fiber chuck holder 561-FC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It mounts all Newport Fiber Chucks and Holders.

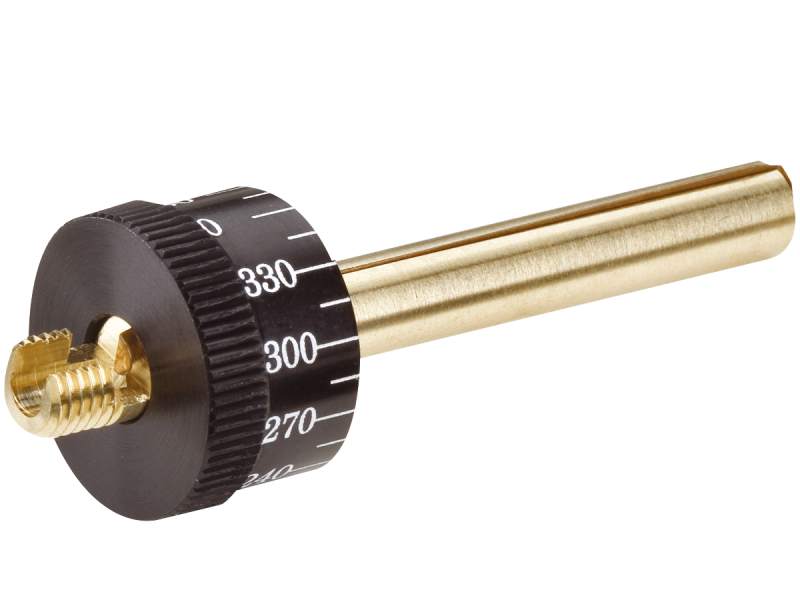

Our fiber chuck rotation mount 561-RFC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θx, and a sensitivity of 2°.
Our gimbal fiber chuck positioner 561-GM is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θX and tilt of ±5° in θYθZ with a Sensitivity of 2° in θX, 12 arc sec in θYθZ.

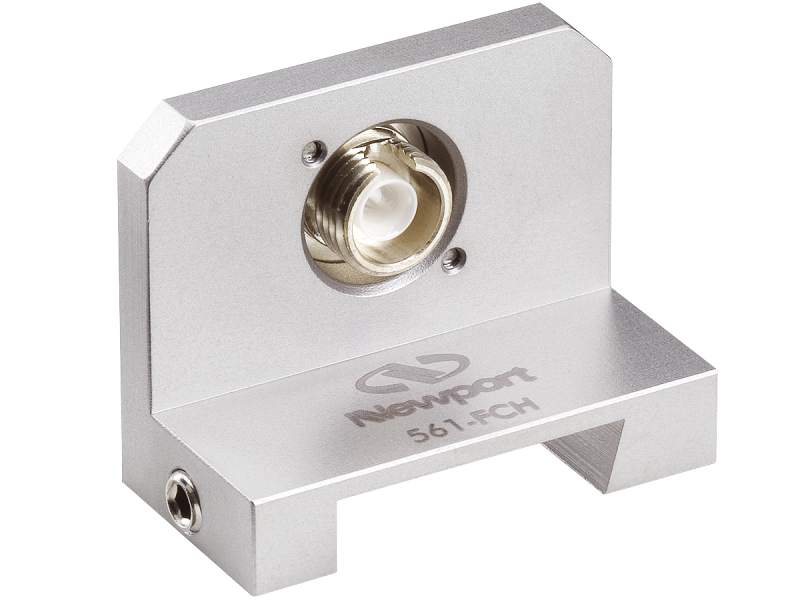

Our connectorized fiber holders 561-xCH are used to mount FC, SC, or LC connectorized fibers.
These connectorized fiber holders 561-FCAx allow fibers to be rotated 360° in the holder. They are compatible with SMA, FC, ST, or SC connectorized fibers.

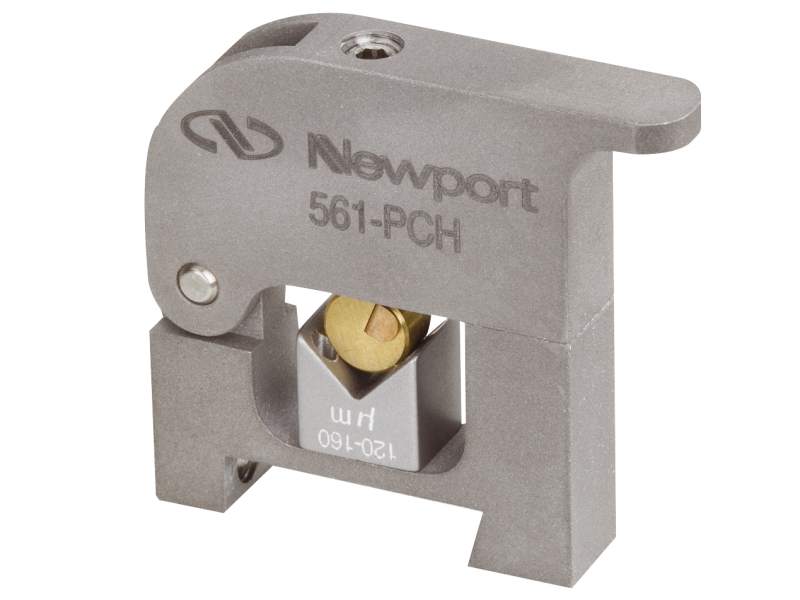

The 561-PCH(-M) mounts are designed to hold short lengths of Photonic Crystal Fiber. They have a V-groove accepts 120-160 µm diameter bare fibers or a small fiber chuck that accepts 80-200 µm diameter bare fibers.
Our module mount 561-MM accepts modules for holding ball lenses, GRIN lenses, fiber collimators, and fiber ferrules. Optics and devices are gently held.
Our V-groove modules 561-Vx are used for holding 1 to 3.25 mm diameter cylindrical devices like GRIN lenses, fiber collimators, and fiber ferrules. They are gently held in 561-MM module mount.
Ball lens modules 561-BLx are for holding 1, 2, or 3 mm diameter ball lenses. They are gently held in 561-MM module mount.
Gradient index lens mounts 561-GR and 561-GBM are used to mount GRIN lenses up to 4.5 mm diameter. Lenses held in a V-groove with a nylon-tipped setscrew.
Our objective lens mounts 561-OBJ and 561-OBM are used to mount microscope and laser diode objective lenses. They have standard 0.800-36 RMS thread.
Our vacuum waveguide mount 561-VH has one to eight vacuum ports that can be used to mount small to large devices. It requires a user supplied vacuum pump.
The universal module (M-)561-UM is used to mount custom component holders on the 561/562 rail.
Our 561-UST and 562-UST universal stands are a fixed platform to mount a component next to a positioning stage.

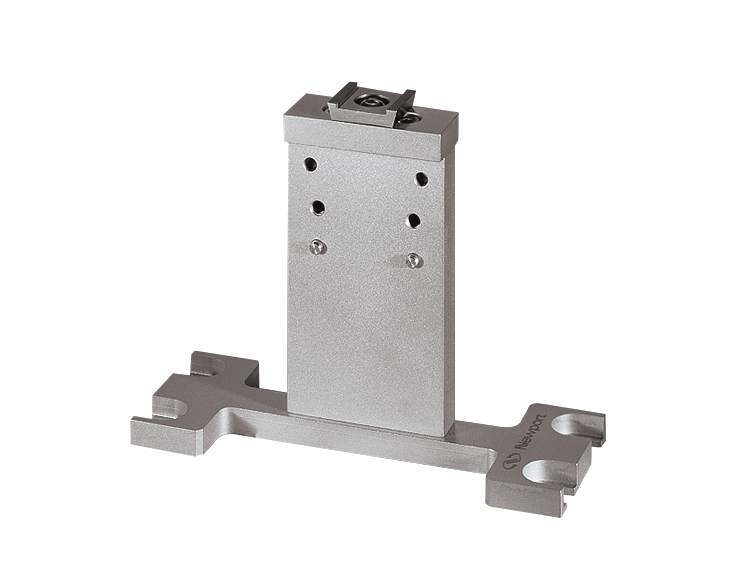

Our 561-TS and 562-TS T-Stands are a fixed platform to mount a component between two positioning stages.
Our 561-ADPT Height Adapter raises 561 stages to the height of 562 stages. This adapter can be used with 561D-XYZ and 561D-YZ stages.
The 56x-RAIL-x Dovetail Rails are used with 561 and 562 Series ULTRAlign positioning systems.
