| Models |
$260.00
In Stock
Product Series Overview
|
$100.00
In Stock
Product Series Overview
|
|---|---|---|
| Type | UV Sensor Card | UV Sensor Card |
| Wavelength Range | 200 - 400 nm | 200 - 400 nm |
| Sensor Size | 50 x 50 mm | 25.4 x 38.1 mm |
| Damage Threshold | 700 mW/cm2 | 700 mW/cm2 |
| Minimum Detectable Power | 80 µW/cm2 | 80 µW/cm2 |
| Peak Emission Wavelength | 650 nm / red | 640 nm / deep orange |
| Dimensions | 64 x 102 mm | 34 x 94 mm |
These viewing cards contain a phosphor-coated sensor area that emits clearly visible light when illuminated by UV sources. This allows for the easy location of UV beams and their focal point, even in the dark, and the visualization of spatial mode patterns.
The UV sensor cards features a protective polyester coating for durability and portability.

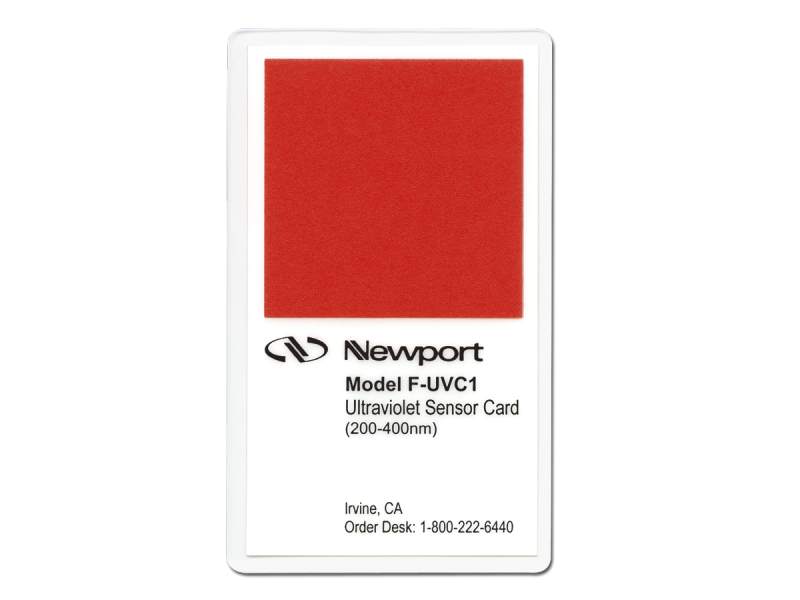

The larger F-UVC1 card has a 2 inch (50 mm) square sensor area for locating and analyzing light beams in the 200 to 400 nm wavelength range. These are also available in the smaller F-UVC1-S version.
