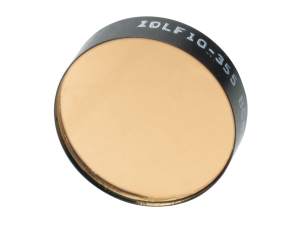

Argon-Gap™ UV Bandpass Filters

Show entries

Search:

Compare	Model	Center Wavelength	FWHM	Availability	Price	Brand
10BPF10-206 UV Bandpass Filter, 25.4 mm, 206±2 nm Center, 12±2 nm FWHM $378.00 6 Weeks	10BPF10-206 UV Bandpass Filter, 25.4 mm, 206±2 nm Center, 12±2 nm FWHM	206 nm	12±2 nm	6 Weeks	$378.00	Newport
10BPF10-214 UV Bandpass Filter, 25.4 mm, 214±3 nm Center, 11±3 nm FWHM $390.00 6 Weeks	10BPF10-214 UV Bandpass Filter, 25.4 mm, 214±3 nm Center, 11±3 nm FWHM	214 nm	11±3 nm	6 Weeks	$390.00	Newport
10BPF10-228 UV Bandpass Filter, 25.4 mm, 228±2 nm Center, 11±3 nm FWHM $378.00 6 Weeks	10BPF10-228 UV Bandpass Filter, 25.4 mm, 228±2 nm Center, 11±3 nm FWHM	228 nm	11±3 nm	6 Weeks	$378.00	Newport
10BPF10-232 UV Bandpass Filter, 25.4 mm, 232±2 nm Center, 11±3 nm FWHM $378.00 1 Week	10BPF10-232 UV Bandpass Filter, 25.4 mm, 232±2 nm Center, 11±3 nm FWHM	232 nm	11±3 nm	1 Week	$378.00	Newport
10BPF10-239 UV Bandpass Filter, 25.4 mm, 239±2 nm Center, 11±3 nm FWHM $378.00 Contact Us	10BPF10-239 UV Bandpass Filter, 25.4 mm, 239±2 nm Center, 11±3 nm FWHM	239 nm	11±3 nm	Contact Us	$378.00	Newport
10BPF10-250 UV Bandpass Filter, 25.4 mm, 250±3 nm Center, 11±3 nm FWHM $390.00 6 Weeks	10BPF10-250 UV Bandpass Filter, 25.4 mm, 250±3 nm Center, 11±3 nm FWHM	250 nm	11±3 nm	6 Weeks	$390.00	Newport
10BPF10-260 UV Bandpass Filter, 25.4 mm, 260±3 nm Center, 11±3 nm FWHM $390.00 In Stock	10BPF10-260 UV Bandpass Filter, 25.4 mm, 260±3 nm Center, 11±3 nm FWHM	260 nm	11±3 nm	In Stock	$390.00	Newport
10BPF10-265 UV Bandpass Filter, 25.4 mm, 265±2 nm Center, 12±2 nm FWHM $378.00 2 Weeks	10BPF10-265 UV Bandpass Filter, 25.4 mm, 265±2 nm Center, 12±2 nm FWHM	265 nm	12±2 nm	2 Weeks	$378.00	Newport

Showing 1 to 08 of 13 entries

Previous1 2Next

Show All

Specifications

Type

UV Bandpass Filter
Effective Index of Refraction

1.39
Size

Ø25.4 mm
Size Tolerance

+0/-0.5 mm
Thickness

5.1 mm
Surface Quality

80-50 scratch-dig

Minimum Peak Transmission

12%
Humidity Resistance

Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Clear Aperture

20.2 mm
Temperature Range

-50° to +100°C
Wavelength Shift with Temperature

0.01 to 0.02 nm/°C

Features

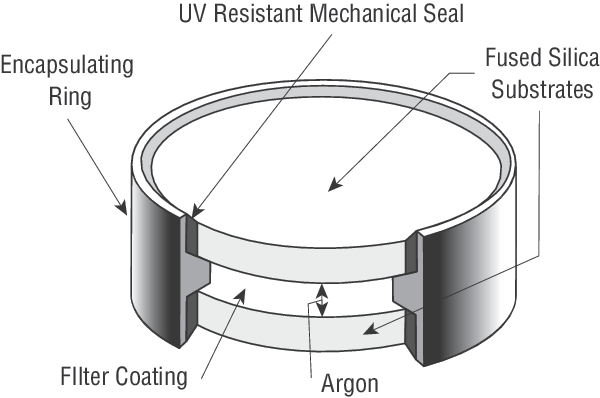

Argon-Gap Technology

Our UV band-pass filters in the 214 nm to 300 nm range are fabricated using our Argon-Gap Technology. These filters demonstrate superior spectral stability and field lifetime in demanding applications such as water purification and environmental monitoring. Argon-Gap technology employs a proprietary sealing process that eliminates sources of solarization by-products, such as epoxy sealants. Solarization by-products, which are created by the chemical breakdown of organic materials resulting from exposure to ultraviolet light, are a principal cause of premature failure of short-UV filters.

Transmittance Data Curve for 206 to 239 nm Models

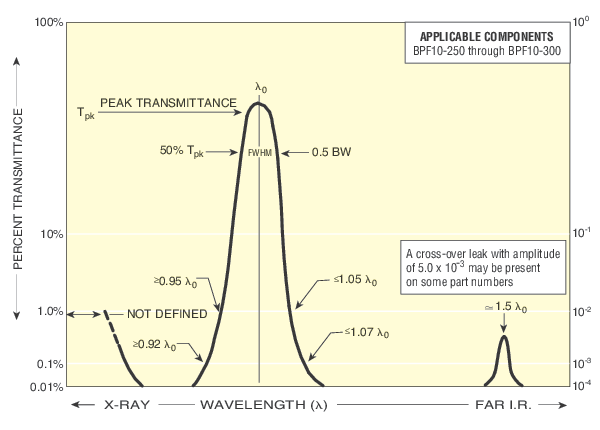

Transmittance Data Curve for 250 to 300 nm Models

Optical Filter Mounts

We offer a wide variety of optical filter mounts for securing and locating your optical filter. Popular types include:

Accessories

UV Bandpass Filters with Center Wavelength in 300-400 nm Region

Search:

Description	Compatibility	Avail.	Price
10BPF10-310 Bandpass Filter, 25.4 mm, 310±2 nm Center, 11±2 nm FWHM	UNIVERSAL	4 Weeks	$498.00
10BPF10-320 Bandpass Filter, 25.4 mm, 320±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$508.00
10BPF10-330 Bandpass Filter, 25.4 mm, 330±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$378.00
10BPF10-340 Bandpass Filter, 25.4 mm, 340±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$377.00
10BPF10-350 Bandpass Filter, 25.4 mm, 350±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$377.00
10BPF10-360 Bandpass Filter, 25.4 mm, 360±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$377.00
10BPF10-370 Bandpass Filter, 25.4 mm, 370±2 nm Center, 12±2 nm FWHM	UNIVERSAL	4 Weeks	$377.00
10BPF10-380 Bandpass Filter, 25.4 mm, 380±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$366.00
10BPF10-390 Bandpass Filter, 25.4 mm, 390±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$366.00
