UV Fused Silica Metallic Neutral Density Filters

Products
Features
Contact Us

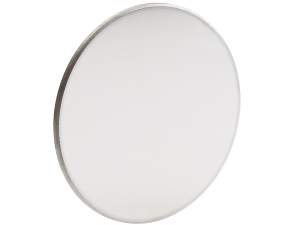

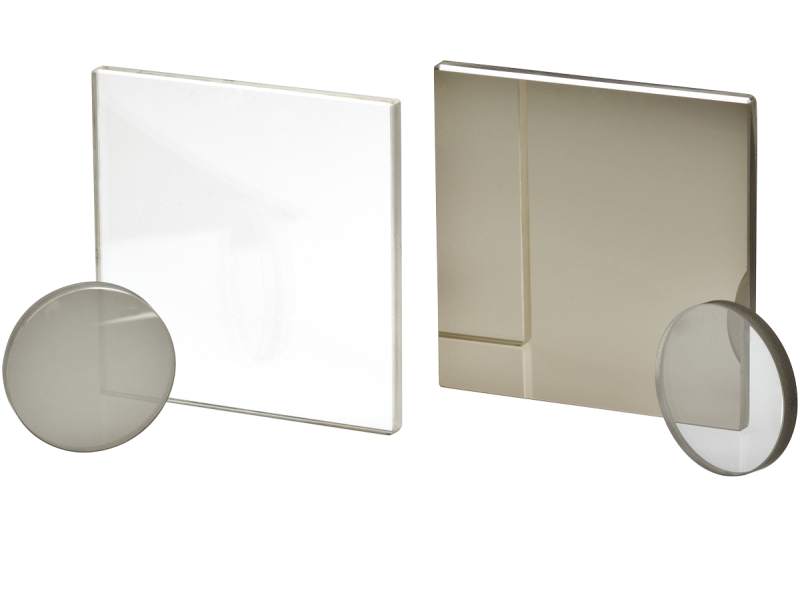

uv fused silica neutral density filters with round and square nd filter shown

Overview

Our metallic neutral density coatings provide broadband attenuation for lower power applications. The precision polished UV fused silica substrate, the filters may be used anywhere from 350 to 2000 nm.

Broadband attenuation from 350-2000 nm
Metallic neutral density coating
Low wavefront distortion
UV grade fused silica
For lower power applications
Available in convenient kits

See All Features

Products

Showing 32 of 32 total products

Compatibility:

Show entries

Search:

Compare	Model	Size	Optical Density	Optical Density Tolerance	Availability	Price	Brand
FRQ-ND003 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.03 OD at 632.8 nm $45.00 In Stock	FRQ-ND003 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.03 OD at 632.8 nm	Ø25.4 mm	0.03	±2.5% @ 632.8 nm	In Stock	$45.00	Newport
FRQ-ND01 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.1 OD at 632.8 nm $71.00 In Stock	FRQ-ND01 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.1 OD at 632.8 nm	Ø25.4 mm	0.1	±8% @ 632.8 nm	In Stock	$71.00	Newport
FRQ-ND02 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.2 OD at 632.8 nm $71.00 2 Weeks	FRQ-ND02 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.2 OD at 632.8 nm	Ø25.4 mm	0.2	±7% @ 632.8 nm	2 Weeks	$71.00	Newport
FRQ-ND03 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.3 OD at 632.8 nm $71.00 In Stock	FRQ-ND03 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.3 OD at 632.8 nm	Ø25.4 mm	0.3	±6% @ 632.8 nm	In Stock	$71.00	Newport
FRQ-ND04 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.4 OD at 632.8 nm $71.00 In Stock	FRQ-ND04 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.4 OD at 632.8 nm	Ø25.4 mm	0.4	±5% @ 632.8 nm	In Stock	$71.00	Newport
FRQ-ND05 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.5 OD at 632.8 nm $71.00 Contact Us	FRQ-ND05 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.5 OD at 632.8 nm	Ø25.4 mm	0.5	±4% @ 632.8 nm	Contact Us	$71.00	Newport
FRQ-ND06 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.6 OD at 632.8 nm $79.00 In Stock	FRQ-ND06 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.6 OD at 632.8 nm	Ø25.4 mm	0.6	±4% @ 632.8 nm	In Stock	$79.00	Newport
FRQ-ND07 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.7 OD at 632.8 nm $79.00 In Stock	FRQ-ND07 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.7 OD at 632.8 nm	Ø25.4 mm	0.7	±4% @ 632.8 nm	In Stock	$79.00	Newport
FRQ-ND08 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.8 OD at 632.8 nm $79.00 In Stock	FRQ-ND08 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.8 OD at 632.8 nm	Ø25.4 mm	0.8	±4% @ 632.8 nm	In Stock	$79.00	Newport
FRQ-ND09 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.9 OD at 632.8 nm $79.00 In Stock	FRQ-ND09 Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.9 OD at 632.8 nm	Ø25.4 mm	0.9	±4% @ 632.8 nm	In Stock	$79.00	Newport

Showing 1 to 010 of 32 entries

Previous1 2 3 4Next

Show All

Specifications

Wavelength Range

350 - 2000 nm
Angle of Incidence

0°
Material

UV grade fused silica or equivalent
Damage Threshold

30 W/cm² CW, typical; not recommended for pulsed laser use
Thickness

3.0 mm
Thickness Tolerance

±0.25 mm
Surface Quality

60-40 scratch-dig

Clear Aperture

≥central 80% of dimensions
Wedge

≤3 arc min
Chamfers

0.25–0.76 mm face width
Chamfers Angle Tolerance

45° ±15°
Durability

MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning

See How to Clean Optics

Features

Finely Control Beam Attenuation

These filters are available individually or in a set of eight. The set consists of a logical assortment of filters packaged in a protective hardwood case. All filters are permanently marked with the optical density and are shipped with a transmission curve. Filters from this product family may be used individually, or combined in series, to obtain any desired density from 0 to 7 in steps of 0.1 OD.

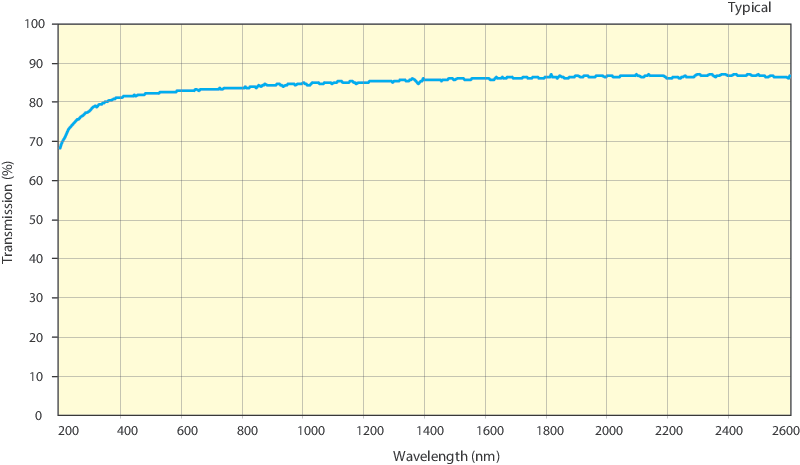

Typical curve. Actual transmission may vary.

Metallic Coating Properties

Due to the absorptive nature of the metallic coating, use with high-power lasers should be avoided. Power levels less than 30 W/cm² are advised.

For additional attenuators, see Laser Beam Attenuators

Additive Optical Densities

Optical density (OD) is given by the relationship: OD = -log(T) or T = 10^(-OD) where T is transmittance (0≤T≤1). Optical Density, unlike transmittance, is additive. When multiple filters are stacked, the total density is easily found by adding up the densities of each filter in the series. For example to achieve desired transmittance of 8%, first calculate the equivalent density (OD = -log(0.08) = 1.097 ≅ 1.1), then find a combination of filters that adds to the desired number, such as a combination of an OD1 filter and an OD0.1 filter.

UV Fused Silica Substrate

The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the ultraviolet to the near-infrared (350-2000nm). These precision polished substrates have flatness less than 1λ–2λ, resulting in low wavefront distortion for the transmitted beam. The polished second surface is uncoated.

Proper Orientation

To prevent unwanted interference from etalon effects, filters should be angled slightly with respect to the incident beam. To minimize back reflections, the filter should be oriented with the coated metallic surface facing the incident beam. Any light reflected from the uncoated second surface will pass through the metallic coating first, which will greatly attenuate unwanted back reflections.

Neutral Density Filter Kits

The FR-ND UV Fused Silica Metallic Neutral Density Filter Set includes eight, 25.4 mm diameter, UV Fused Silica Metallic ND Filters. The FS-ND UV Fused Silica Metallic Neutral Density Filter Set includes eight, 50.8 x 50.8 mm square, UV Fused Silica Metallic ND Filters. Each kit includes optical densities of 0.03, 0.1, 0.3, 0.5, 1.0, 2.0 and 3.0. Our metallic neutral density coatings provide broadband attenuation for lower power applications. The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the UV to NIR. Filter kits provide convenience and cost savings.
