Compare Model Drawings, CAD & Specs Type Core Diameter Numerical Aperture Transmittance Range Fiber Length Availability Price
uv-vis large core fiber optic cable model 78253
78252
$235.00
Contact Us
 78252 UV-VIS Large Core Fiber 200 µm 0.22 250 - 1150 nm 2 m
Contact Us
 $235.00
uv-vis large core fiber optic cable model 78253
78253
$220.00
In Stock
 78253 UV-VIS Large Core Fiber 400 µm 0.22 250 - 1150 nm 1 m
In Stock
 $220.00
78254
$270.00
Contact Us
 78254 UV-VIS Large Core Fiber 400 µm 0.22 250 - 1150 nm 2 m
Contact Us
 $270.00
uv-vis large core fiber optic cable model 78253
78256
$240.00
In Stock
 78256 VIS-NIR Large Core Fiber 200 µm 0.22 400 - 2200 nm 2 m
In Stock
 $240.00
uv-vis large core fiber optic cable model 78253
78257
$300.00
In Stock
 78257 VIS-NIR Large Core Fiber 400 µm 0.22 400 - 2200 nm 1 m
In Stock
 $300.00
uv-vis large core fiber optic cable model 78253
78258
$305.00
78258 UV-NIR Large Core Fiber 400 µm 0.22 400 - 2200 nm 2 m $305.00
78259
$300.00
In Stock
 78259 UV-NIR Large Core Fiber 600 µm 0.22 400 - 2200 nm 1 m
In Stock
 $300.00
78260
$375.00
Contact Us
 78260 UV-NIR Large Core Fiber 600 µm 0.22 400 - 2200 nm 2 m
Contact Us
 $375.00
78277
$365.00
4 Weeks
 78277 UV-VIS Large Core Fiber 1000 µm 0.22 250 - 1150 nm 1 m
4 Weeks
 $365.00
78300
$360.00
In Stock
 78300 UV-NIR Large Core Fiber 800 µm 0.22 400 - 2200 nm 1 m
In Stock
 $360.00
78301
$585.00
Contact Us
 78301 UV-NIR Large Core Fiber 800 µm 0.22 400 - 2200 nm 2 m
Contact Us
 $585.00
78302
$445.00
In Stock
 78302 UV-NIR Large Core Fiber 1000 µm 0.22 400 - 2200 nm 1 m
In Stock
 $445.00
78303
$755.00
Contact Us
 78303 UV-NIR Large Core Fiber 1000 µm 0.22 400 - 2200 nm 2 m
Contact Us
 $755.00
78367
$230.00
In Stock
 78367 UV-VIS Large Core Fiber 600 µm 0.22 250 - 1150 nm 1 m
In Stock
 $230.00
78368
$355.00
4 Weeks
 78368 UV-VIS Large Core Fiber 600 µm 0.22 250 - 1150 nm 2 m
4 Weeks
 $355.00

Features

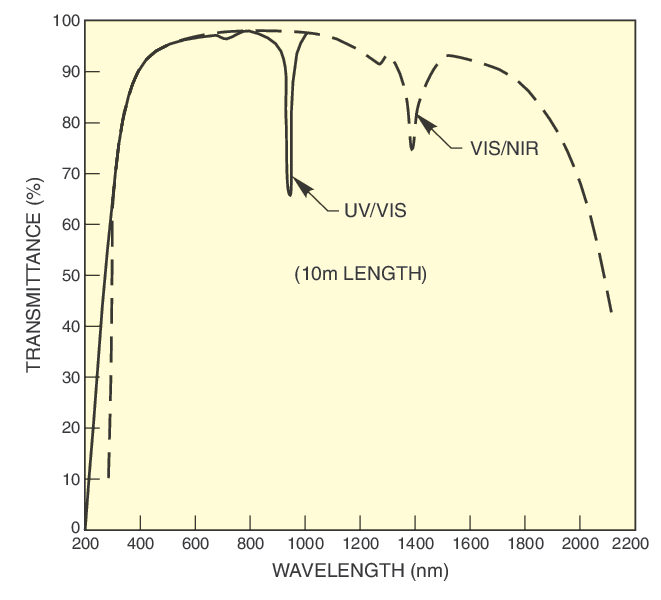

Two Different Transmittance Ranges Available

Two different materials are used in the core construction of these light guides to offer two different transmittance ranges. UV/VIS, or ultraviolet to visible fibers have a useable wavelength range of 250 to 1150 nm. VIS/NIR, or visible to near-infrared fibers are suitable for wavelength transmittance from 400 to 2100 nm.

High Damage Threshold

In addition to high transmittance, these fibers have a high damage threshold to input light. For a clean input surface the damage threshold is 100 kW cm-2 in the NIR or 10 J cm-2 for ≥1 ns pulses, for wavelengths above 360 nm.
