The all-steel UZS Series of vertical stages offers the most compact design and allows for unobstructed access to the load from any direction. It is also the most economical alternative to other motorized vertical stages.
| Models |
$7,383.00
10 Weeks
Product Series Overview
|
$6,600.00
10 Weeks
Product Series Overview
|
|---|---|---|
| Travel Range | 4.5 mm | 4.5 mm |
| Maximum Speed | 4 mm/s | 2 mm/s |
| Centered Load Capacity | 30 N | 30 N |
| Minimum Incremental Motion | 0.20 µm | 0.20 µm |
| Accuracy, Typical | ±0.35 µm | ±0.35 µm |
| Bi-directional Repeatability, Typical | ±0.4 µm | ±0.5 µm |
| Uni-directional Repeatability, Typical | ±0.25 µm | ±0.25 µm |
| Drive Screw Pitch | 0.8 mm | 0.8 mm |
| Encoder Resolution | 0.05 µm | |
| Limit Switches | Optical | Optical |
| Origin | Optical, centered | Optical, centered |
| Origin Repeatability | ±1 µm | ±2 µm |
| Cable Length | 3 m | 3 m |
| Connectors | DB15 Male | DB15 Male |
| Pitch, Typical | ±37 µrad | ±37 µrad |
| Compliance in Pitch | 100 µrad/Nm | 100 µrad/Nm |
| Compliance in Roll | 80 µrad/Nm | 80 µrad/Nm |
| Thread Type | M4 | M4 |
| Weight | 2.8 kg | 2.8 kg |
| MTBF | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) |
| RoHS |
A full steel body allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability and high load capacity.

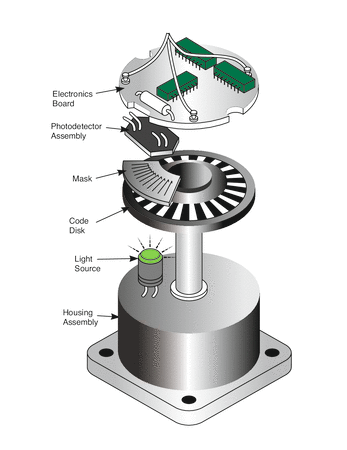

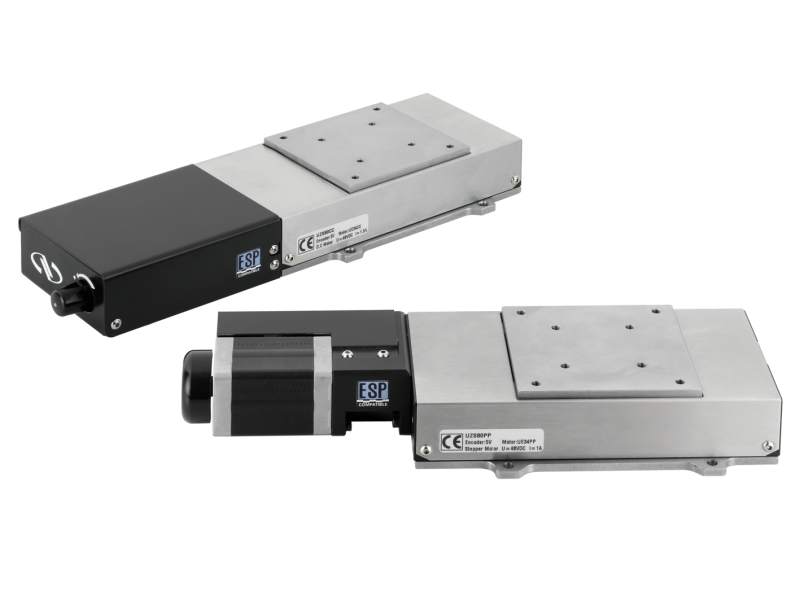

In order to ensure consistent operation under high loads, the UZS80CC with DC motor is equipped with a precision leadscrew and a 4,000 cts/rev rotary encoder, producing sub-micron MIM performance. The UZS80PP utilizes an open-loop stepper motor with high micro-stepping capability, resulting in sub-micron MIM.
The UZS is an ESP-compatible stage. When connected to a Newport controller, it is quickly recognized and its operating parameters are configured without the need for user input. This Plug and Play feature is not only transparent to the use, but it also ensures the safe operation of the stage.

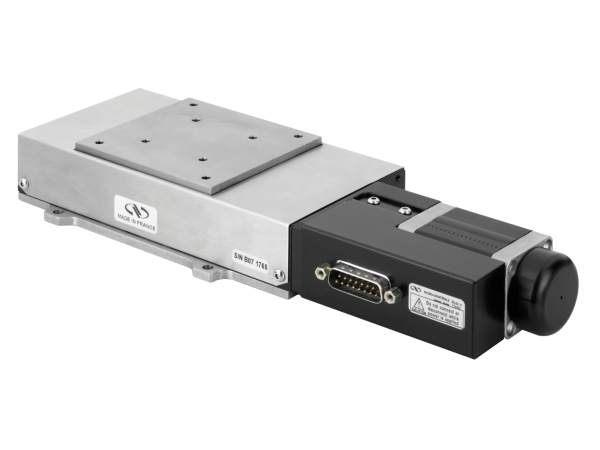

With a height of less than 40 mm and footprint of about 261 x 81 mm, the UZS highlights a small footprint and lowest profile out of any vertical stage. The lower-profile platform design also allows for unobstructed access to the load from any direction.
When compared to the other compact vertical linear stages with unobstructed load access, the UZS is the lowest in price.
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed.
Compatible motion controllers for the UZS stages are:

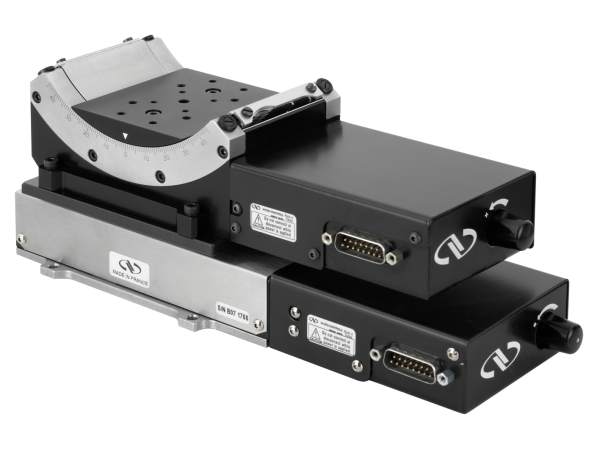

The UZS80CC is compatible with the
Product Series Overview
$1,382.00
In Stock
Product Series Overview
The maximum power consumption of the UZS80CC stage is 40 W, and the UZS80PP stage is 20 W.
