Motorized Rotation Stage Selection Guide

Motorized rotation stages are a set of precision positioning products designed and built over many decades of experience in providing solutions to research and academia to industry and defense markets. Applications include semiconductor wafer inspection or scribing, metrology, micro-robotics, sensor testing, disk texturing, optics positioning like polarizers, waveplates, etc. The Newport rotation stages offering over 100 model numbers to choose from, ranging from the direct drive, direct read, high rotation speed RGV100BL-S Rotation Stage, to the multi-use, compact CONEX-PR50CC Rotation Stage with Integrated Controller. Metric and vacuum versions are available and if required, multiple axis designs, OEM or custom solutions may be quoted.

Selecting a Motorized Rotation Stage

See Motorized Rotation Stages to shop or browse all of our standard models, or select a product family below for more information. We also offer Manual Rotation Stages.

Large Rotary Stage Selection

Search:

Series	Minimum Incremental Motion (°)	Bi-directional Repeatability, Guaranteed (°)	Absolute Accuracy, Guaranteed (°)	Maximum Speed (°/s)	Wobble, Guaranteed (µrad)	Normal Load Capacity (Cz) (N)

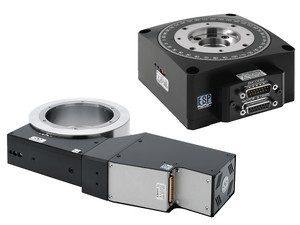

RGV Series High-Speed Precision Direct Drive Rotation Stage	0.00004 - 0.00011	0.0002 - 0.0011	0.01	720 - 1000	20 - 40	100 - 2700
RV Series High-Performance DC Motor Rotation Stages (Folded Version)	HAT, HAHLT: 0.0001 RVS80CC: 0.00025 All Others: 0.001	HAT, HAHLT: 0.0012 RVS80CC: 0.003 All Others: 0.004	HAT, HAHLT: 0.005 RVS80CC: 0.015 All Others: 0.01	16 - 80	2 - 20	900 - 6500
RV Series High-Performance Stepper Motor Rotation Stages (Folded Version)	RVS80PP: 0.0002 All Others: 0.001	RVS80PP: 0.007 All Others: 0.004	RVS80PP: 0.02 All Others: 0.01	16 - 80	2 - 20	900 - 6500
URS Series Precision DC Motor Rotation Stages (Stepper Motor Version)	URS50BPP: 0.0005 URS50BCC: 0.001 Other BPP: 0.00022 Other BCC: 0.002	URS50BPP: 0.006 Other BPP: 0.02 All BCC: 0.006	URS50BPP: 0.05 Other BPP: 0.03 URS50BCC: 0.04 Other BCC: 0.023	20 - 80	50	100 - 300
URB100CC High-Speed Belt-Driven DC Servo Rotation Stage	0.02	0.165	0.2	720	50	100
RVU Series High Angular Stiffness Brushless DC Rotation Stages	HAHS: 0.0002 HS: 0.001	HAHS: 0.0012 HS: 0.004	HAHS: 0.005 HS: 0.01	40	16	4000 - 6500
ZVR Series Integrated Vertical and DC Motor Rotation Stage (Stepper Motor Version)	ZVR-PP: 0.0002 ZVR-PC: 0.002	ZVR-PP: 0.013 ZVR-PC: 0.007	ZVR-PP: 0.035 (On-Axis) ZVR-PC: 0.030 (On-Axis)	ZVR-PP: 40 ZVR-PC: 80	80	100

Showing 1 to 7 of 7 entries

Small Rotary Stage Selection

Search:

Series	Minimum Incremental Motion (°)	Bi-directional Repeatability, Guaranteed (°)	Absolute Accuracy, Guaranteed (°)	Maximum Speed (°/s)	Wobble, Guaranteed (µrad)	Normal Load Capacity (Cz) (N)
PR50 & SR50 Series Compact DC Servo Rotation Stages (Stepper Motor Version)	SR50: 0.004 PR50: 0.02	SR50: 0.05 PR50: 0.15	SR50: 0.06 PR50: 0.1	4, 20	100	10, 30
Agilis™ Series Piezo Motor Driven Rotation Stage	5 µrad	NA	NA	2	100	2
Picomotor Piezo Rotation Mounts	<0.2	NA	NA	1-2	NA	NA
Closed Loop Picomotor Piezo Rotation Mount	0.2	NA	NA	1-2	NA	NA

Showing 1 to 4 of 4 entries

Goniometric Cradle Stage Selection

Search:

	Series	Minimum Incremental Motion (°)	Bi-directional Repeatability, Guaranteed (°)	Absolute Accuracy, Guaranteed (°)	Maximum Speed (°/s)	Wobble, Guaranteed (µrad)	Normal Load Capacity (Cz) (N)

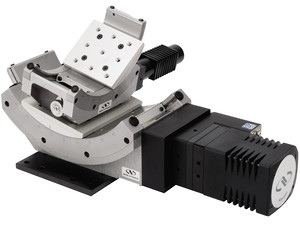

	BG Series Goniometric Cradles	BGS50CC BGS80CC: 0.0005 BGS50PP BGSS80PP: 0.0002 BGM120 BGM160 BGM200: 0.002	BGS50CC: 0.013 BGS50PP: 0.016 BGS80CC: 0.003 BGS80PP: 0.005 BGM120/160/200: 0.024	BGS50CC BGS80PP: 0.06 BGS50PP: 0.07 BGS80CC: 0.05 BGM120/160/200: 0.05	2 - 20	200	20 - 500

Showing 1 to 1 of 1 entries

Rotary Stage with Integrated Controller Selection

Search:

Integrated Stages & Controllers	Minimum Incremental Motion (°)	Bi-directional Repeatability, Guaranteed (°)	Absolute Accuracy, Guaranteed (°)	Maximum Speed (°/s)	Wobble, Guaranteed (µrad)	Normal Load Capacity (Cz) (N)
Rotation Stages with CONEX-CC Controller	(CONEX-) URS50BCC: 0.001 SR50CC: 0.004 PR50CC: 0.02	0.05 - 3	0.06 - 0.10	4 - 120	100-600	4 - 30
Piezo Rotation Stages with CONEX-AGP Controller	(CONEX-) AG-PR100P: 0.001	0.003	0.08	1.5	100	2
DC Servo Goniometer with CONEX-CC Controller	(CONEX-) BGS50CC: 0.0005	0.05 - 3	0.06 - 0.10	4 - 120	100-600	4 - 30
Piezo Goniometric Cradles with CONEX-AGP Controller	(CONEX-) AG-GON-UP: 0.00032 AG-GON-LP: 0.00025	N/A	N/A	0.45 0.33	N/A	3.5
Intelligent Stepper Motor Rotary Stages	FCR100: 0.00025	0.012 or ± 0.006	0.04 or ± 0.02	20	50 or ± 25	300
