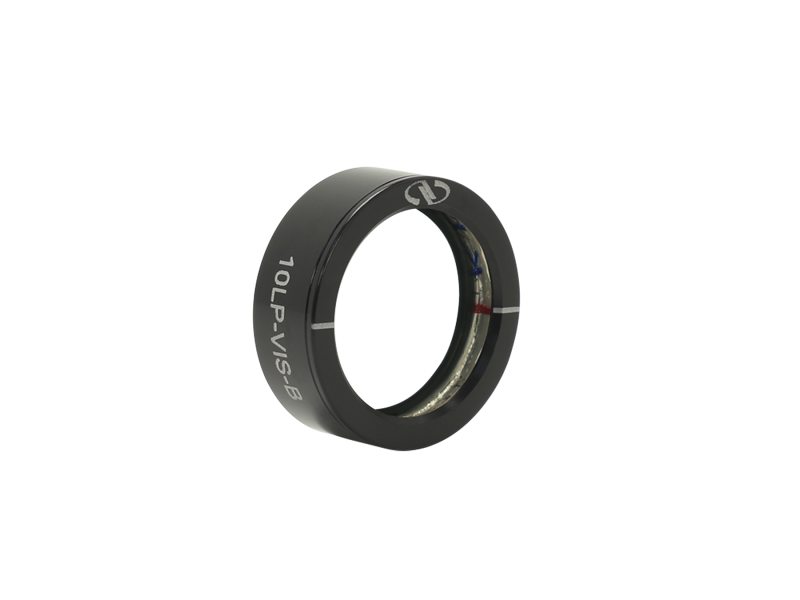

The 10LP-VIS-B Precision Linear Polarizers is constructed by laminating a polymer polarizing film between two high-precision glass windows. Each window has a high-efficiency 430 to 670 nm broadband VIS antireflection coating. The assembly is mounted in a 1 inch (25.4 mm) diameter black anodized aluminum housing for protection and provides a 17.8 mm clear aperture. The transmission axis is clearly marked. The result is a linear polarizer with high transmission and low wavefront distortion that are easy to mount.
Visible Polarizer
Our visible polarizers are recommended for 430-670 nm wavelength applications, and use a Grade A N-BK7 substrate.
Black Anodized Aluminum Housings
The polarizer assembly is mounted in a black anodized aluminum housing for protection, with the transmission axis clearly marked. The result is linear polarizers with high transmission and low wavefront distortion. The standard outer diameters are convenient for mounting into Newport rotary mounts.
Precision Linear Polarizers
Our Precision Linear Polarizers consist of dichroic sheet polymer polarizer material that is laminated between high quality glass substrates. In the visible wavelength range, these precision optics offer peak-to-valley transmitted wavefront distortion of <λ/5. They feature high extinction ratios, surface quality of 40-20 scratch-dig and offer wide angular acceptance.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
RM25A Optic Rotation Mount, 25.4 mm, 2° Graduations | UNIVERSAL |
In Stock
|
$116.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
GM-1RA Optic Rotation Mount, Gimbal Tip-Tilt, 25.4 mm, 100 TPI | UNIVERSAL |
In Stock
|
$582.00 |
|
|||
| |
RM25A Optic Rotation Mount, 25.4 mm, 2° Graduations | UNIVERSAL |
In Stock
|
$116.00 |
|
|||
 |
UPA-RM1A Rotation Mount, Polarizer, 1 inch, For U100-A Mount | UNIVERSAL |
In Stock
|
$74.00 |
|
|||
 |
LH1-1R Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount | UNIVERSAL |
In Stock
|
$30.00 |
|
|||
 |
RSP-1T Optic Rotation Mount, 25.4 mm, Fine Adjust Knob, 8-32 and M4 | UNIVERSAL |
In Stock
|
$291.00 |
|
