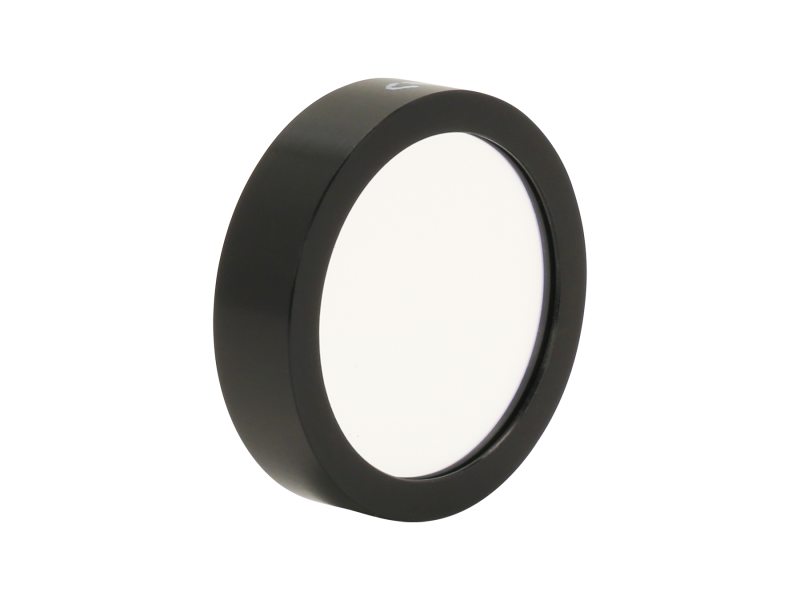

Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM
  • Type
    Mercury Line Filters
  • Center Wavelength
    404.7 nm
  • Center Wavelength Tolerance
    ±2 nm
  • FWHM
    10±2 nm
  • Effective Index of Refraction
    2
  • Size
    Ø25.4 mm
  • Size Tolerance
    +0 mm/-0.8 mm
  • Thickness
    0.20 in.
  • Surface Quality
    80-50 scratch-dig
  • Minimum Peak Transmission
    40%
  • Cleaning
    See How to Clean Optics
