The 1580-B DC-Coupled VIS Fiber-Optic Receiver is ideal for applications that require high sensitivity, high speed, and clean responses. Its offers clean responses and 30-ps rise times making it well-suited for time-domain characterization of 10-Gbit/s components. Its high gain and well-behaved frequency response also make it useful for frequency-domain measurements. This receiver has a 62.5 μm core multimode fiber input and consists of a GaAs PIN photodiode followed by a GaAs HBT amplifier. It is specifically designed to cover the 780-870 nm wavelength range with a maximum conversion gain of -450 V/W at 850 nm, and it is particularly well-suited for applications requiring high responsivity at 850 nm such as in Datacom component testing.
An external power supply, which must be purchased separately, is required – we recommend our
Product Series Overview
$59.00
In Stock
Product Series Overview
$103.00
In Stock
Product Series Overview

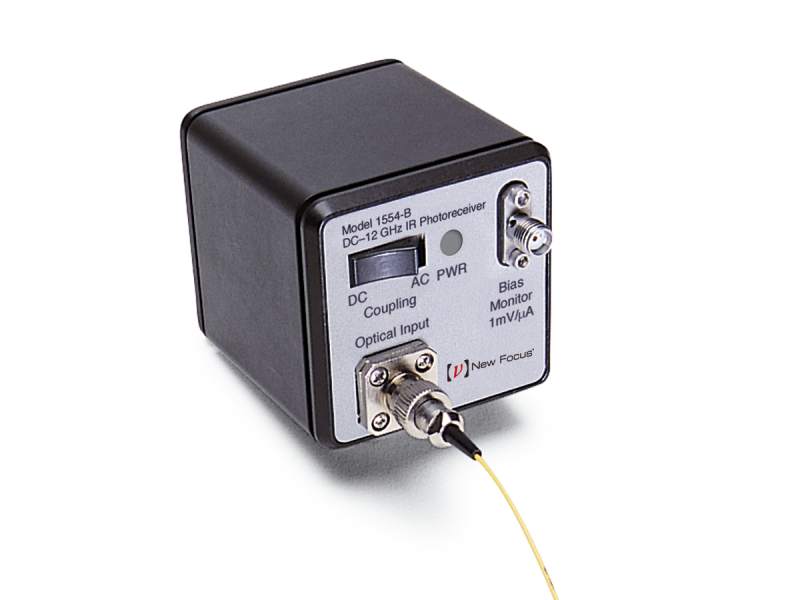

The -B versions of these photoreceivers include a DC-coupled option so they give response all the way down to DC. At the touch of a switch, you can select the traditional AC-coupled output with a 10-kHz cutoff or DC-coupled mode.
The clean response and 32 ps rise time make these devices especially well-suited for time-domain characterization of 10-Gbit/s components. The high gain and gradual, well-behaved roll-off of the frequency response also make them useful for frequency-domain measurements.
Applications for these photoreceivers include:
