5214-A ND Filter Wheel

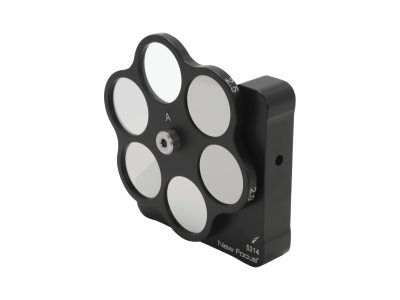

The 5214-A wheels contain a set of neutral-density (ND) filters mounted in a single easy-to-use unit. The Model 5214 is a single-wheel version. Each wheel includes six 1 in. diameter filters. The filter positions are mechanically indexed for precise positioning and the filters are made with Inconel metallic coatings on glass substrate. These wheels are metric compatible. The filters included with this set are the 5230

, 5235

, 5240

, 5241

, 5242

and 5243

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

25.4 mm
Number of Filters

6
Filter Type

Neutral Density
Mechanism

Epoxy Mounted

Mounting Threads

8-32 (M4) Thru
Clear Aperture

24.1 mm
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Filter Shape

Round
Filter Diameter

25.4 mm
Number of Filters

6
Filter Type

Neutral Density
Mechanism

Epoxy Mounted

Mounting Threads

8-32 (M4) Thru
Clear Aperture

24.1 mm
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

5214b-Drawing (99.7 kB, PDF)
