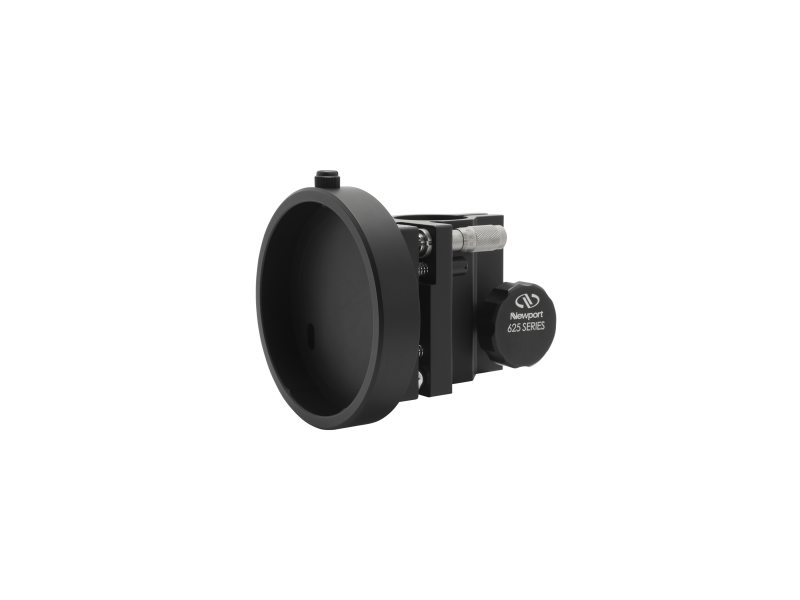

The 625-RC4-M Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 101.6 mm diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two SM Micrometers for a ±10° adjustment range.
41Optical Post, 7 in. Height, 1.5 in. Diameter, 1/4-20 Thread
IMPERIAL
In Stock
$146.00
A-4-3Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)
UNIVERSAL
In Stock
$137.00
40Optical Post, 14 in. Height, 1.5 in. Diameter, 1/4-20 Thread
IMPERIAL
In Stock
$160.00
45Damped Optical Post, Mounting Base, 14 in. Height, 0.29 in. CLR
UNIVERSAL
In Stock
$288.00
625-RC4-M - Drawings & CAD
Additional CAD file downloads are not available for this product.
625-RC4-M - Drawings
Additional drawings are not available for this product.
