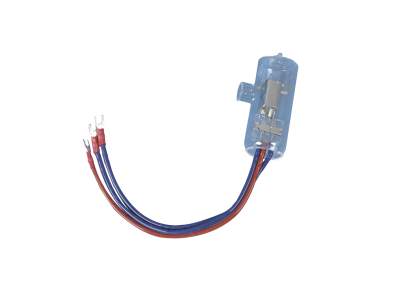

The 63162 is a 30 watt deuterium lamp which produces high intensity ultraviolet (UV) radiation over the full spectrum from 160 to 400 nm. Arc size is 1.0 mm diameter. Emissions in the visible and infrared are negligible. This lamp is designed to mount inside the 60000 Q series lamp housing and operate at 300 mA using the 68942 power supply. Lamp life average 2000 hours. Deuterium lamps are an ideal light source for UV spectroscopy.
Additional CAD file downloads are not available for this product.
63162 - Drawings
Additional drawings are not available for this product.
63162
Sign In
Request Resource
In order to provide better service and products, please provide the following brief information.
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Deuterium Lamp, 30W, High Uniformity, 1 mm Arc Diameter, Full Spectrum
