7123 Flange Mounted Cell

Flange Mounted Cell, 1.0 in. Diameter Optics, 1.5 Inch Flange

Model: 7123

$95.00

3 Weeks

Compare

Add to List

Product Series Overview

Flanged Lens Holders and Cells

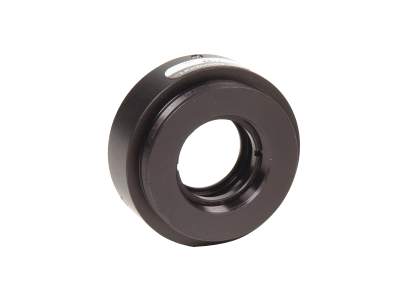

The 7123 Flange Mounted Cell is a simple mount with a 1.5 Inch Series female-flange on one end and a male-flange on the other. It holds 1 inch (25.4 mm) diameter optics up to 0.38 inch (9.5 mm) thick, and has a clear aperture of 0.8 inch (20 mm). It is ideal for holding optical accessories at the input or output of our light sources, monochromators and other flanged instruments. This set screw model couples to male-flanged components via three set screws and is light tight.

Specifications

Technical Specs

Type

Flange Mounted Cell
Flange Series Size

1.5 Inch
Flange Type

Set Screw
Diameter

25.4 mm

Thread Type

1/4-20
Clear Aperture

20 mm
Maximum Thickness

9.5 mm

Type

Flange Mounted Cell
Flange Series Size

1.5 Inch
Flange Type

Set Screw
Diameter

25.4 mm

Thread Type

1/4-20
Clear Aperture

20 mm
Maximum Thickness

9.5 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPT-pg18-18b (611.6 kB, PDF)
