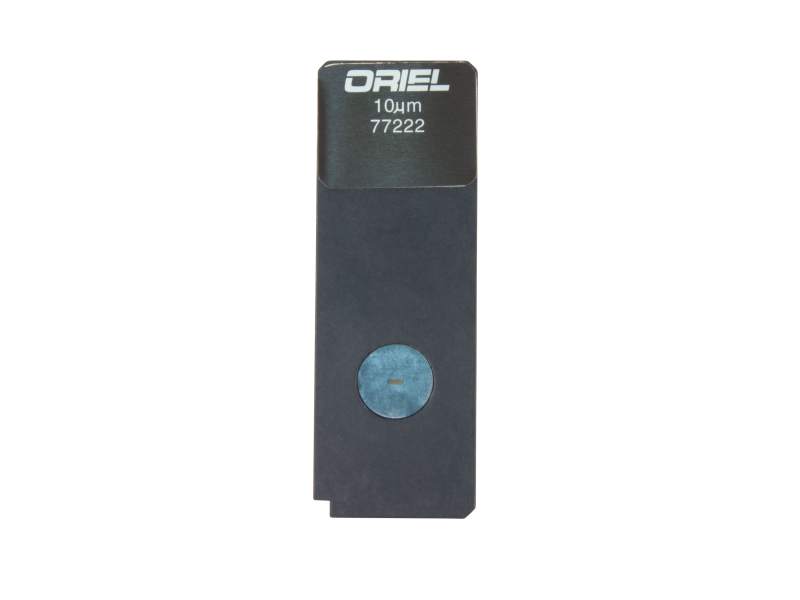

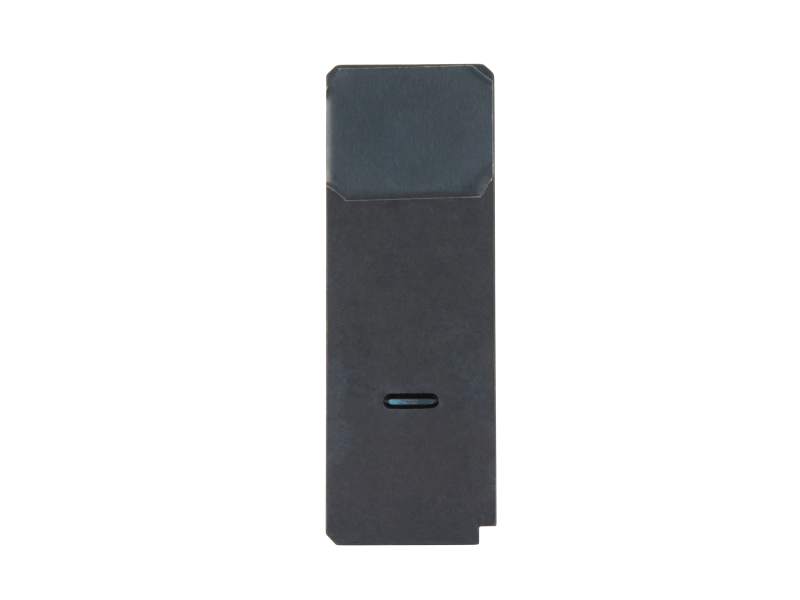

The 77222 Fixed Slit has a 0.010 mm width and 2 mm height and is the most economical choice if only a few slit sizes are required. They also offer the greatest accuracy and repeatability. This precision slit is fixed onto a machined block that slides into the 77294 Fixed Slit Holder. The Fixed Slit Holder is ordered with the Oriel® monochromator or spectrograph and is installed on all ports of the instrument. Slits are ordered separately, and should be the same size for all ports.
Order two slits for the Cornerstone 130 Monochromator. Order two slits for a Cornerstone 260 Monochromator with a single output port, and order three slits for a Cornerstone 260 with dual output ports. Order two slits for the MS260i and MS257 Monochromator or Spectrograph with a single output port, and order three slits for models with dual output ports.
Note that slits may be interchanged without affecting the instrument's calibration. However, the Fixed Slit Holder should never be removed from the monochromator or spectrograph.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
77218 Fixed Slit, 120 µm Width, 18 mm Height | UNIVERSAL |
4 Weeks
|
$200.00 |
|
|||
 |
77212 Fixed Slit, 3.16 mm Width, 18 mm Height | UNIVERSAL |
3 Weeks
|
$200.00 |
|
|||
 |
77211 Fixed Slit, 6.32 mm Width, 18 mm Height | UNIVERSAL |
3 Weeks
|
$200.00 |
|
|||
 |
77220 Fixed Slit, 25 µm Width, 3 mm Height | UNIVERSAL |
In Stock
|
$470.00 |
|
|||
 |
77213 Fixed Slit, 1.56 mm Width, 18 mm Height | UNIVERSAL | $190.00 |
|
||||
 |
77214 Fixed Slit, 1240 µm Width, 18 mm Height | UNIVERSAL |
In Stock
|
$200.00 |
|
|||
 |
77219 Fixed Slit, 50 µm Width, 6 mm Height | UNIVERSAL |
4 Weeks
|
$340.00 |
|
|||
 |
77730 Fixed Slit, 200 μm Width, 3 mm Height | UNIVERSAL | $200.00 |
|
||||
 |
77221 Fixed Slit, 50 µm Width, 3 mm Height | UNIVERSAL | $355.00 |
|
||||
 |
77728 Fixed Slit, 100 μm Width, 3 mm Height | UNIVERSAL |
5 Weeks
|
$200.00 |
|
|||
 |
77216 Fixed Slit, 600 µm Width, 18 mm Height | UNIVERSAL |
1 Week
|
$205.00 |
|
|||
 |
77215 Fixed Slit, 760 µm Width, 18 mm Height | UNIVERSAL |
In Stock
|
$190.00 |
|
|||
 |
77217 Fixed Slit, 280 µm Width, 18 mm Height | UNIVERSAL |
1 Week
|
$205.00 |
|
|||
 |
77734 Fixed Slit, 2000 µm Width, 20 mm Height | UNIVERSAL | $330.00 |
|
||||
 |
77725 Fixed Slit, 25 μm Width, 6 mm Height | UNIVERSAL | $460.00 |
|
||||
 |
77735 Fixed Slit, 5000 µm Width, 20 mm Height | UNIVERSAL | $200.00 |
|
||||
 |
77733 Fixed Slit, 1000 µm Width, 15 mm Height | UNIVERSAL | $200.00 |
|
||||
 |
77729 Fixed Slit, 100 µm Width, 10 mm Height | UNIVERSAL | $200.00 |
|
||||
 |
77731 Fixed Slit, 200 µm Width, 10 mm Height | UNIVERSAL |
3 Weeks
|
$200.00 |
|
|||
 |
77732 Fixed Slit, 500 μm Width, 15 mm Height | UNIVERSAL |
5 Weeks
|
$200.00 |
|
|||
 |
77736 Fixed Slit, 5000 µm Width, 15 mm Height | UNIVERSAL |
4 Weeks
|
$200.00 |
|
