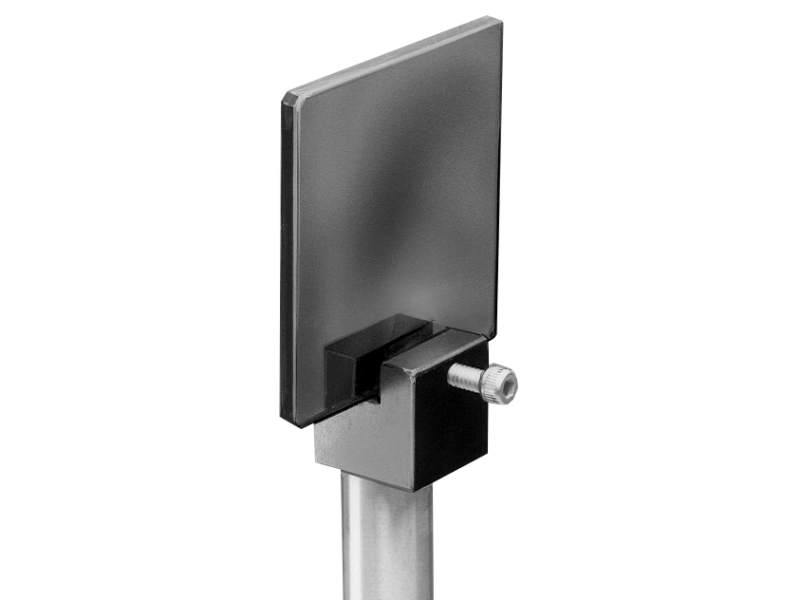

The 77614 Miniature Vise is a very simple, low cost holder for flat optical components like filters or optics. It holds circular or square optics of any dimension up to 0.25 inch (6.4 mm) thick. Simply slide the optic into the grove and tighten the thumbscrew; a 2 inch (50.8 mm) optical post is included.
Additional CAD file downloads are not available for this product.
77614 - Drawings
Additional drawings are not available for this product.
77614
