9771 Platform Mirror Mount

Platform Mirror Mount, 0.5 or 1.0 in., 2 Knob Adjustment, 8-32 Thread

Model: 9771

$93.00

In Stock

Compare

Add to List

Product Series Overview

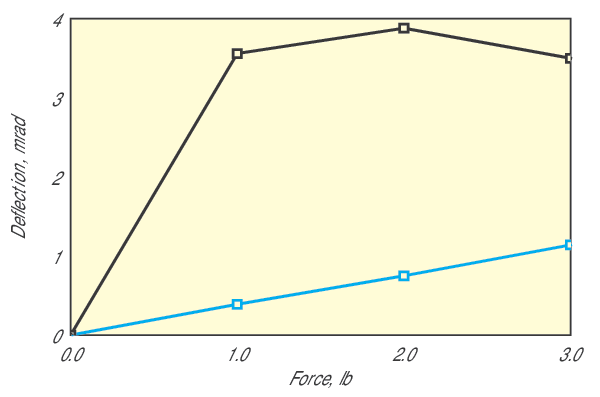

Miniature Platform Mirror Mounts

The 9771 EC Platform Mirror Mount is ideal for applications where space is tight, and you want an optic mount that is also easy on your wallet. You get a 3/8 in. thick frame, our high-quality 6-80 knob adjustment screws, and 8-32 threaded holes that allow vertical mounting for holding 1/2 in. or 1 in. mirrors or horizontal mounting for holding cubes. For odd sizes, you can bond the optic to the front plate.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

12.7 mm, 25.4 mm
Platform Size

25.4 x 25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy

Sensitivity

11 arc sec
Angular Range

±4°
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Platform Thread

2-56 THD
Mounting Holes

8-32 THD

Mechanism

Kinematic
Optic Diameter

12.7 mm, 25.4 mm
Platform Size

25.4 x 25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy

Sensitivity

11 arc sec
Angular Range

±4°
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Platform Thread

2-56 THD
Mounting Holes

8-32 THD

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9771b-Drawing (108.8 kB, PDF)
