9807 Mirror Mount

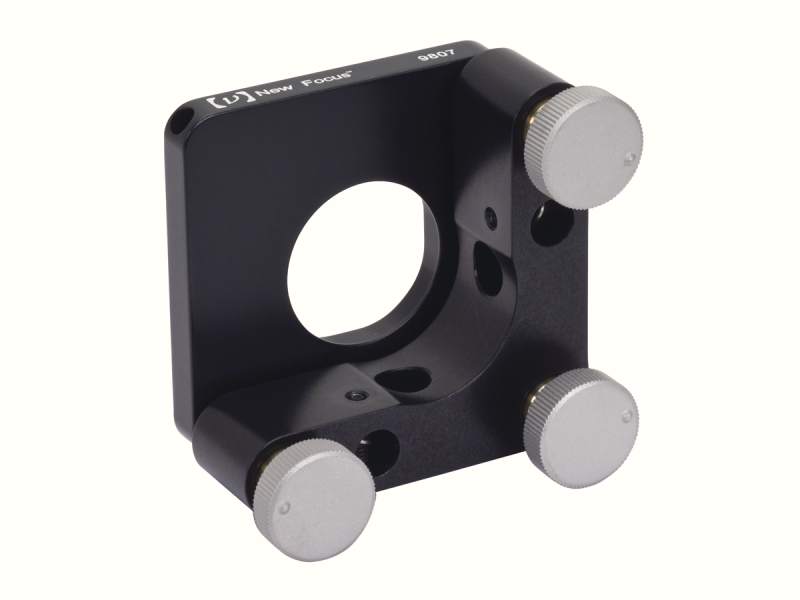

Mirror Mount, Classic, Center, 1.0 in., 3 Knobs

Model: 9807

$144.00

In Stock

Compare

Add to List

Product Series Overview

New Focus Mirror Mounts

The 9807 Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9807f-Drawing (94.1 kB, PDF)
