Mirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys

Mirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys

Model: 9807-K

$147.00

In Stock

Compare

Add to List

Product Series Overview

New Focus Hex-Driven Mirror Mounts

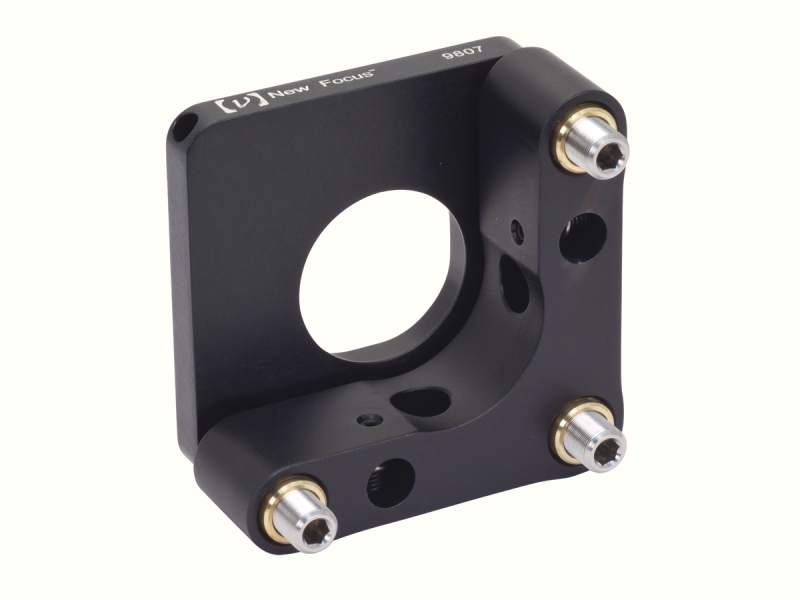

The 9807-K Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our proprietary precision Allen-key actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Allen-Key, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Allen-Key, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9807f-Drawing (94.1 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock	$36.00
		BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL		In Stock	$39.00
		SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL		In Stock	$74.00
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$20.00
		TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL		In Stock	$42.00

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9807-L Mirror Mount, Classic, Center, 1.0 in., 3 Locking Allen-Keys	UNIVERSAL		In Stock	$230.00
		9807-C Mirror Mount, Classic, Center, 1.0 in., 3 Micrometers	UNIVERSAL		In Stock	$525.00
