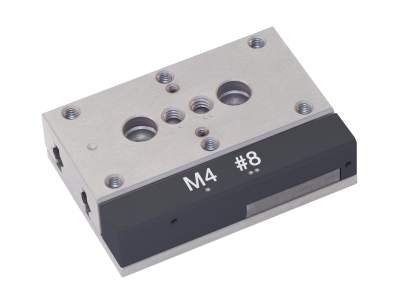

The Agilis™ AG-LS25-27 is a high precision, miniature, piezo motor driven linear stage. The piezo motor is directly coupled to the moving carriage, with no intermediate mechanisms, but held in for true set and forget long term stability. The AG-LS25-27 features 27 mm travel, 100nm MIM and with the supplied M2 screws and washers, is compatible with the SDS25 and DS25 manual linear stages. Precision motion is achieved by calibrated, pre-stressed linear ball bearings. The thermally matched stainless steel design and precision manufactured bearing surfaces provide ripple-free, low friction linear travel and angular deviations better than 200 μrad in any axis. Use with either the Agilis AG-UC2 handheld, AG-UC8 or AG-UC8PC controllers.
Agilis™ piezo motor linear stages can be configured as XY, XZ, or XYZ stage stacks. You can use the
$104.00
In Stock
Product Series Overview
The Agilis proprietary piezo technology provides 50 nm incremental motion capability, making them ideal for ultra-sensitive alignments and adjustments.
The Agilis piezo motor is directly coupled to the moving carriage with no intermediate screw or gear, avoiding problems with coupling in drivetrain. When idle, the holding force of the motor locks the position for true set-and-forget long-term stability.
The thermally matched stainless steel design and precision manufactured bearing surfaces of the Agilis linear stage provide ripple-free, low friction linear travel and angular deviations better than 100 µrad in any axis.
