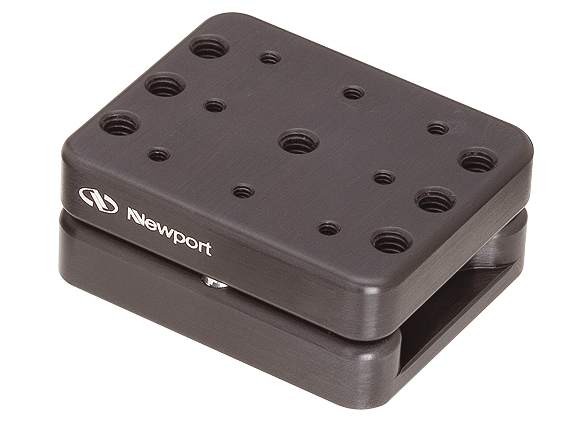

The BK Series of kinematic bases has magnetically coupled top and bottom plates, providing repeatability of less than 100 μrad. The BK-2A kinematic base has a 2.0 x 2.45 inch top and bottom plates. Kinematic bases allow you to mount, remove, and replace optical components with very high repeatability. These bases are especially timesaving in setups where optical elements must frequently be interchanged, or when reference elements must occasionally be inserted in an optical path. The BK-2A-T is an extra top plate that may be ordered separately.
BK-Series bases utilize four high-strength magnets to securely couple the top and bottom plates together. The magnetically-coupled plates are easy to release by simply tilting the mounted component. The edges are chamfered to reduce the risk of pinching your fingers when coupling the top and bottom plates.
Three polished steel balls in the bottom plate register with a hardened cone, groove, and flat in the top plate so the two plates relocate precisely every time. These bases are especially time-saving in setups where optical elements must frequently be interchanged, or when reference elements must occasionally be inserted in an optical path.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
BK-1A Kinematic Base, Magnetic, 1 inch Square | IMPERIAL |
In Stock
|
$117.00 |
|
|||
 |
BK-3A Kinematic Base, Magnetic, 3 inch Square | IMPERIAL |
In Stock
|
$232.00 |
|
|||
 |
BK-2A-B Bottom Plate, For (M-)BK-2A Kinematic Base | UNIVERSAL |
In Stock
|
$89.00 |
|
|||
 |
9805-K Mirror Mount, Commercial, Center, 1.0 in., 2 Locking Allen-Keys | UNIVERSAL |
2 Weeks
|
$151.00 |
|
|||
 |
PX-2 Optical Post, Slotted Base, 2.0 in. Height, 1.0 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$36.00 |
|
|||
 |
BK-3A-B Bottom Plate, For (M-)BK-3A Kinematic Base | UNIVERSAL |
In Stock
|
$179.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
| |
BK-1A Kinematic Base, Magnetic, 1 inch Square | IMPERIAL |
In Stock
|
$117.00 |
|
|||
 |
BUP-2 Universal Base, Freely Rotating Disk, Eccentric Clearance Slot | UNIVERSAL |
In Stock
|
$122.00 |
|
|||
| |
BK-3A Kinematic Base, Magnetic, 3 inch Square | IMPERIAL |
In Stock
|
$232.00 |
|
|||
 |
BKL-4 Kinematic Base, Locking, 4 inch x 4.5 inch | IMPERIAL |
In Stock
|
$331.00 |
|
|||
 |
110 Kinematic Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread | IMPERIAL |
In Stock
|
$271.00 |
|
|||
 |
LNS-1 Optic Inserter Stage, 8-32 Thread | IMPERIAL |
In Stock
|
$528.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
BC-5 Base Clamp, Adjustable-Height, Short, 1/4-20 Tapped Holes | IMPERIAL |
In Stock
|
$13.10 |
|
|||
 |
SDS40 Manual Linear Stage, 0.63 in. Travel, Ball Bearings, 6-32 & 1/4-20 Threads | IMPERIAL |
In Stock
|
$683.00 |
|
|||
 |
B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage | IMPERIAL |
In Stock
|
$48.00 |
|
|||
| |
BK-2A-B Bottom Plate, For (M-)BK-2A Kinematic Base | UNIVERSAL |
In Stock
|
$89.00 |
|
|||
 |
BK-2A-T Top Plate, For BK-2A Kinematic Base | IMPERIAL |
In Stock
|
$75.00 |
|
