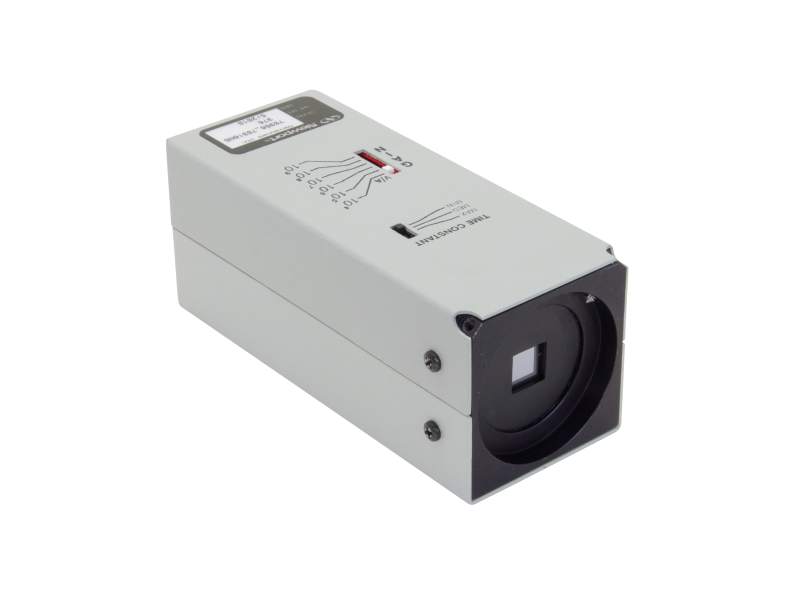

The DET-L-SIUV-R-C Silicon Photovoltaic Detector for LIDA™ houses an unbiased, photovoltaic mode operated photodiode coupled to a trans impedance amplifier. The internal 10 mm x 10 mm active area, UV-enhanced Silicon photodiode and low-noise trans impedance amplifier provides for excellent light detection performance over 200-1100 nm, with the trans impedance amplifier providing a gain of 104 V/A to 109 V/A over 0.01 Hz-100 kHz frequencies. This detector includes a NIST traceable calibration, making it suitable for absolute measurements over its entire sensitivity range.
This flange mounted photodiode sensor provides a BNC connector for signal output. The 1.5 inch female flange simplifies the integration to one of our many Oriel light sources and monochromators.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
70018 Cable, BNC Low Noise, 6 Foot (1.8 Meter) Length | UNIVERSAL |
In Stock
|
$140.00 |
|
|||
 |
CBL-70054-LIDA Cable, Oriel Amplified Detector to LIDA-SRS-KIT | UNIVERSAL |
In Stock
|
$310.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
DET-L-SIUV-T-C UV-Si Photodiode, Amplified, 200-1100 nm, 1-stage TE cooled, 5 mm, NIST | IMPERIAL |
In Stock
|
$4,140.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
LIDA-SRS-KIT-120V Radiometry System, Lock-In Digital Amplifier, 100 to 120 VAC | UNIVERSAL | $16,615.00 |
|
