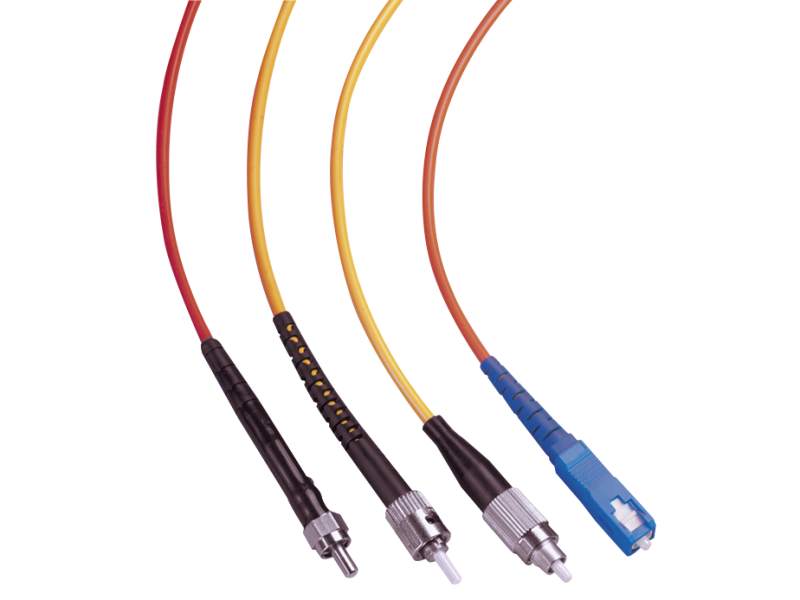

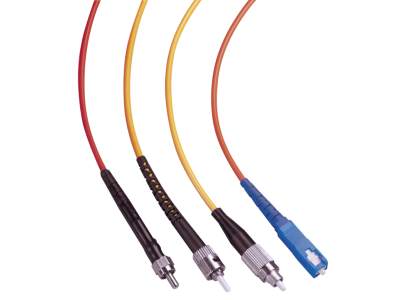

Optical Fiber Patch Cable, Custom Configurator

Newport’s F-PATCH-CUSTOM Optical Fiber Patch Cable Configurator allows users the ability to customize almost any of Newport's Optical Fiber into a useful Optical Fiber Patch Cable. Certain connector options may not be available, depending on the optical fiber part number.

Add F-PATCH-CUSTOM to your Shopping Cart and Request a Quote from the Cart.  Specify the fiber type and length of fiber and connectors you would like in the Special Instructions section of the Quote Request page.

Users can customize:

Fiber Type (Select from almost all of Newport's available optical fiber)

Fiber Length (1-1000 meters)

Input Connector (FC, SC, ST, SMA, LC, 2.5mm Ferrule. Note that SC, ST, and LC connectors are not available for fiber with the core diameter of 100 μm or larger.)

Output Connector (FC, SC, ST, SMA, LC, 2.5mm Ferrule. Note that SC, ST, and LC connectors are not available for fiber with the core diameter of 100 μm or larger.)

Jacketing ≤5 meters only, 900 μm loose tube, PVC jacket, SS Armored)

It is recommended for users to determine the model number of the optical fiber they wish to configure before requesting a quote.
