Fiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, ST/UPC Connectors (RoHS Pending).

Fiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, ST/UPC Connectors (RoHS Pending).

Model: F-SMF-28-C-1ST

$12.50

In Stock

Compare

Add to List

Product Series Overview

Standard Singlemode Patch Cables

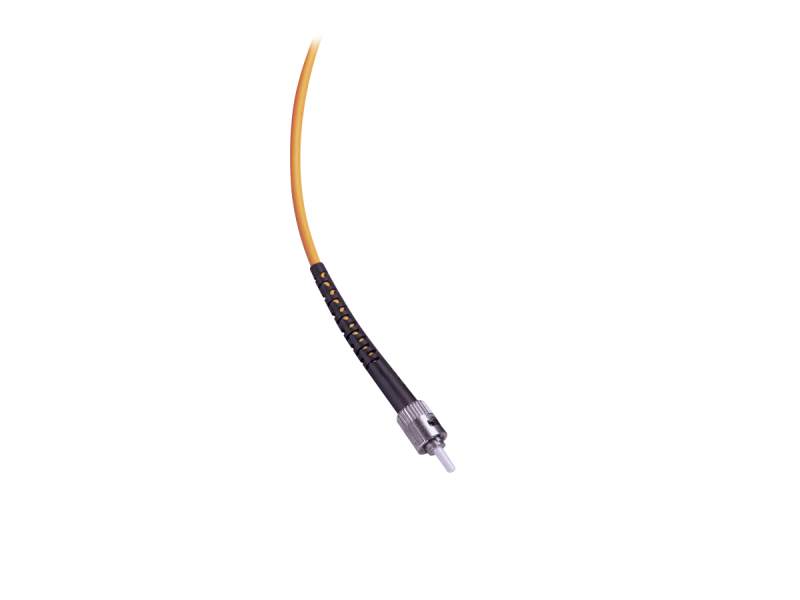

The F-SMF-28-C-1ST Single Mode Fiber Patch Cord is 1 meter in length and has ST/PC connectors at both ends. It uses Corning's F-SMF-28 single mode fiber for operation at 1310/1550 nm. This fiber patch cord has a 900 μm jacket surrounded by a layer of Aramid yarn for extra protection. A 3 mm outer PVC cable jacket provides additional environmental protection.

Specifications

Technical Specs

Index Profile

Step
Fiber Type

Singlemode
Fiber Jacket

Yes
Mode Field Diameter, Nominal

8.8 - 9.6 µm @1310 nm, 9.9 - 10.9 µm @1550 nm
Core Diameter

8.2 µm
Cladding Diameter

125 ±1 µm
Coating Diameter

245 ±5 µm
Cable Diameter

3.0 mm

Fiber Connector

ST/UPC
Fiber Length

1 m
Operating Wavelength

1310/1550 nm
Cut-off Wavelength

1220-1300 nm
Buffer Coating Material

Dual Acrylate
Numerical Aperture

0.14
Proof Test

100 kpsi

Index Profile

Step
Fiber Type

Singlemode
Fiber Jacket

Yes
Mode Field Diameter, Nominal

8.8 - 9.6 µm @1310 nm, 9.9 - 10.9 µm @1550 nm
Core Diameter

8.2 µm
Cladding Diameter

125 ±1 µm
Coating Diameter

245 ±5 µm
Cable Diameter

3.0 mm

Fiber Connector

ST/UPC
Fiber Length

1 m
Operating Wavelength

1310/1550 nm
Cut-off Wavelength

1220-1300 nm
Buffer Coating Material

Dual Acrylate
Numerical Aperture

0.14
Proof Test

100 kpsi
